Steps
1. Using the Phillips #2 screwdriver, remove the screws that secure the right ear handle.

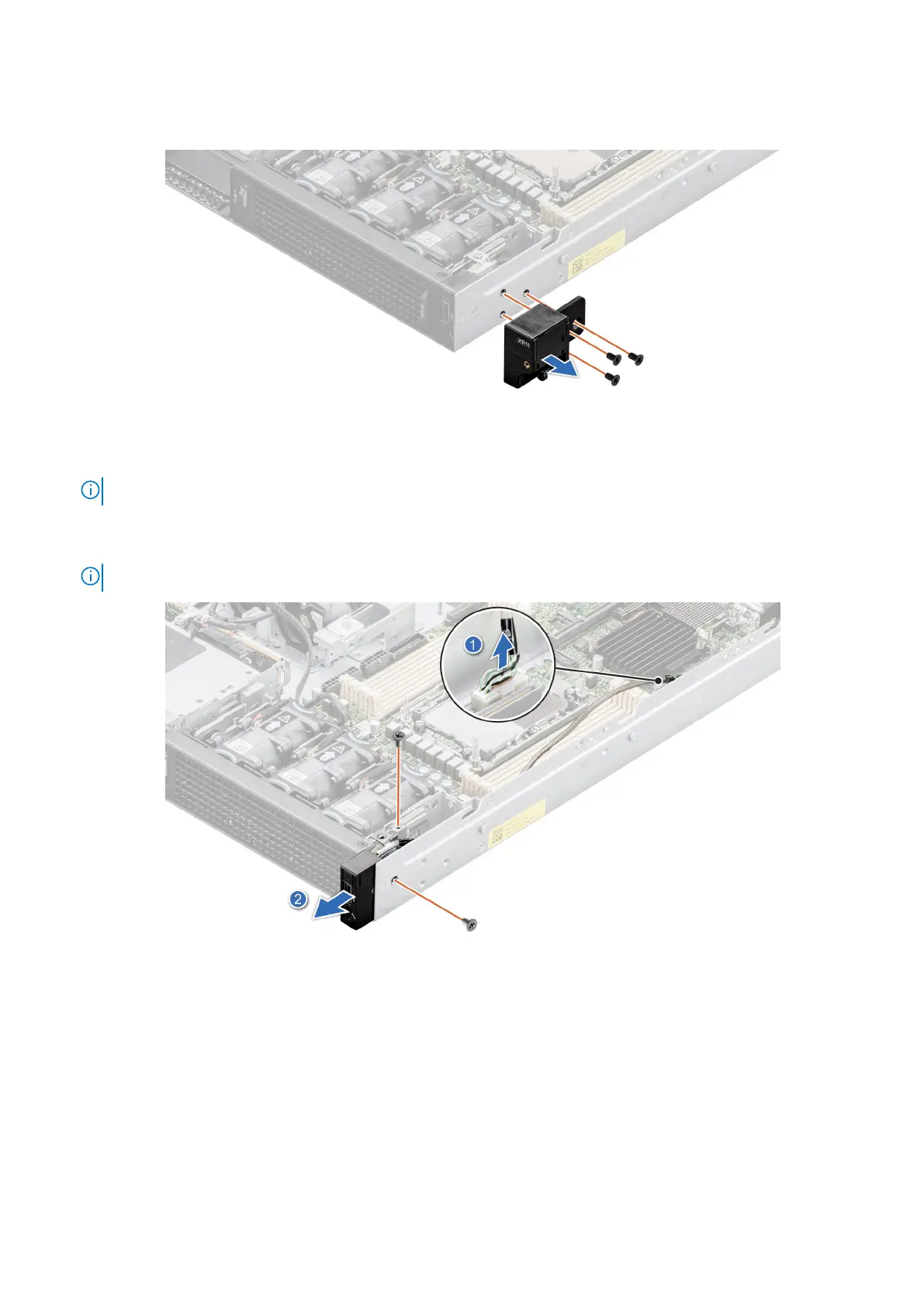

Figure 99. Removing the right ear handle for Rear Accessed configuration
2. Disconnect the power button control panel cable from the system board connector and remove the cable from cable clip.
NOTE: Observe the routing of the cable as you remove it from the system.
3. Using the Torx #8 screwdriver, remove the screws that secure the right control panel assembly.
4. Hold the power button control panel assembly and remove the control panel along with the cable from the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Figure 100. Removing the power button control panel for Rear Accessed configuration
Next steps
Replace the power button control panel.
100
Installing and removing system components
