Removing a power supply unit
Prerequisites
CAUTION: The system requires one power supply unit (PSU) for normal operation. On power-redundant
systems, remove and replace only one PSU at a time in a system that is powered on.
1. Follow the safety guidelines listed in the Safety instructions.
2. Disconnect the power cable from the power outlet and from the Power Supply Unit (PSU) you intend to remove.
3. Remove the cable from the strap on the PSU handle.
4. Unlatch and lift the optional cable management arm if it interferes with the PSU removal.
For information about the cable management arm, see the system’s rack documentation at https://www.dell.com/
poweredgemanuals.
NOTE: The PowerEdge XR11 has two types of Power Supply Units (PSUs). The PSUs with black straps are designed for
Rear Accessed configuration while the PSUs with blue straps are designed for Front Accessed configuration.
Steps
Press the orange release latch, and holding the PSU handle slide the PSU out of the PSU bay.

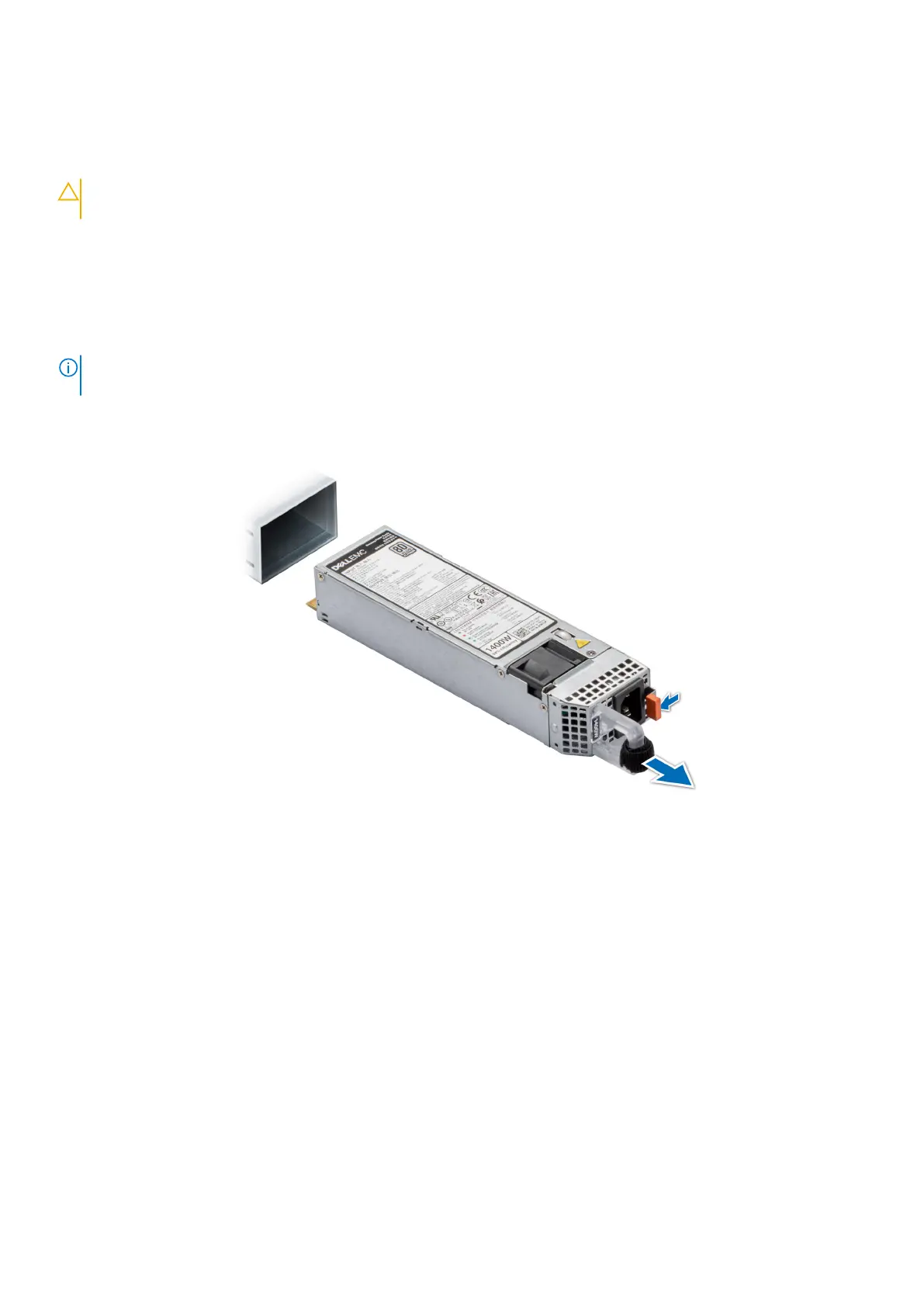

Figure 85. Removing a power supply unit from Rear Accessed configuration
Installing and removing system components
87
