Removing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE: The procedure to remove the expansion card risers is the same for Rear Accessed and Front Accessed
configurations.
Steps
1. For riser 1, using the Phillips #2 screwdriver, loosen the blue thumbscrew.
2. Hold the blue touch points, and lift the expansion card riser from the riser connector on the system board.

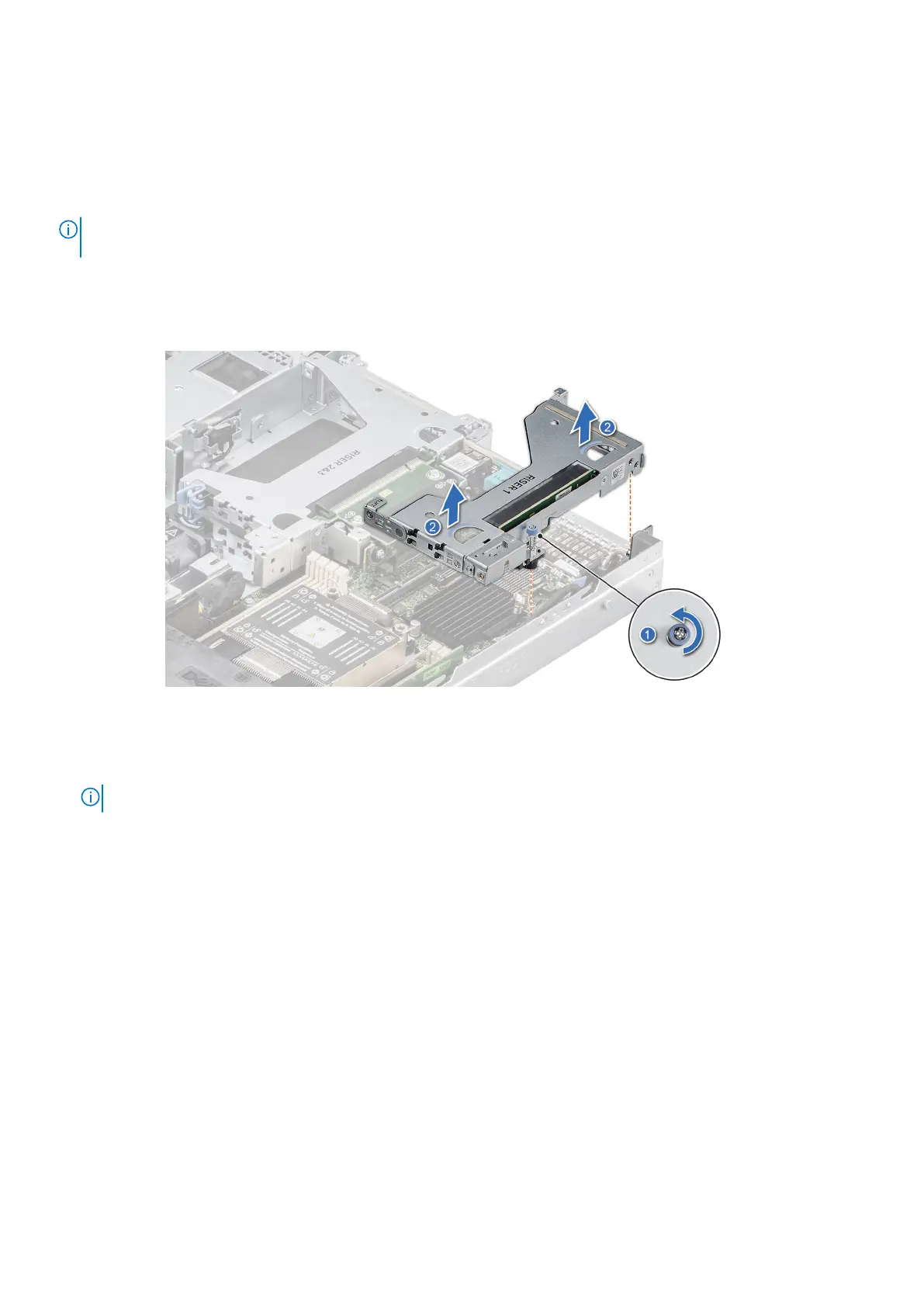

Figure 61. Removing Riser 1
3. For riser 2 and 3, using Phillips #2 loosen the blue thumbscrews. Hold the blue touch points, and lift the expansion card riser
from the riser connector on the system board.
NOTE: Riser 2 and 3 are combined in one expansion card riser.
Installing and removing system components 71
