Dell EMC PowerEdge XR11

Table 4. Power button control panel (continued)
Item Indicator or button Icon Description
NOTE: The USB 2.0 port is not available on Front Accessed
configuration.
3
iDRAC Direct LED
indicator
N/A The iDRAC Direct LED indicator lights up to indicate that the iDRAC Direct
port is actively connected to a device.
4
iDRAC Direct port (Micro-
AB USB)
The iDRAC Direct port (Micro-AB USB) enables you to access the iDRAC
direct features. For more information, see the https://www.dell.com/
idracmanuals.
NOTE: You can configure iDRAC Direct by using a USB to micro USB
(type AB) cable, which you can connect to your laptop or tablet. Cable
length should not exceed 3 feet (0.91 meters). Performance could be
affected by cable quality.
NOTE: For more information, see the Dell EMC PowerEdge XR11 Technical Specifications on the product documentation
page.
Rear view of the system

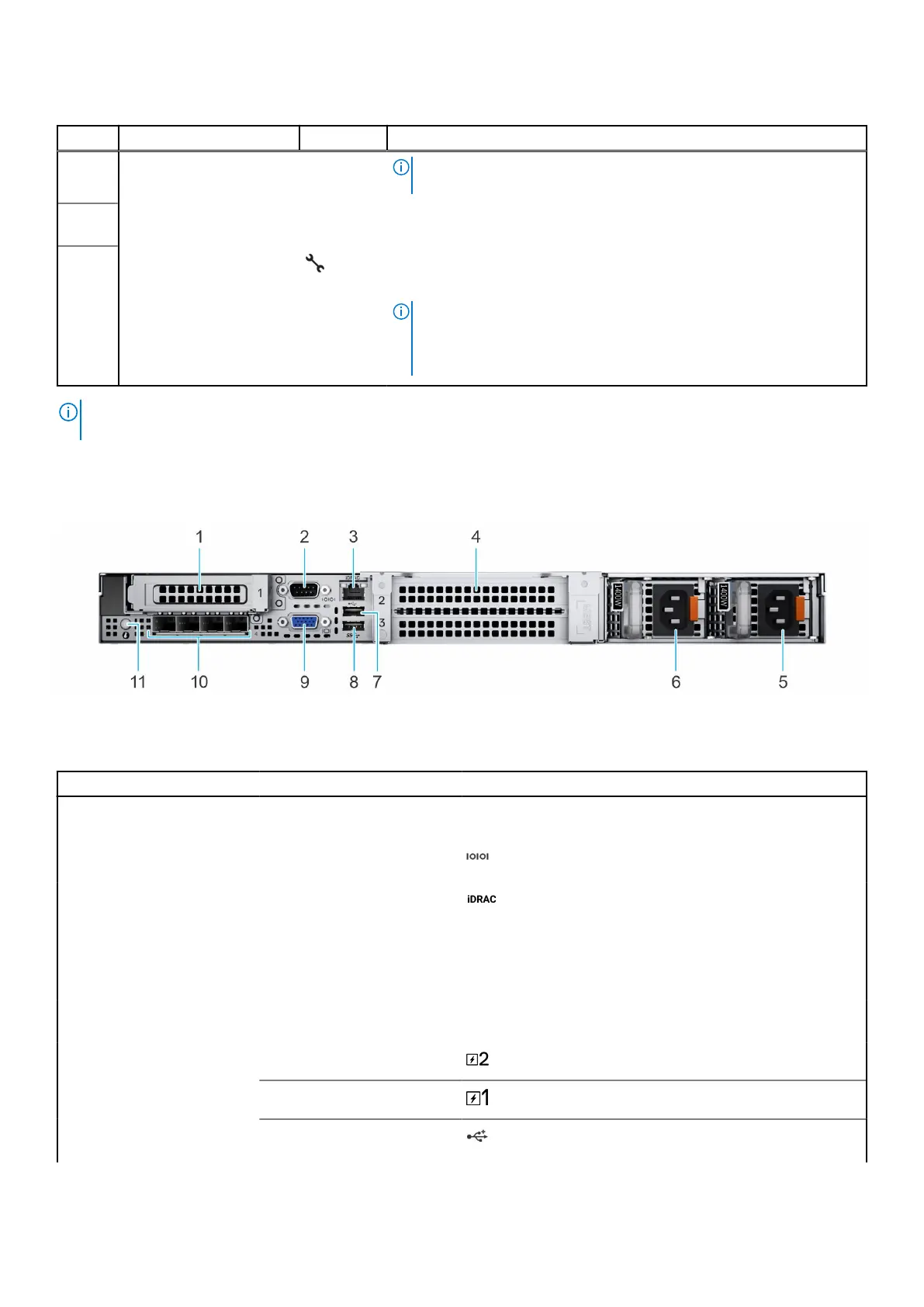

Figure 5. Rear view of Rear Accessed 4 x 2.5-inch drive configuration
Table 5. Features available on the rear view of Rear Accessed 4 x 2.5-inch drive configuration
Item Ports, panels, or slots Icon Description
1 PCIe expansion card riser 1
(slot 1)
N/A Enables you to connect PCI
Express expansion cards.
2 Serial port Enables you to connect a
serial device to the system.
3 iDRAC dedicated port
Enables you to remotely
access iDRAC. For
more information, see
the iDRAC User’s
Guide at www.dell.com/
poweredgemanuals.
4 PCIe expansion card riser 2
and 3 (slot 2 and 3)
N/A Enables you to connect PCI
Express expansion cards.
5 Power supply unit (PSU 2) Indicates the PSU.
6
Power supply unit (PSU 1) Indicates the PSU.
7
USB 2.0 port This port is USB 2.0-
compliant.
12 PowerEdge XR11 system overview
