3. From the TPM Security option, select On.
4. Save the settings.
5. Restart your system.
Control panel
This is a service technician replaceable part only.
Removing the status LED control panel for Rear Accessed
configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shrouds.
4. Remove the processor and heat sink module.
5. Remove the expansion card riser 1.
NOTE: If necessary, please remove the backplane signal and power cables.
Steps
1. Using the Phillips #2 screwdriver, remove the screws that secure the left ear handle.

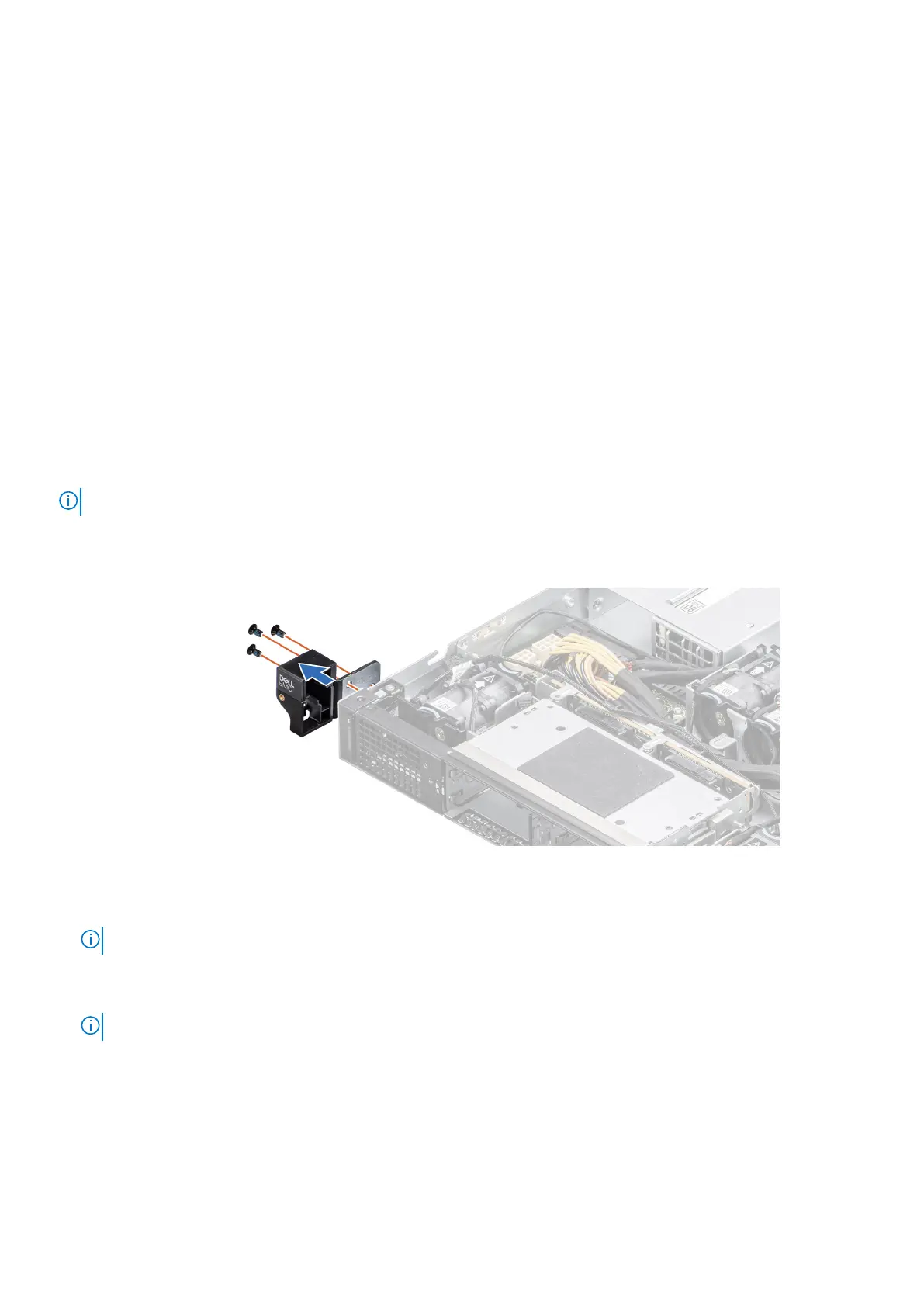

Figure 95. Removing the left ear handle for Rear Accessed configuration
2. Disconnect the status LED control panel cable from the system board connector.
NOTE: Observe the routing of the cable as you remove it from the system.
3. Using the Torx #8 screwdriver, remove the screws that secure the left control panel assembly to the system.
4. Hold the status LED control panel assembly and remove the control panel along with the cable from the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 97
