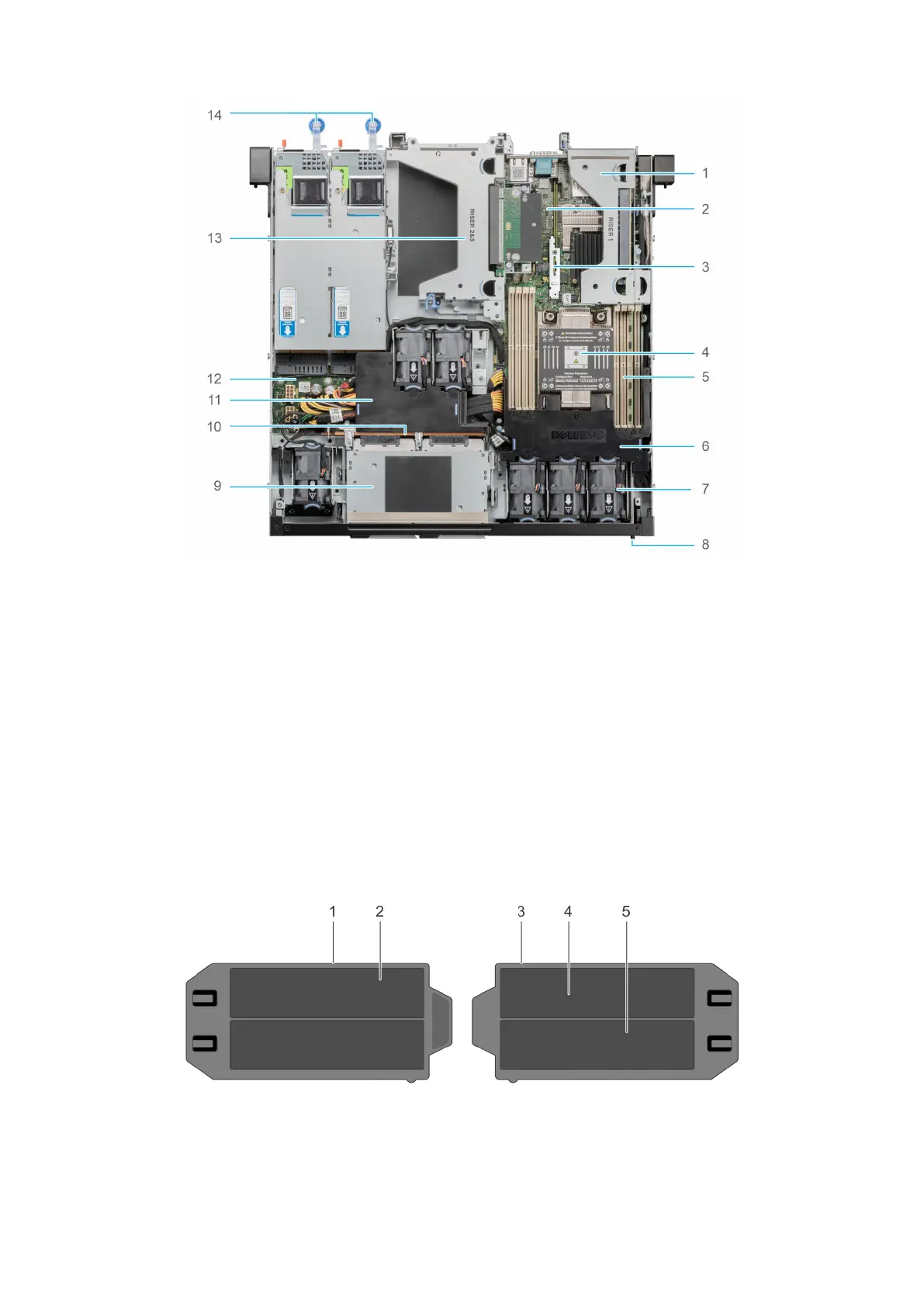

Figure 8. Inside the system - Front Accessed configuration
1.
Riser 1 2. System board
3. BOSS-S1 card (optional) 4. Processor and heat sink module
5. Memory module slots (8) 6. Processor air shroud
7. Cooling fans (6) 8. Information tag
9. Drive cage 10. Backplane
11. PCI air shroud 12. Power Interposer Board (PIB)
13. Riser 2 and 3 14. Power supply units
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front of the Rear Accessed configuration and rear of the Front Accessed configuration.
The information tag includes system information such as the Service Tag, Express Service Code, Manufacture date, NIC, MAC
address, QRL label, and so on.
Figure 9. Locating the Service Tag of your system
1. Information tag (front view)
2. Express Service Tag label
16
PowerEdge XR11 system overview
