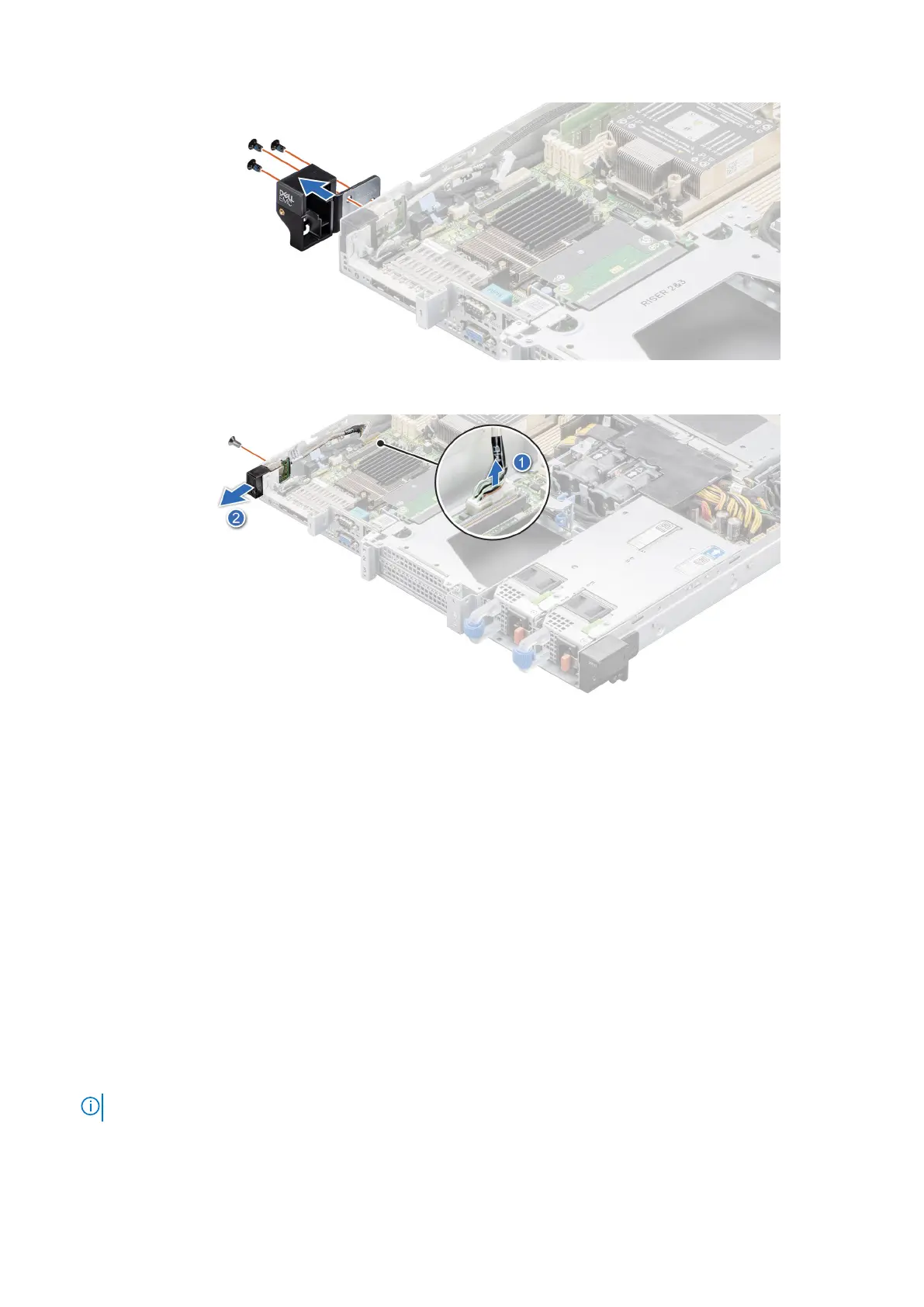

Figure 105. Removing the left ear for the Front Accessed configuration
Figure 106. Removing the power button control panel for Front Accessed configuration
Next steps
Replace the power button control panel for Front Accessed configuration.
Installing the power button control panel for Front Accessed
configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card riser 1.
Steps
1. Align and insert the power button control panel in the slot on the system.
2. Route the power button control panel cable through the side wall of the system.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
3. Connect the power button control panel cable to the connector on the system board.
4. Using the Torx #8 screwdriver, tighten the screws that secure the power button control panel to the system.
Installing and removing system components
105
