Installing the power interposer board (PIB)
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE: The procedure to install the power interposer board (PIB) is the same for Rear Accessed and Front Accessed
configurations.
Steps
1. Align the slots on the PIB with the hook on the chassis and slide it into place.
2. Using Phillips #2 screwdriver, tighten the screws to secure the PIB to the system.

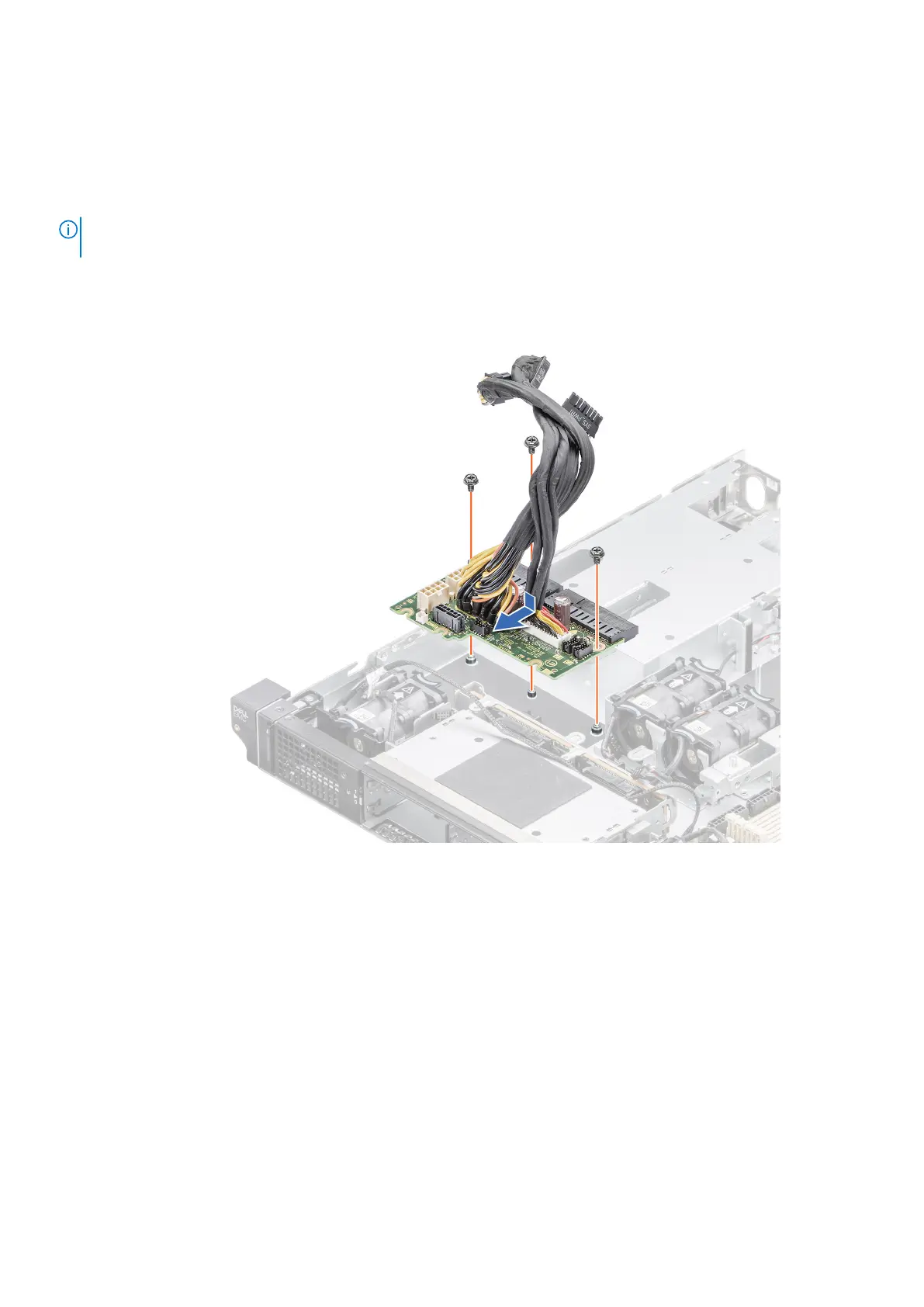

Figure 90. Installing the power interposer board
3. Reconnect all the required cables.
Next steps
1. Install the PSU.
2. Install the PCI air shroud.
3. Follow the procedure listed in After working inside your system.
