You need the following tools to assemble the cables for a DC power supply unit:
● AMP 90871-1 hand-crimping tool or equivalent
● Tyco Electronics 58433-3 or equivalent
● Wire-stripper pliers to remove insulation from size 10 AWG solid or stranded, insulated copper wire
NOTE: Use alpha wire part number 3080 or equivalent (65/30 stranding).
Optional front bezel
Removing the front bezel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Remove the screws on both sides of the bezel.
2. Holding the bezel by the edges, remove the front bezel.

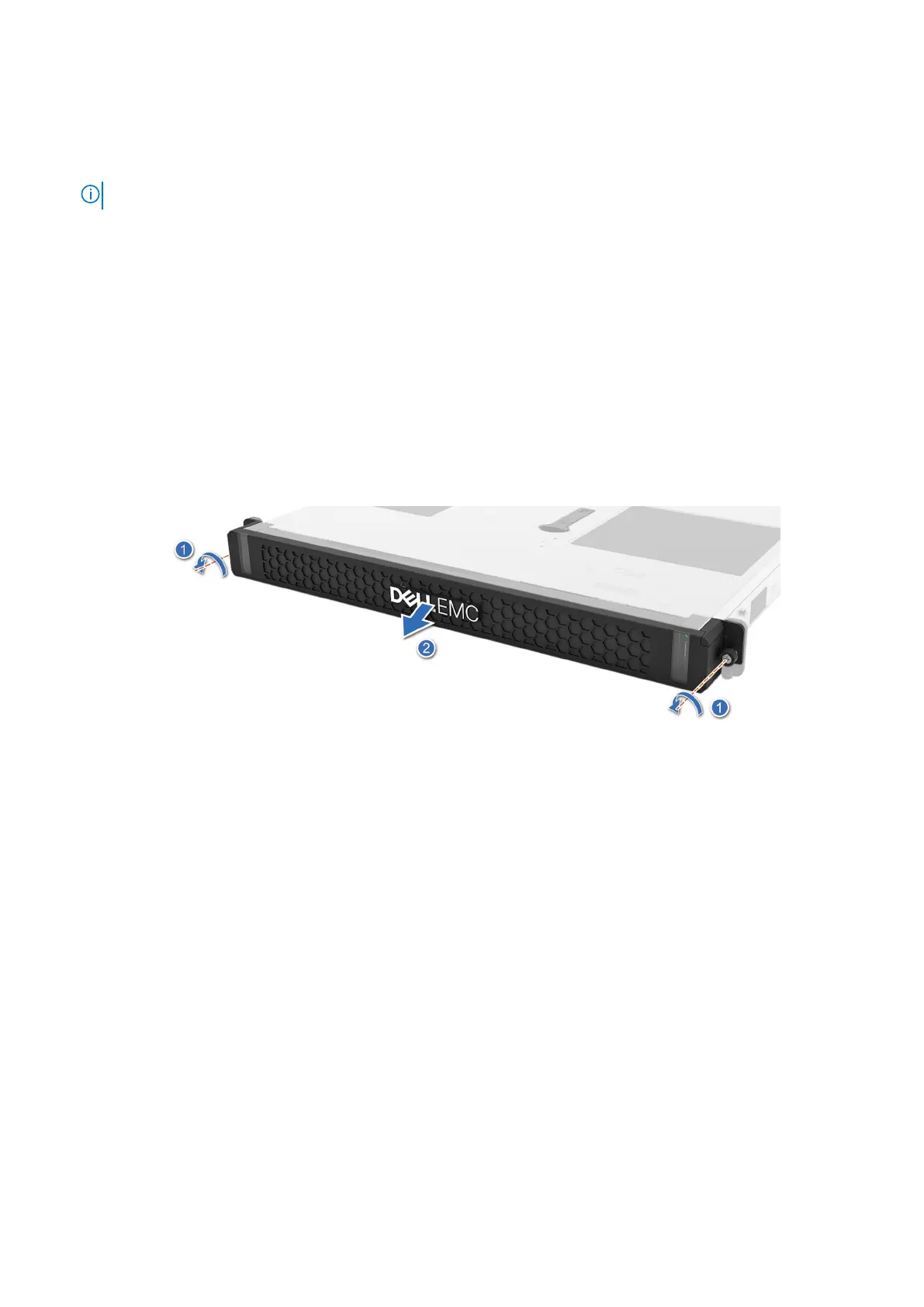

Figure 14. Removing the front bezel for Rear Accessed configuration
Next steps
Replace the front bezel.
Installing the front bezel
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align the bezel screws to the holes of the system left and right rack ears.
2. Tighten the screws until the bezel is firmly seated.
