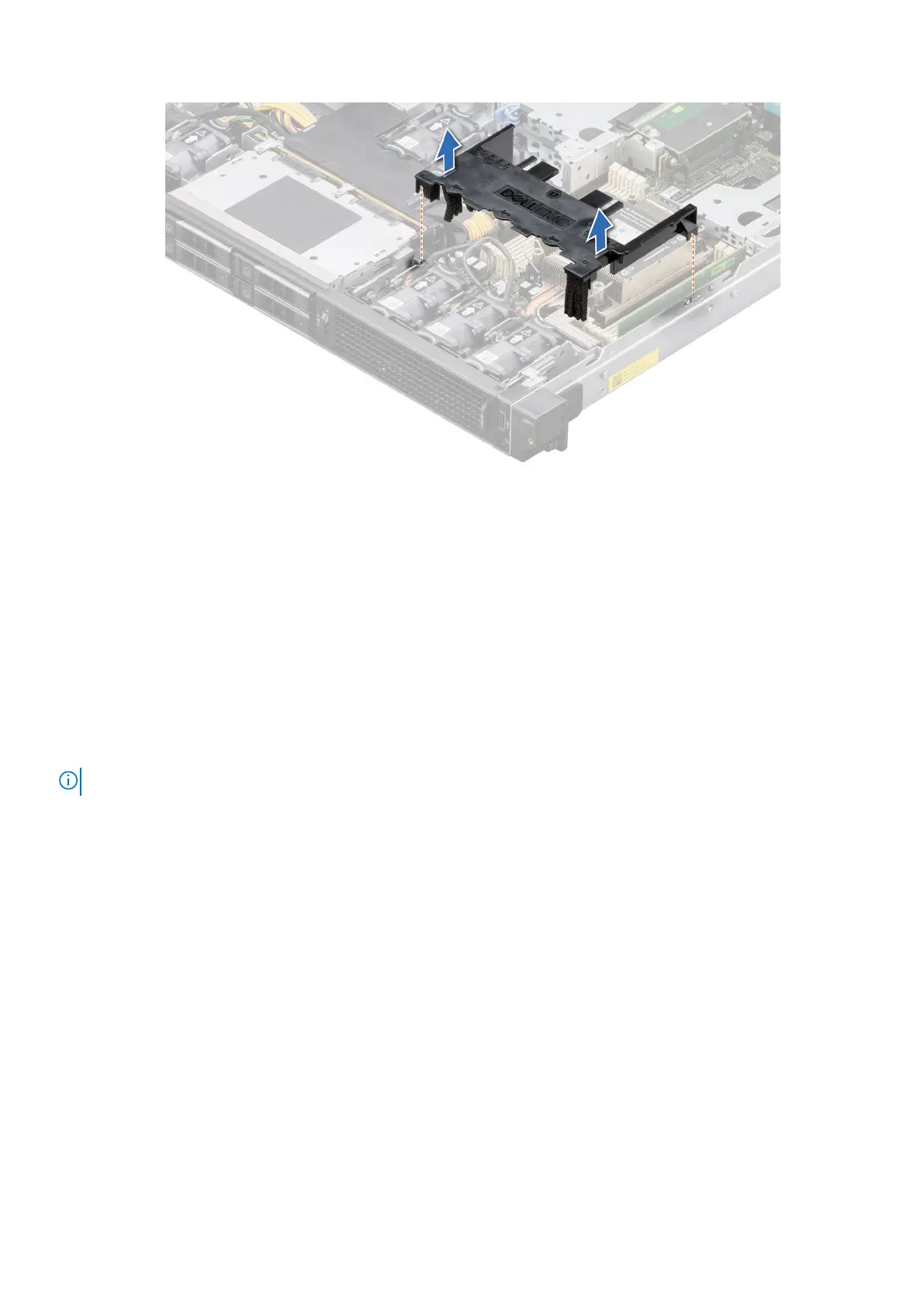

Figure 23. Removing the processor air shroud
Next steps
Replace the air shroud.
Installing the air shrouds
The system supports PCI air shroud and processor air shroud.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE: The procedure to install the air shrouds is the same for Rear Accessed and Front Accessed configurations.
Steps
1. Align the guide pins on the chassis with guides on the air shroud.
2. Lower the air shroud into the system until it is firmly seated.
36
Installing and removing system components
