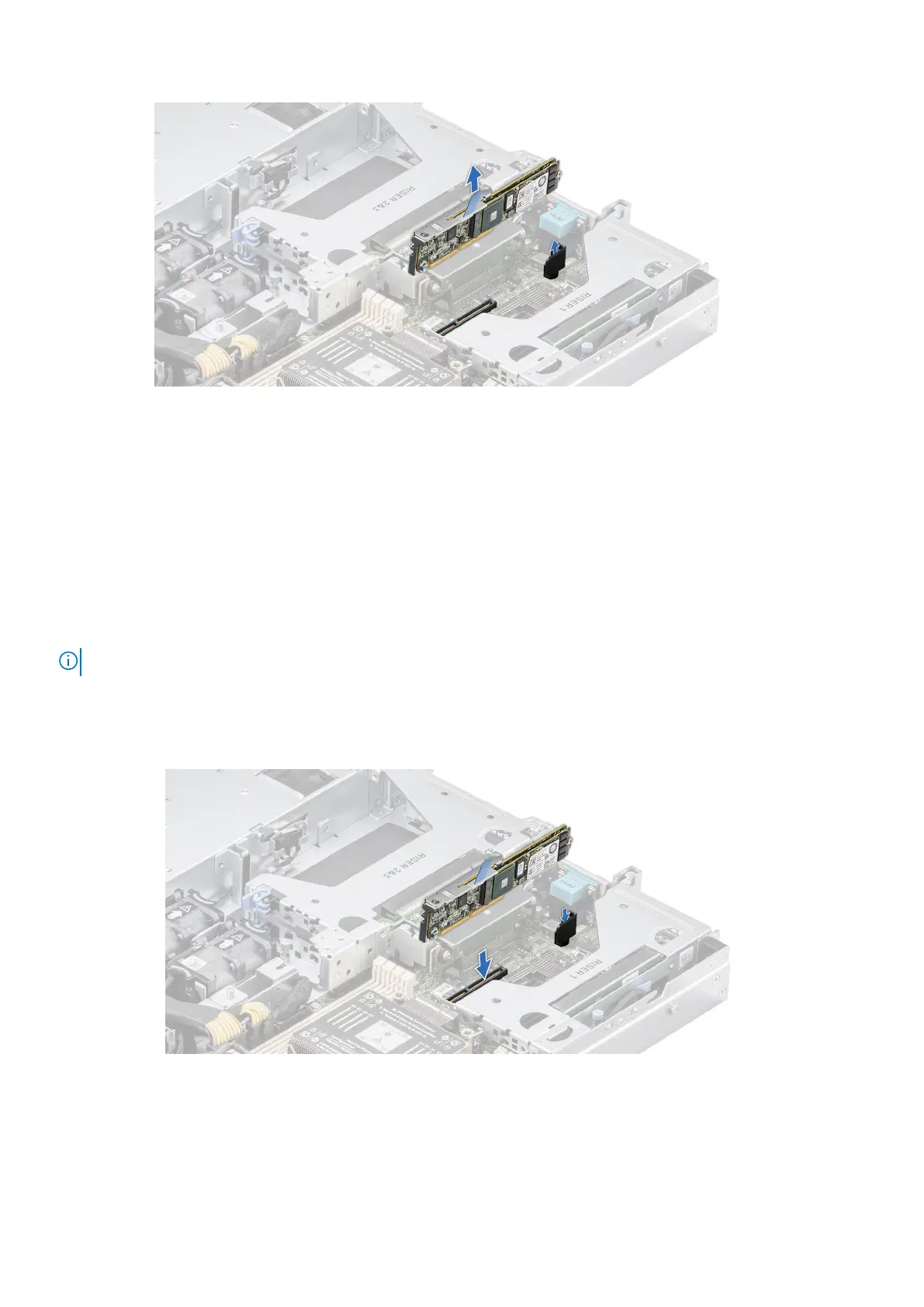

Figure 75. Removing the BOSS S1 card
Next steps
Replace the BOSS S1 card.
Installing the BOSS S1 card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE: The procedure to install the BOSS S1 card is the same for Rear Accessed and Front Accessed configurations.
Steps
1. Align and insert the BOSS S1 card connector with the connectors on the system board.
2. Press the BOSS S1 card firmly until it is fully seated.
Figure 76. Installing the BOSS S1 card into the system board
Next steps
Follow the procedure listed in After working inside your system.
