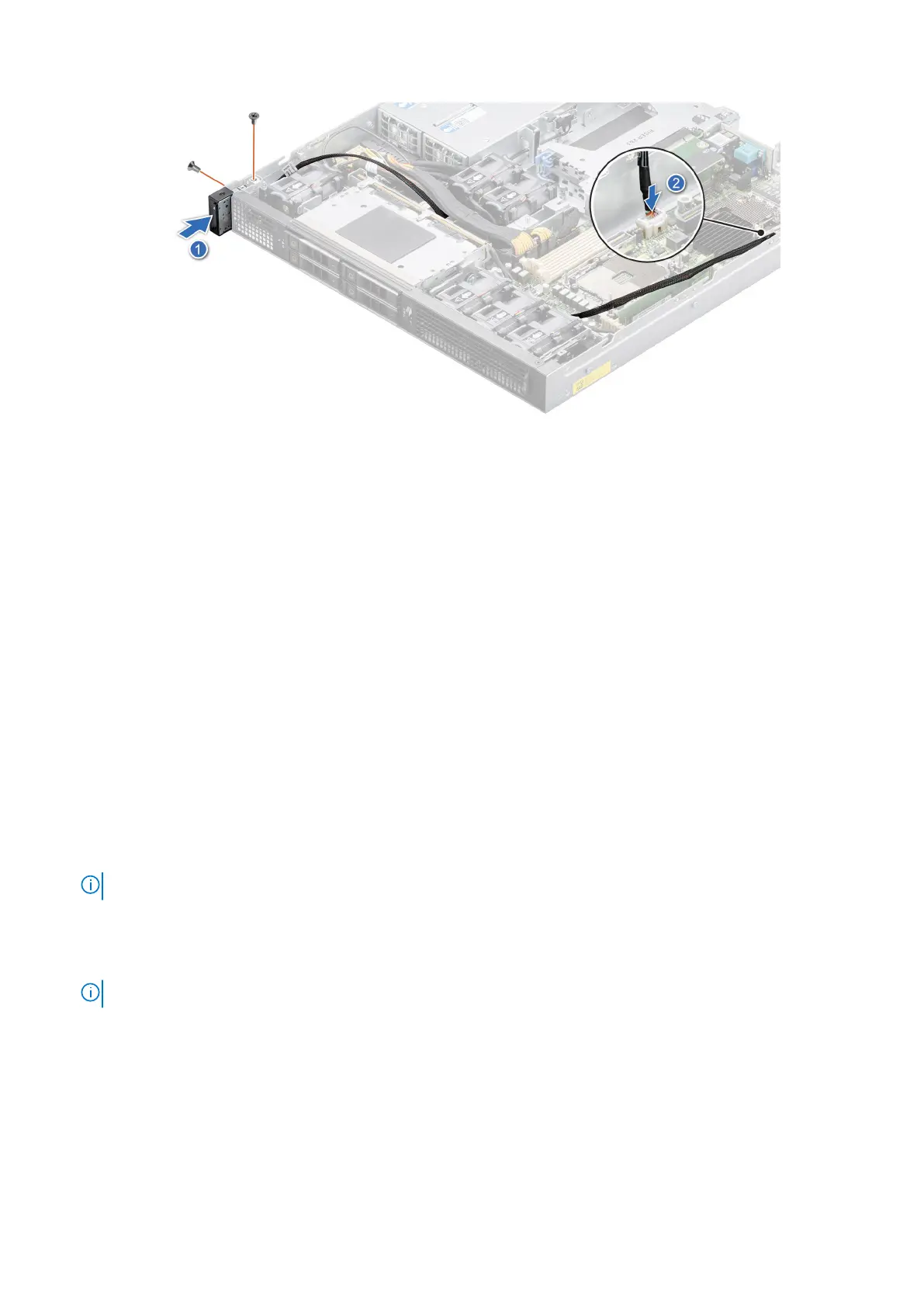

Figure 104. Installing the status LED control panel assembly for Front Accessed configuration
Next steps
1. Install the expansion card riser 1.
2. Install the processor heat sink module.
3. Install the air shrouds.
4. Follow the procedure listed in the After working inside your system.
Removing the power button control panel for Front Accessed
configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the Riser 1.
Steps
1. Loosen the three screws to remove the left ear for the Front Accessed configuration.
2. Disconnect the power button control panel cable from the system board connector and remove the cable from cable clip.
NOTE: Observe the routing of the cable as you remove it from the system.
3. Using the Phillips #2 screwdriver, remove the screws that secure the left rack ear.
4. Using the Torx #8 screwdriver, remove the screws that secure the power button control panel assembly.
5. Hold the power button control panel assembly and remove the control panel along with the cable from the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
104 Installing and removing system components
