Dell EMC PowerEdge XR11

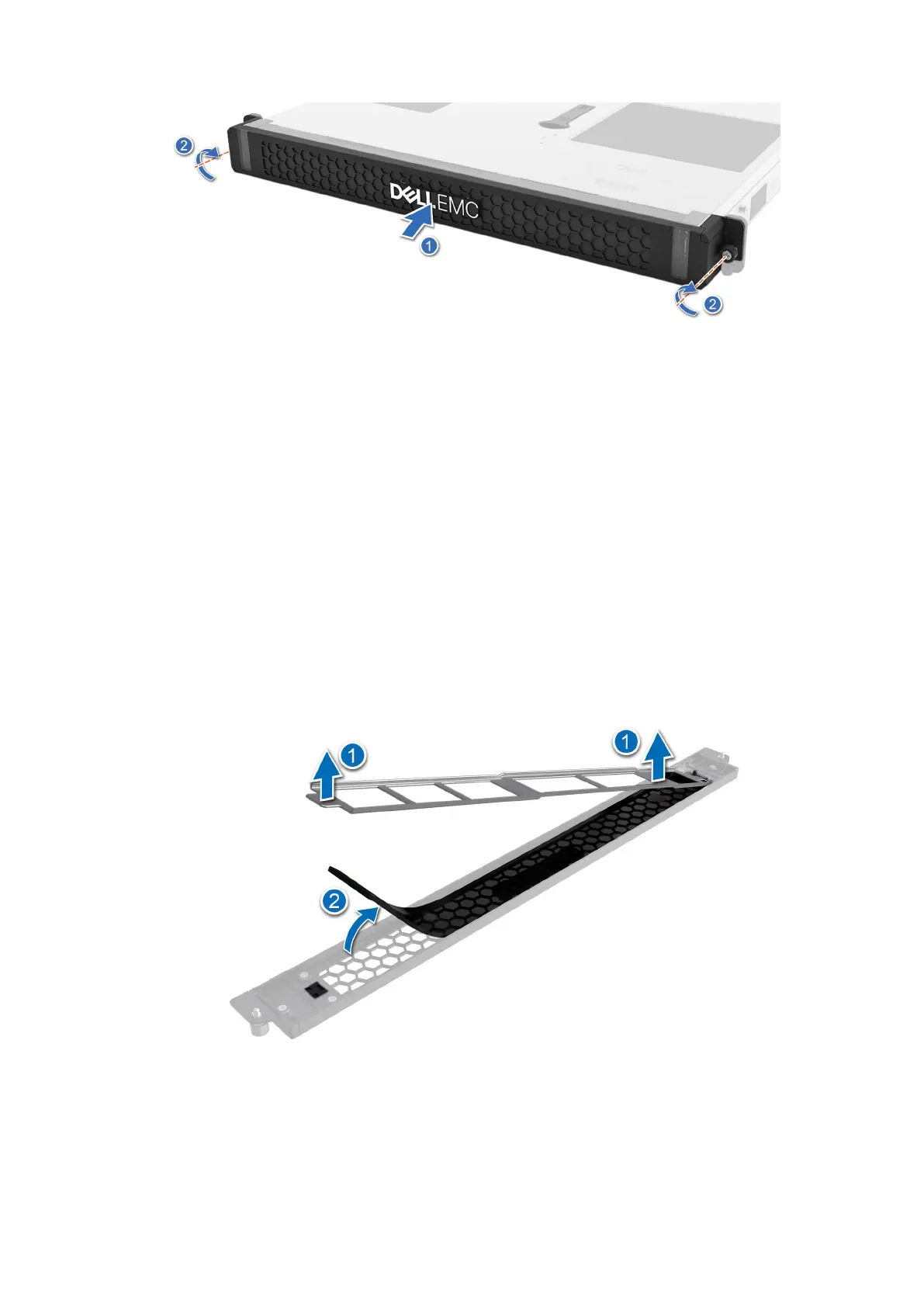

Figure 15. Installing the front bezel for Rear Accessed configuration
Bezel filter
Removing the bezel filter for Rear Accessed configuration
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the front bezel
Steps
1. Remove the metal filter bracket using the tab marked LIFT on the inside face of the bezel.
Figure 16. Removing the front bezel filter for Rear Accessed configuration
2. Remove the filter below the metal bracket.
30
Installing and removing system components
