PowerEdge XR11 system overview
The PowerEdge XR11 system is a 1U server that supports:
● Rear Accessed configuration or Front Accessed configuration
● One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
● Eight DIMM slots
● Two redundant AC or DC power supply units
● Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives
NOTE: All instances of SAS, SATA and NVMe drives are referred to as drives in this document, unless specified otherwise.
NOTE: The Rear Accessed and Front Accessed configurations cannot be modified.
CAUTION: Do not install GPUs, network cards, or other PCIe devices on your system that are not validated
and tested by Dell. Damage caused by unauthorized and invalidated hardware installation will null and void the
system warranty.
NOTE: For more information, see the Dell EMC PowerEdge XR11 Technical Specifications on the product documentation
page.
Topics:
• Front view of the system
• Rear view of the system
• Inside the system
• Locating the Express Service Code and Service Tag
• System information label
• Rail sizing and rack compatibility matrix
Front view of the system

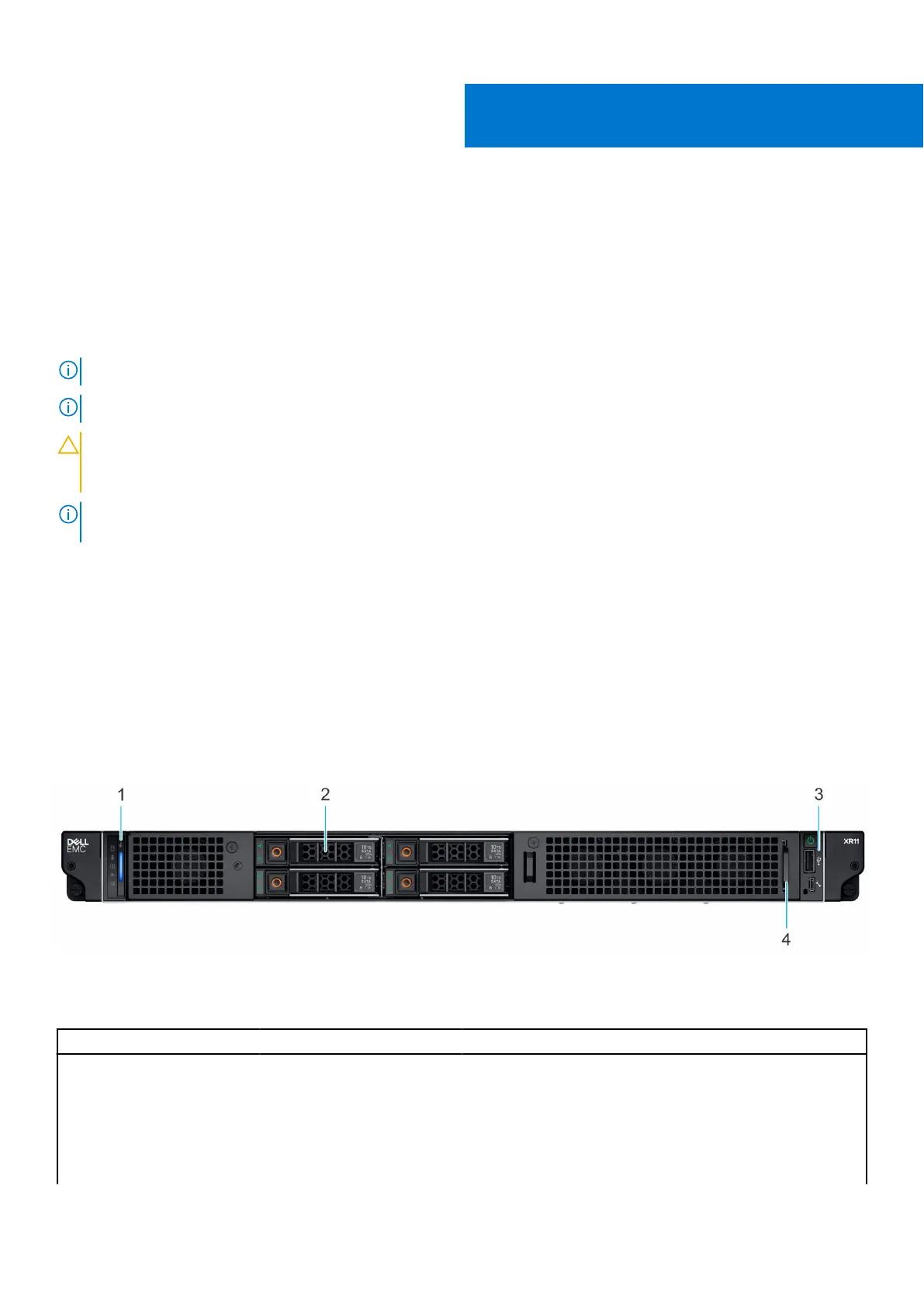

Figure 1. Front view of Rear Accessed 4 x 2.5-inch drive configuration
Table 1. Features available on the front view of Rear Accessed 4 x 2.5-inch drive configuration
Item Ports, panels, and slots Icon Description
1 Status LED control panel N/A Contains the system health,
system ID, status LED.
● Status LED: Enables you
to identify any failed
hardware components.
There are up to five
status LEDs and an
2
8 PowerEdge XR11 system overview
