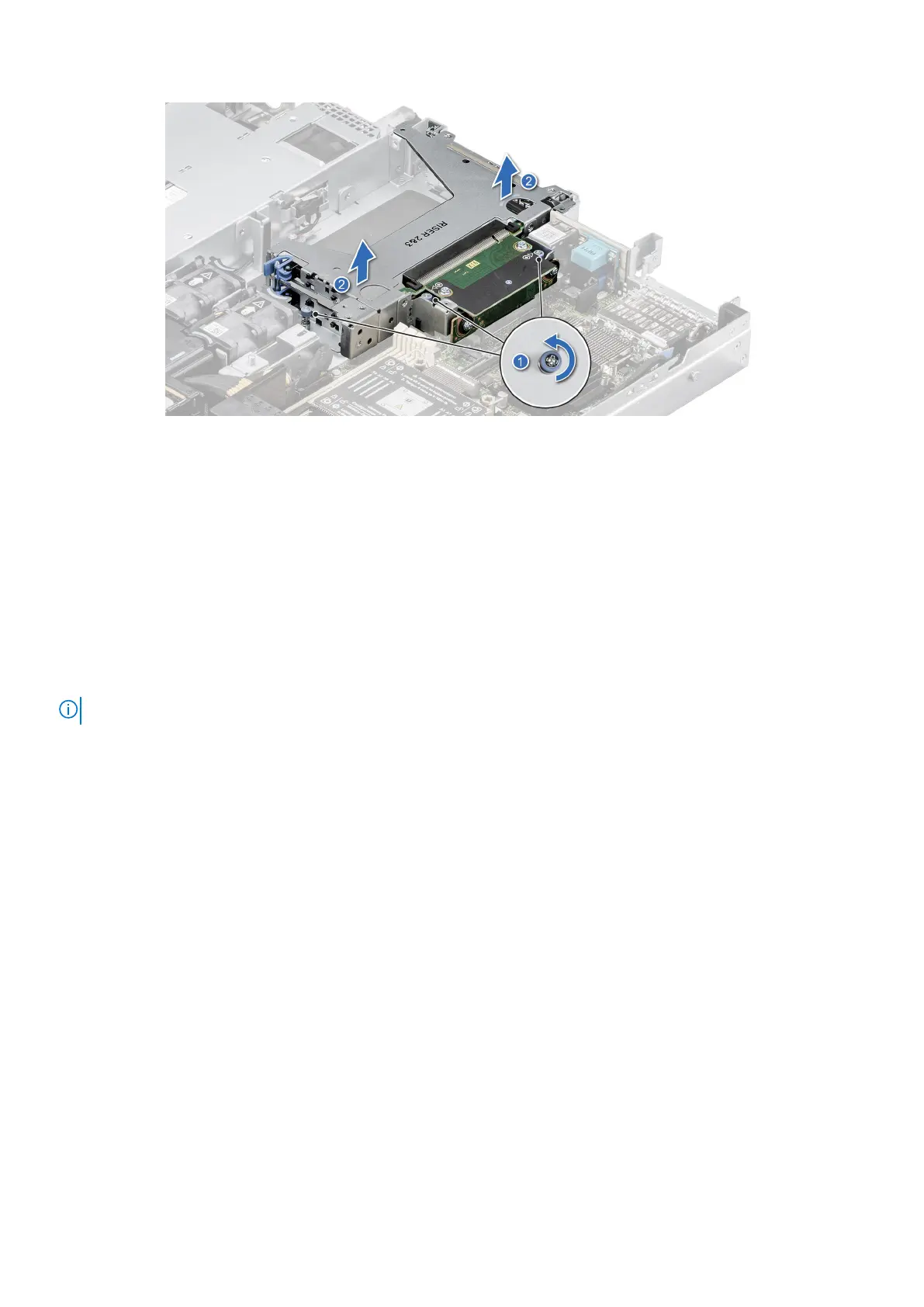

Figure 62. Removing Riser 2 and 3
Next steps
Replace the expansion card riser.
Installing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If removed, install the expansion cards into the expansion card risers and connect all the riser cables.
NOTE: The procedure to install the expansion card risers is the same for Rear Accessed and Front Accessed configurations.
Steps
1. For Riser 1, hold the blue touch points aligning the expansion card riser with the connector on the system board and the riser
guide pins on the system chassis.
72
Installing and removing system components
