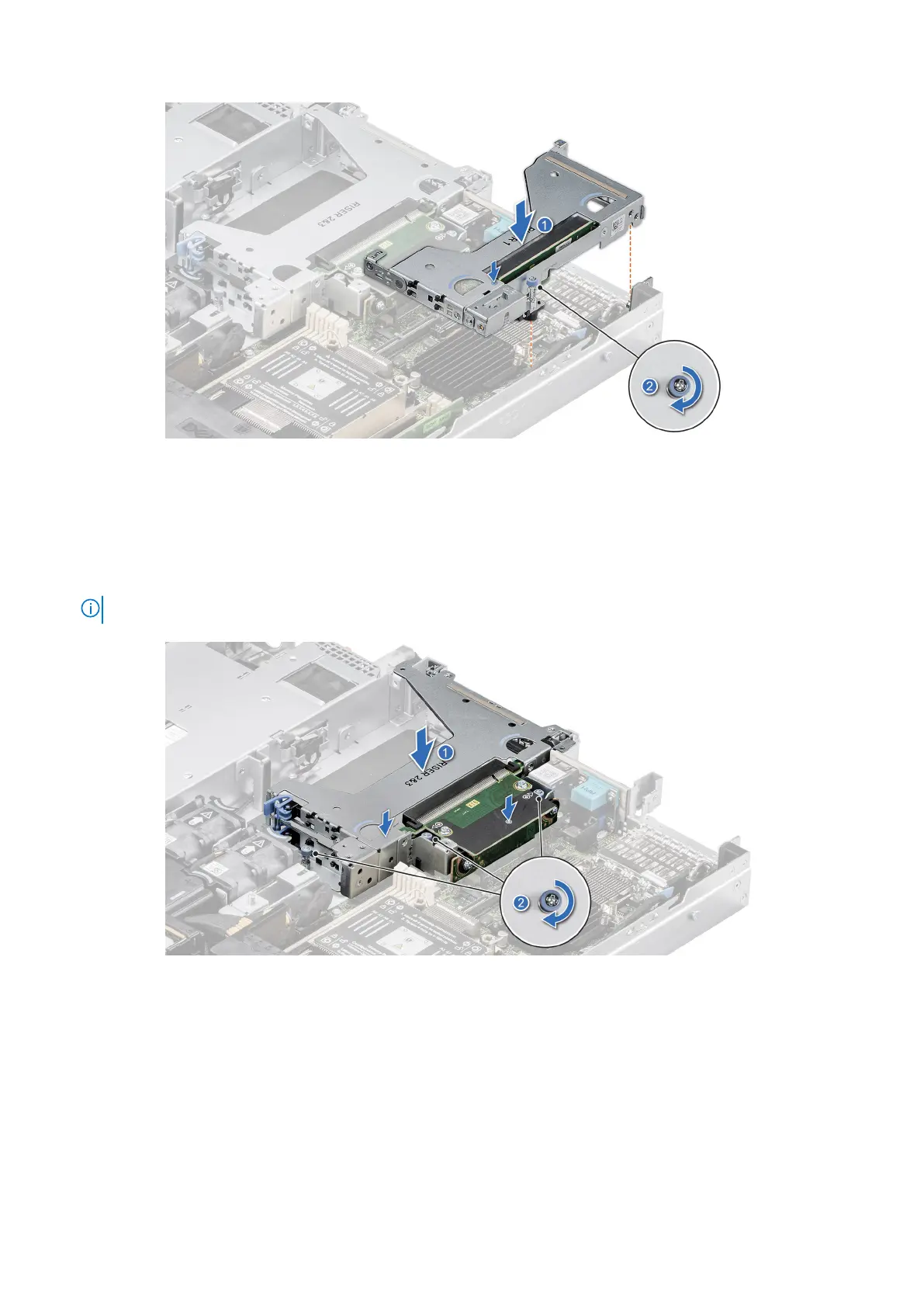

Figure 63. Installing Riser 1
2. Lower the expansion card riser into place and press the blue target push point that is located on the riser until the expansion
card riser connector is fully seated in the connector.
3. Using Phillips #2 screwdriver, tighten the blue thumbscrew.
4. For Riser 2 and 3, hold the blue touch points aligning the expansion card riser with the connectors on the system board and
the riser guide pins on the system chassis.
NOTE: Risers 2 and 3 are combined in one expansion card riser.
Figure 64. Installing Riser 2 and 3
5. Lower the expansion card riser into place and press the blue target push points that are located on the riser until the
expansion card riser is fully seated in the connector.
6. Using Phillips #2 screwdriver, tighten the blue thumbscrews.
Next steps
1. Follow the procedure listed in After working inside your system.
2. Install any device drivers required for the card as described in the documentation for the card.
