NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

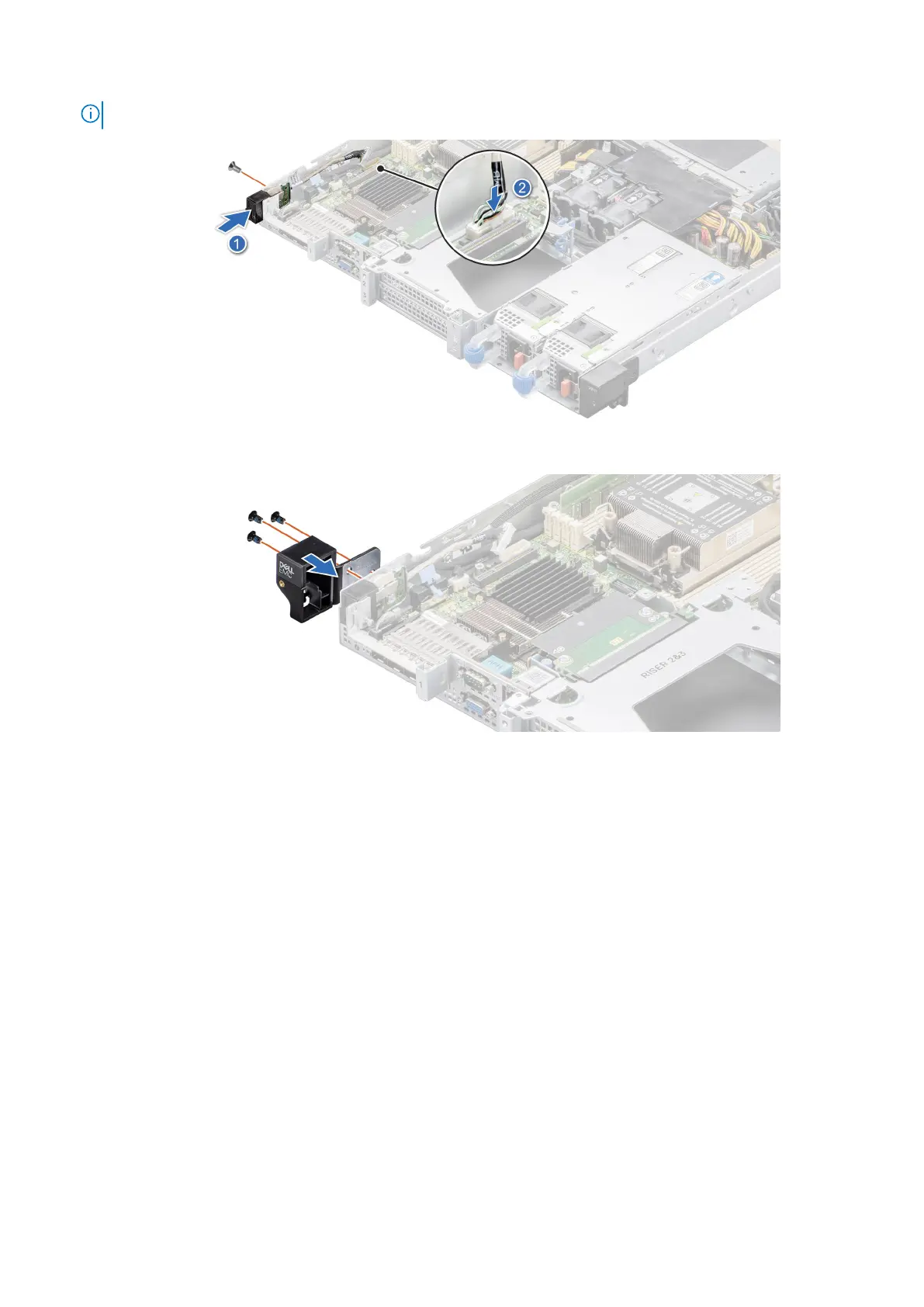

Figure 107. Installing the power button control panel for Front Accessed configuration
Figure 108. Installing the left ear for the Front Accessed configuration
5. Using the Phillips #2 screwdriver, tighten the screws and secure the rack left ear.
Next steps
1. Install the expansion card riser 1.
2. Follow the procedure listed in the After working inside your system.
MIL 901E and MIL 461G rugged kit
The MIL 901E and MIL 461G rugged kit provides rugged protection for the PowerEdge XR11 server. The MIL 901E and MIL 461G
rugged kit consists of the components mentioned below:
● Power supply rugged bracket
● Drive rugged bracket
● Nine countersunk screws
106
Installing and removing system components
