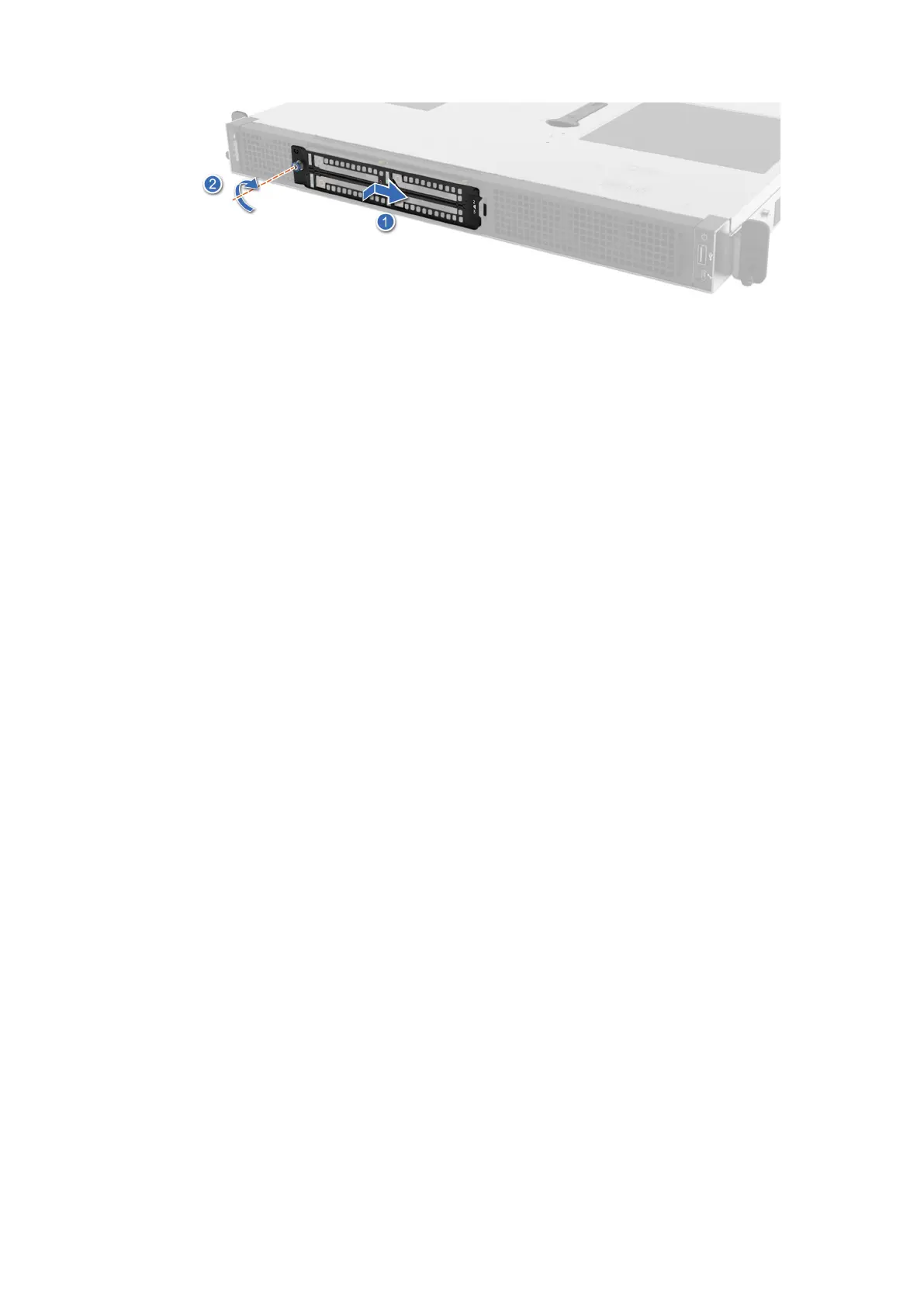

Figure 110. Installing the 901E and MIL 461G drive rugged bracket
3. Rotate the bracket closed against the chassis and slide the latch to left and then right until seated firmly.
4. Install the front bezel for Rear Accessed configuration.
5. Using a Phillips #2 screwdriver, tighten one screw to the system cover.
Next steps
Follow the procedure listed in After working inside your system.
108 Installing and removing system components
