2. Follow the procedure listed in the Before working inside your system.
Steps
1. Using a 1/4-inch flat head or Phillips #2 screwdriver, rotate the lock counterclockwise to the unlock position.
2. Lift the release latch until the system cover slides back.
3. Lift the cover from the system.

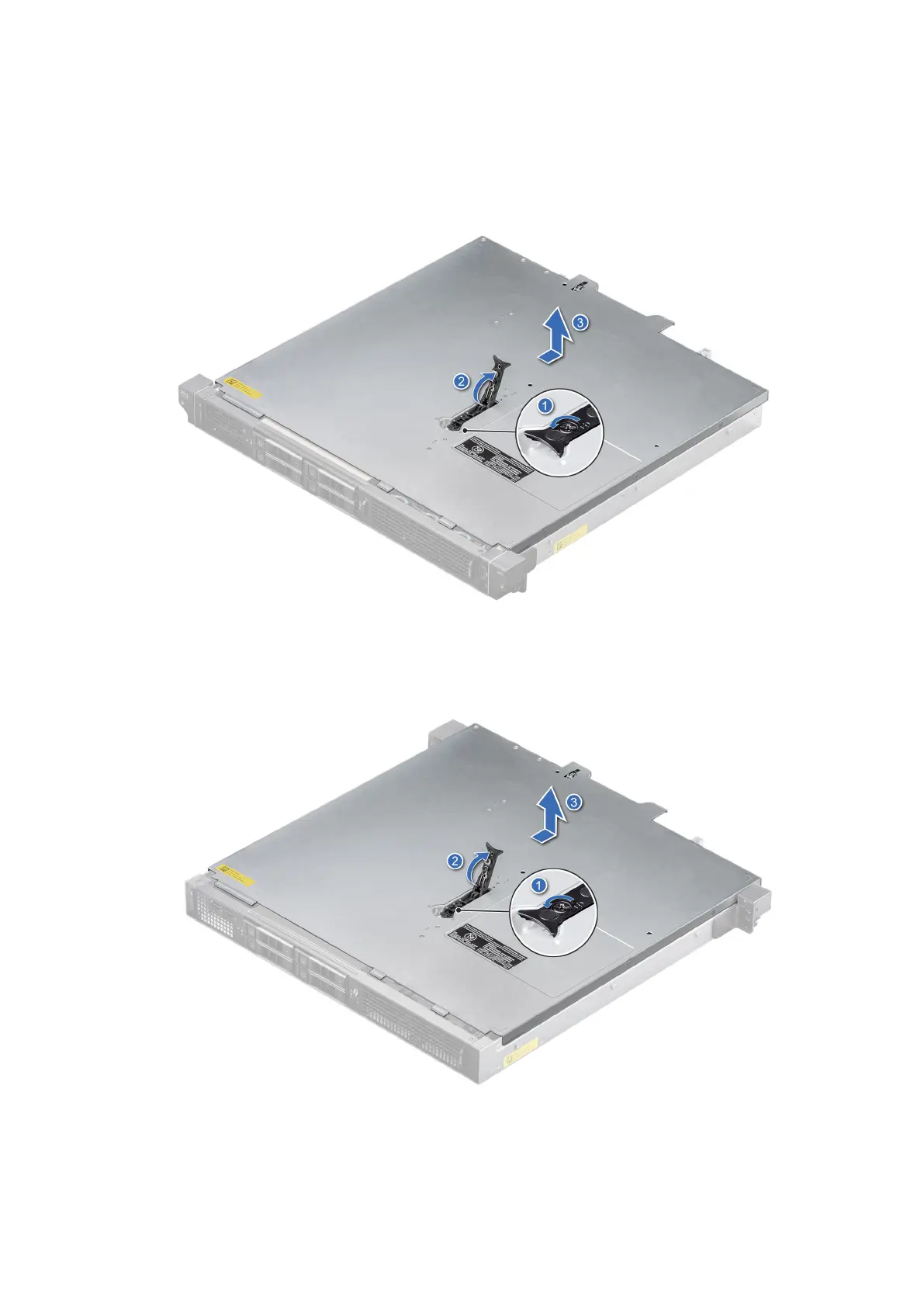

Figure 18. Removing the system cover for Rear Accessed configuration
Figure 19. Removing the system cover for Front Accessed configuration
32
Installing and removing system components
