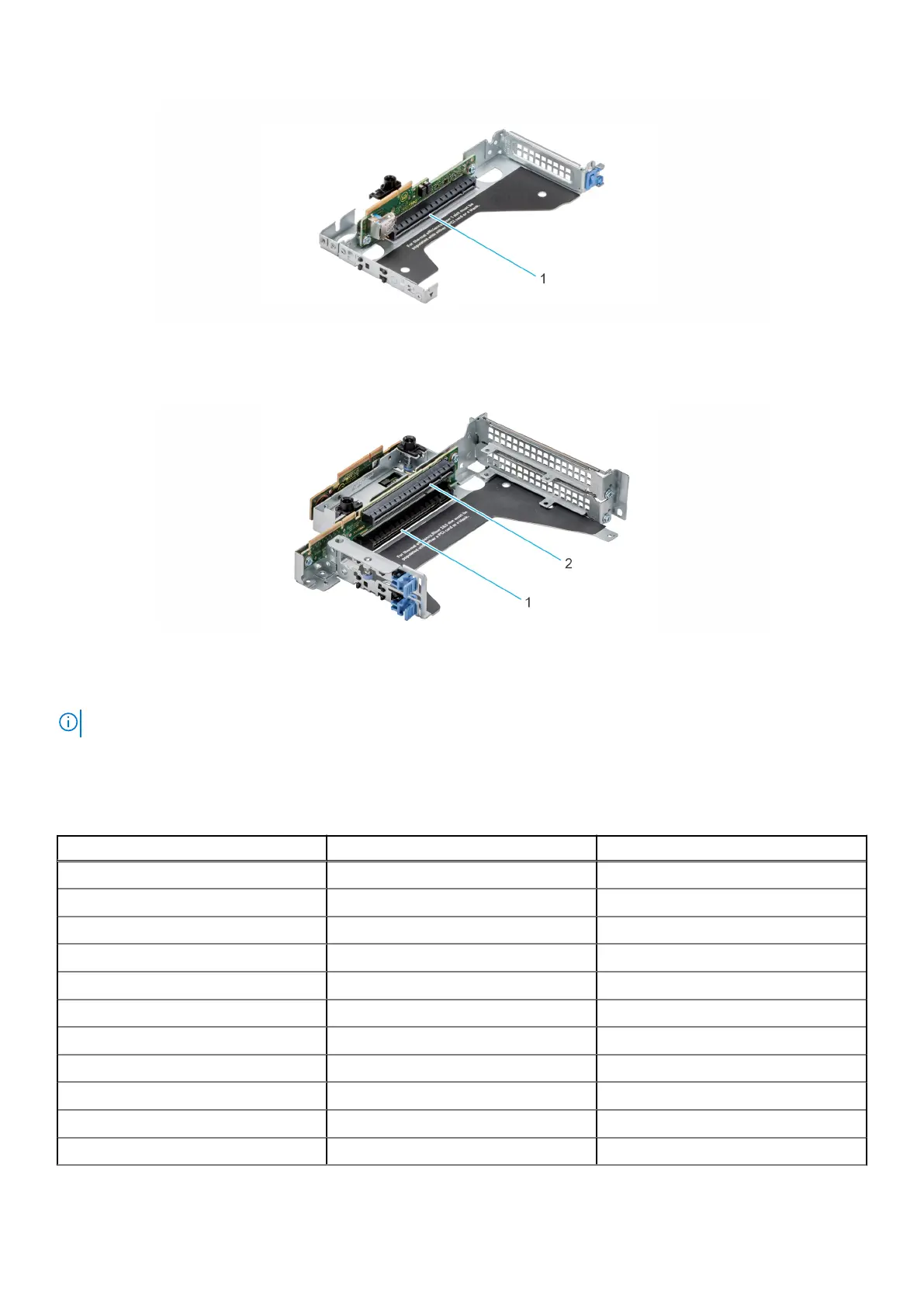

Figure 59. Riser 1
1. Slot 1, x8, LP-HL (Low Profile - Half Length)
Figure 60. Riser 2 and 3
1. Slot 2, x16, FH-HL (Full Height - Half Length)
2. Slot 3, x16, FH-HL (Full Height - Half Length)
NOTE: The expansion-card slots are not hot-swappable.
The following table provides guidelines for installing expansion cards to ensure proper cooling and mechanical fit. The expansion
cards with the highest priority should be installed first using the slot priority indicated. All the other expansion cards should be
installed in the card priority and slot priority order.
Table 26. Configuration 0: R1B+R2+R3 for Rear Accessed configuration
Card type Slot priority Maximum number of cards
Internal PERC adapter (LP) 1 1
Dell External Adapter (FH) 3, 2 2
GPU (FH) 2, 3 2
Mellanox (NIC: 100Gb) (FH) 2, 3 2
Mellanox (NIC: 25Gb) (FH) 2, 3 2
Broadcom (NIC: 25Gb) (FH) 2, 3 2
Broadcom (NIC: 25Gb) (LP) 1 1
Broadcom (NIC: 10Gb) (FH) 2, 3 2
Broadcom (NIC: 10Gb) (LP) 1 1
Broadcom (NIC: 1Gb) (FH) 3, 2 2
Broadcom (NIC: 1Gb) (LP) 1 1
Installing and removing system components 69
