2. Slide and lift the mid top cover from the system.

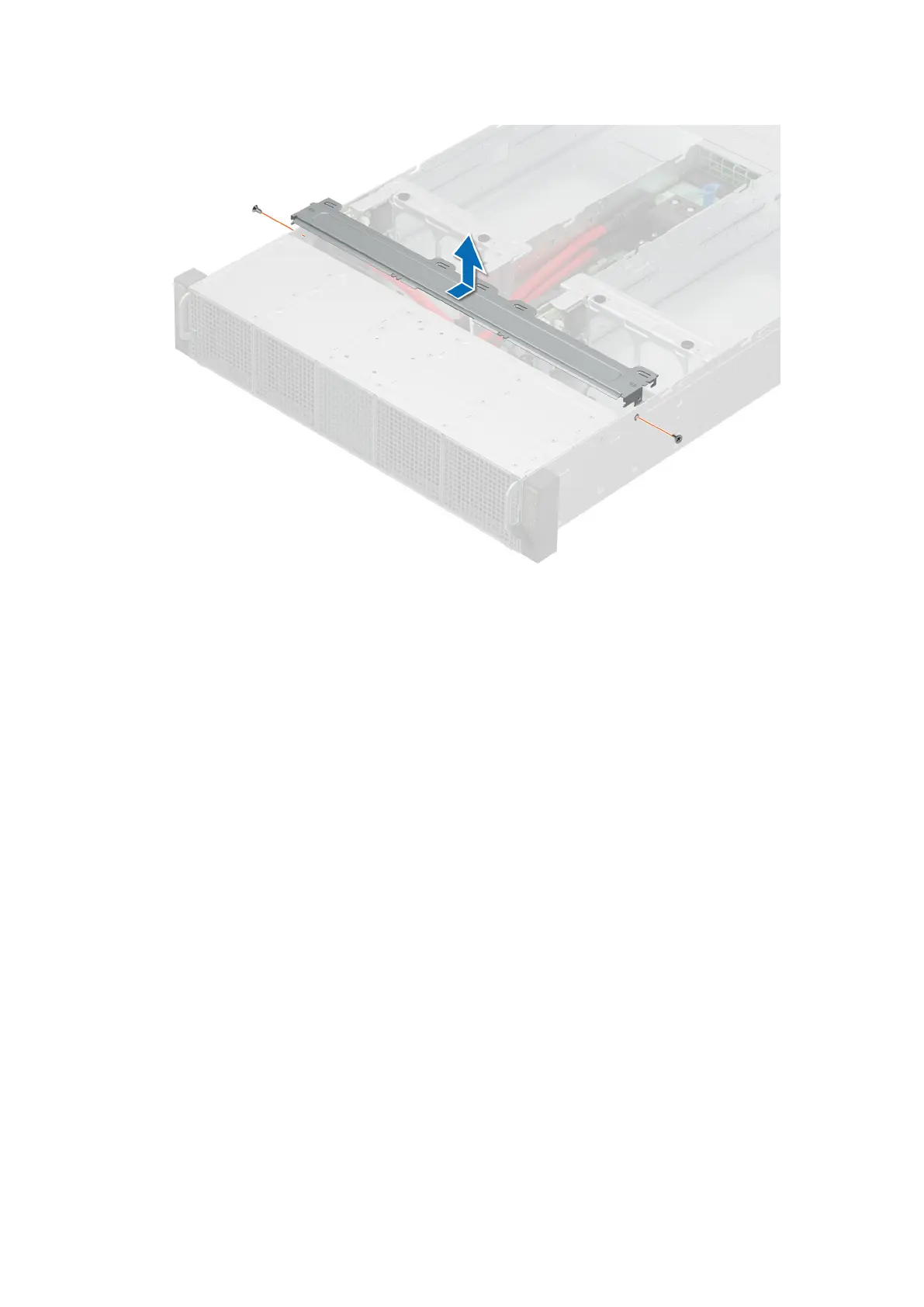

Figure 28. Removing the mid top cover
Next steps
Replace the mid top cover.
Installing the mid top cover
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the tabs on the mid top cover with the guide slots on the system and slide the mid top cover toward the front of the
chassis until it locks into place.
2. Using the Phillips 1 screwdriver, secure the mid top cover to the system with screws.
32
Installing and removing system components
