3. Disengage the sensor board from the fan cage and lift the board from the cage.

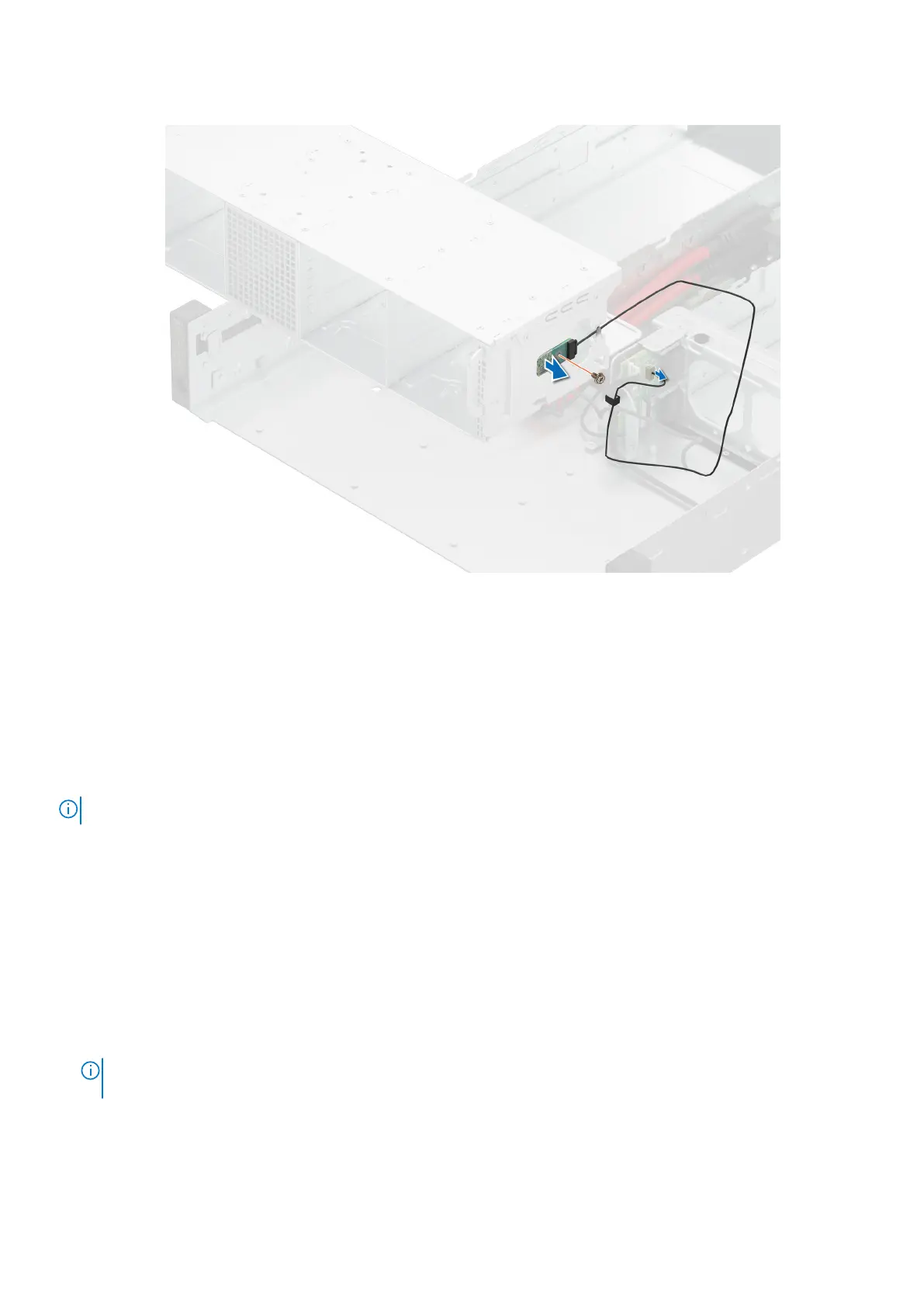

Figure 42. Removing the thermal sensor board
Next steps
Replace the thermal sensor board.
Installing the thermal sensor board
Prerequisites
NOTE: Observe the routing of the cables on the chassis as you remove them from the system.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove all the 80 mm fans.
4. Disconnect the right control panel cable from the midplane.
5. Remove the mid top cover.
6. Remove the diskless 80 mm fan cage from the chassis.
Steps
1. Align and install the thermal sensor board into the sensor board holder.
2. Using the Phillips 2 screwdriver, tighten the screw to secure the sensor board to the fan cage.
3. Connect the sensor board cable to the right midplane.
NOTE:
You must route these cables properly when you replace them to prevent the cables from being pinched or
crimped.
46 Installing and removing system components
