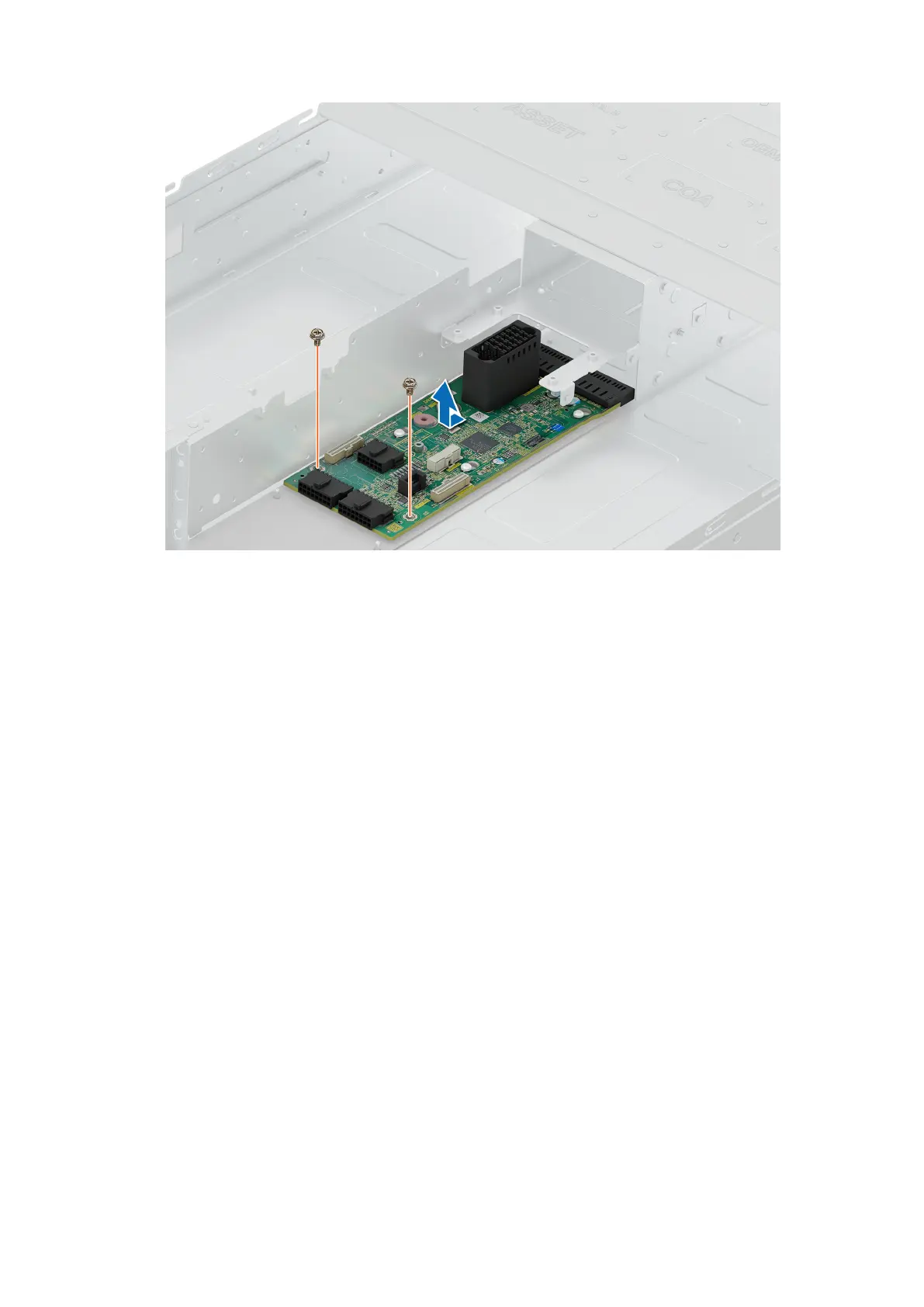

Figure 59. Removing the chassis management board
Next steps
Replace the chassis management board.
Installing the chassis management board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the power supply units.
4. Remove the power interposer board.
5. Disconnect all the cables that are connected to the chassis management board.
Steps
1. Insert the chassis management board into the system, aligning the guide slots with the standoffs on the chassis.
2. Push the board toward the rear of the system to connect the board to the connector in the system.
3. Using the Phillips 2 screwdriver, tighten the screws to secure the board to the chassis.
