Next steps
1. Replace the power supply units.
2. Follow the procedure listed in After working inside your system
Chassis management board
This is a service technician replaceable part only.
Removing the chassis management board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the power supply units.
4. Remove the power interposer board.
5. Disconnect all the cables that are connected to the chassis management board.
Steps
1. Using the Phillips 2 screwdriver, remove the screws securing the midplane power cables to the chassis management board.

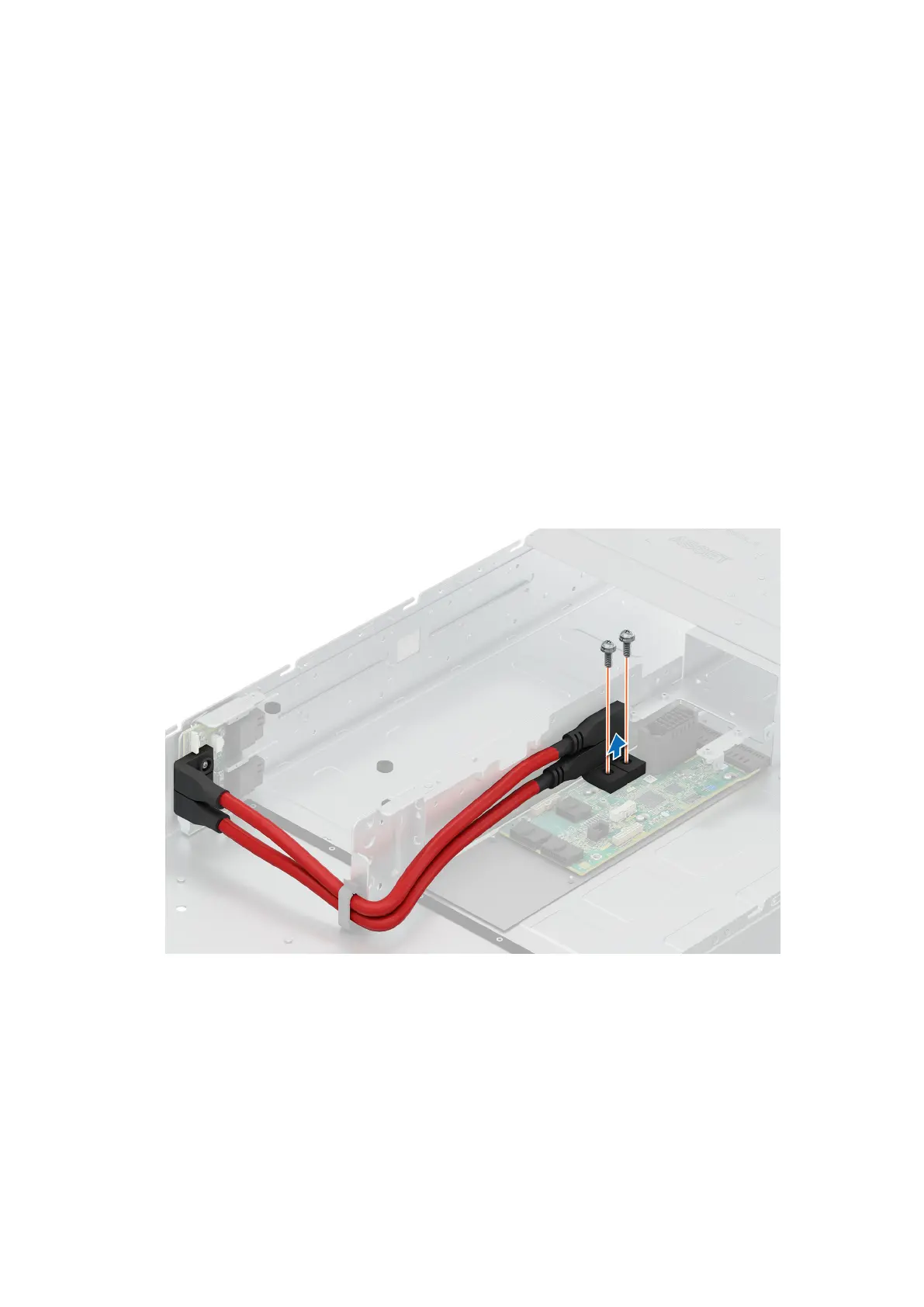

Figure 58. Removing the midplane power cables from the chassis management board
2. Using the Phillips 2 screwdriver, remove the two screws securing the chassis management board to the chassis.
3. Slide the chassis management board toward the front of the system to disengage the board from the connector and lift the
board from the system.
Installing and removing system components
59
