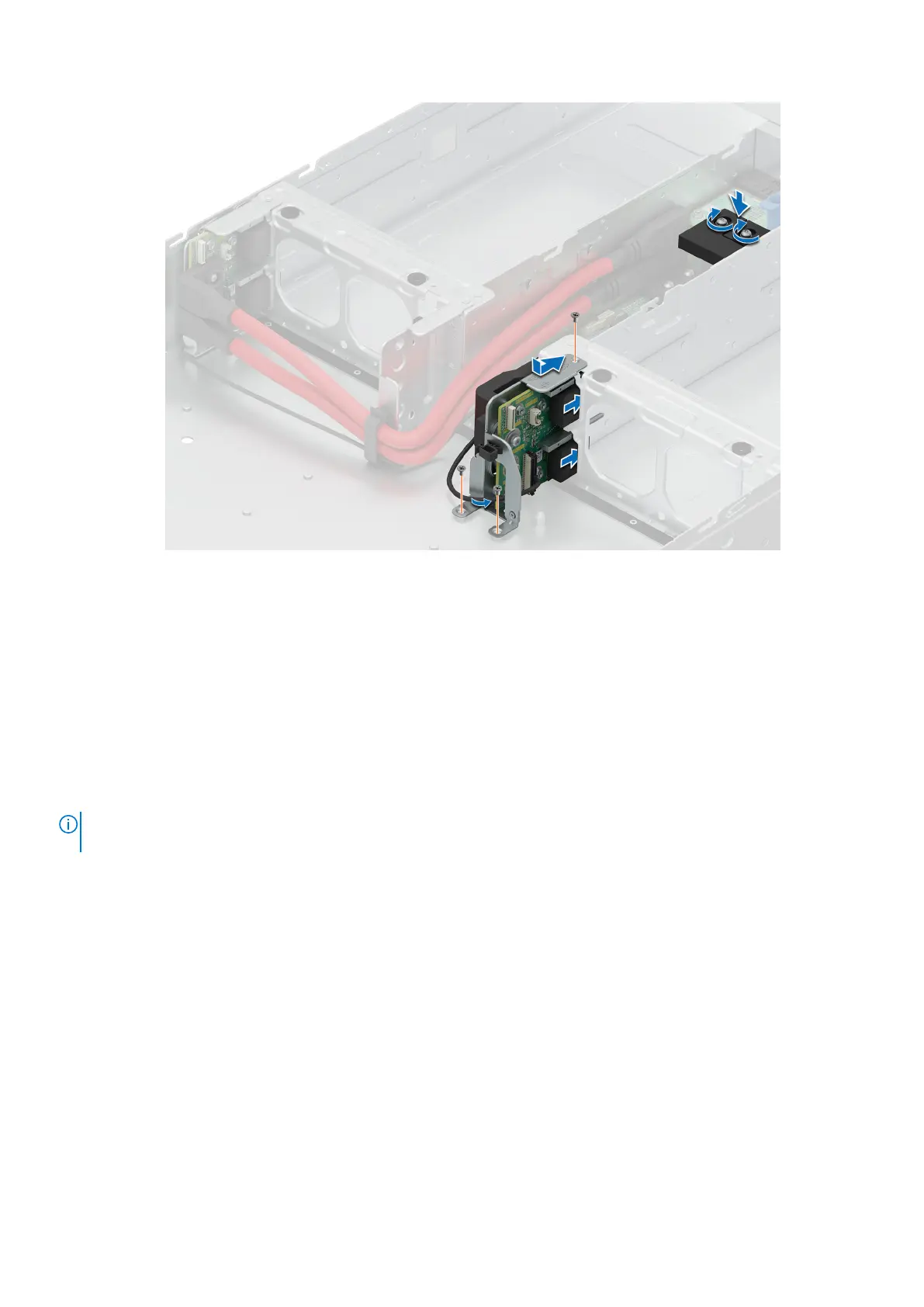

Figure 47. Installing the right midplane
Next steps
1. Reconnect all the disconnected cables.
2. Install the sleds into the enclosure.
3. Follow the procedure listed in After working inside your system.
Removing the left midplane
Prerequisites
NOTE:
Observe the routing of the cables on the chassis as you remove them from the system. Route these cables properly
when you replace them to prevent the cables from being pinched or crimped.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove all the sleds from the enclosure.
4. Disconnect all the cables, except the power cables.
Steps
1. Using the Phillips 1 screwdriver, remove the screws securing the midplane to the chassis.
2. Using the Phillips 2 screwdriver, remove the screws securing the left power cables to the chassis management board.
3. Open the left power cable clips and pull the midplane to the front of the enclosure and lift the midplane out of the chassis.
50
Installing and removing system components
