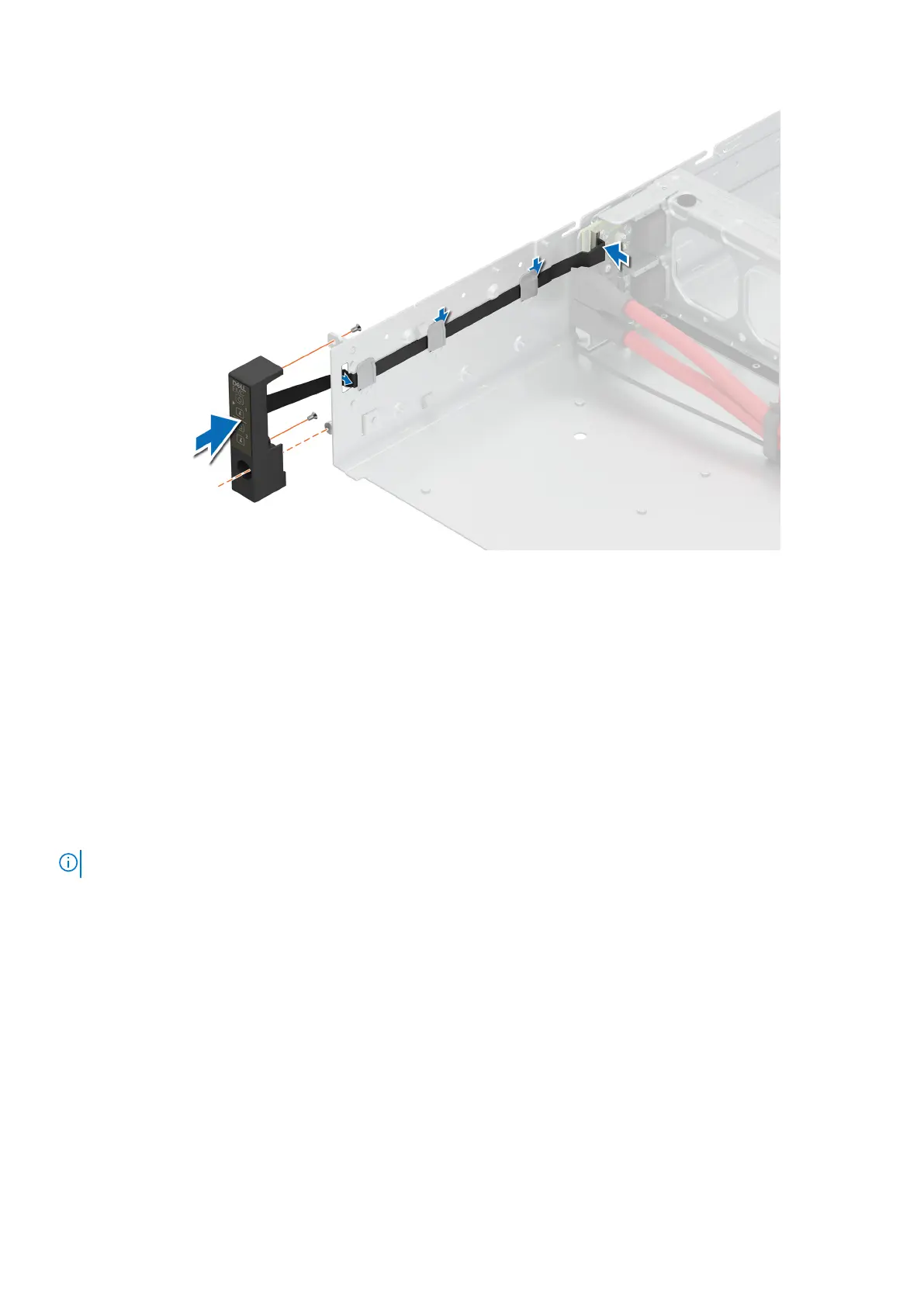

Figure 64. Installing the left control panel assembly
Next steps
1. Reconnect the left control panel cable to the midplane.
2. Install the diskless 80 mm fan cage.
3. Install all 80 mm fans.
4. Install the mid top cover.
5. Follow the procedure listed in After working inside your system.
Removing the right control panel
Prerequisites
NOTE: Observe the routing of the cables on the system as you remove them.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the mid top cover.
4. Remove the 80 mm fans.
5. Remove the diskless 80 mm fan cage.
6. Disconnect control panel cables from the midplane.
Steps
1. Using the Phillips 1 screwdriver, remove the screws securing the right control panel assembly to the chassis.
2. Remove the cable from the cable retention clips on the chassis and the rubber holder on the right midplane.
3. Lift the right control panel assembly from the system.
64
Installing and removing system components
