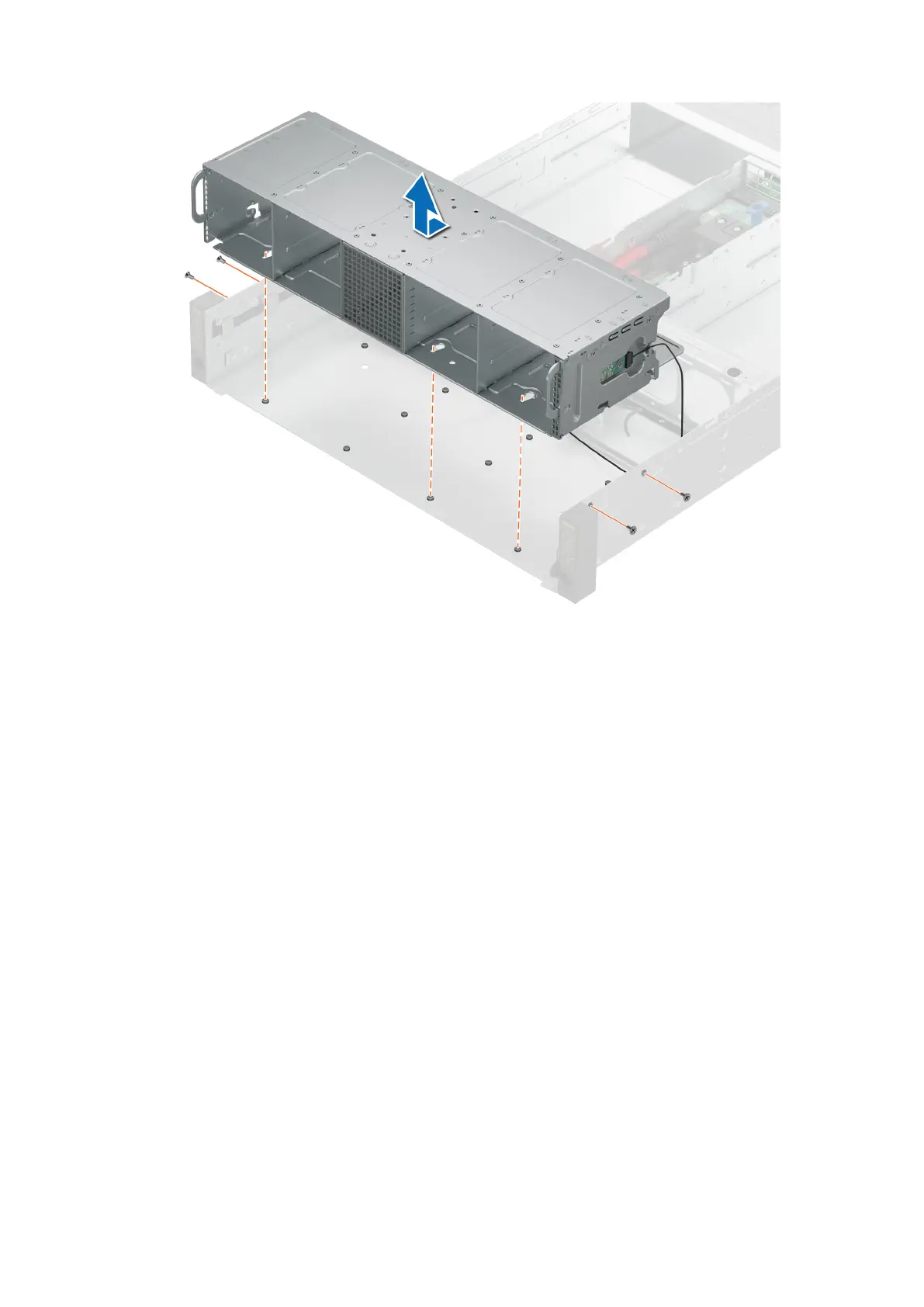

Figure 32. Removing the diskless 80 mm fan cage
Next steps
Replace the diskless 80 mm fan cage.
Installing the diskless 80 mm fan cage
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align and insert the fan cage with the standoffs into the system.
2. Slide the fan cage toward rear of the system.
3. Using the Phillips 1 screwdriver, tighten the screw to secure the fan cage to the system.
36
Installing and removing system components
