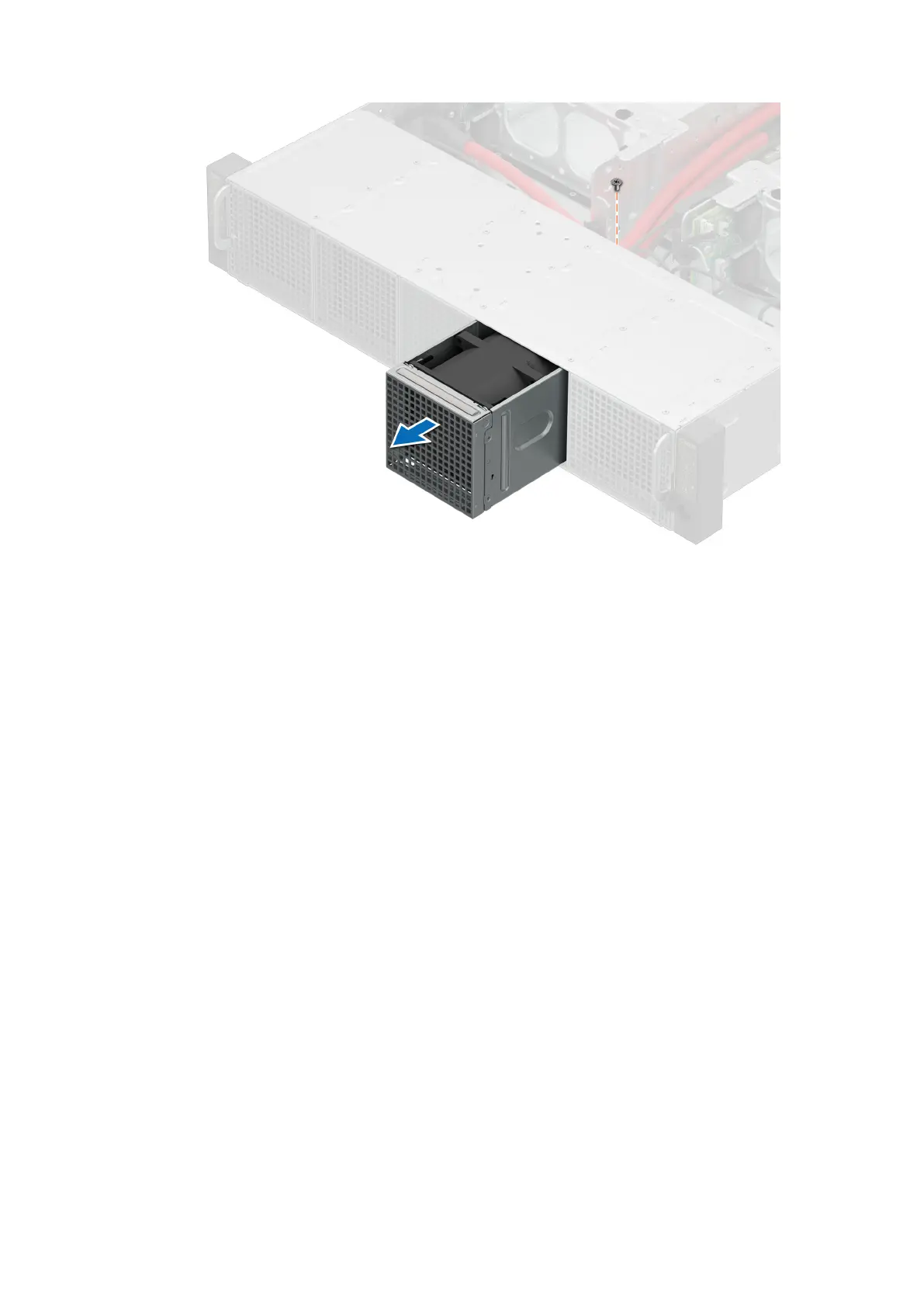

Figure 30. Removing a 80 mm fan
Next steps
1. Replace a 80 mm fan.
2. For more information about the 80 mm fan status, see the management software.
Installing a 80 mm fan
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the fan with the fan slot on the fan cage, and push the fan until it is firmly seated.
2. Using the Phillips 2 screwdriver, tighten the screw to secure the 80 mm fan to the system.
3. Reconnect the fan cable to the connector on the 80 mm fan.
34
Installing and removing system components
