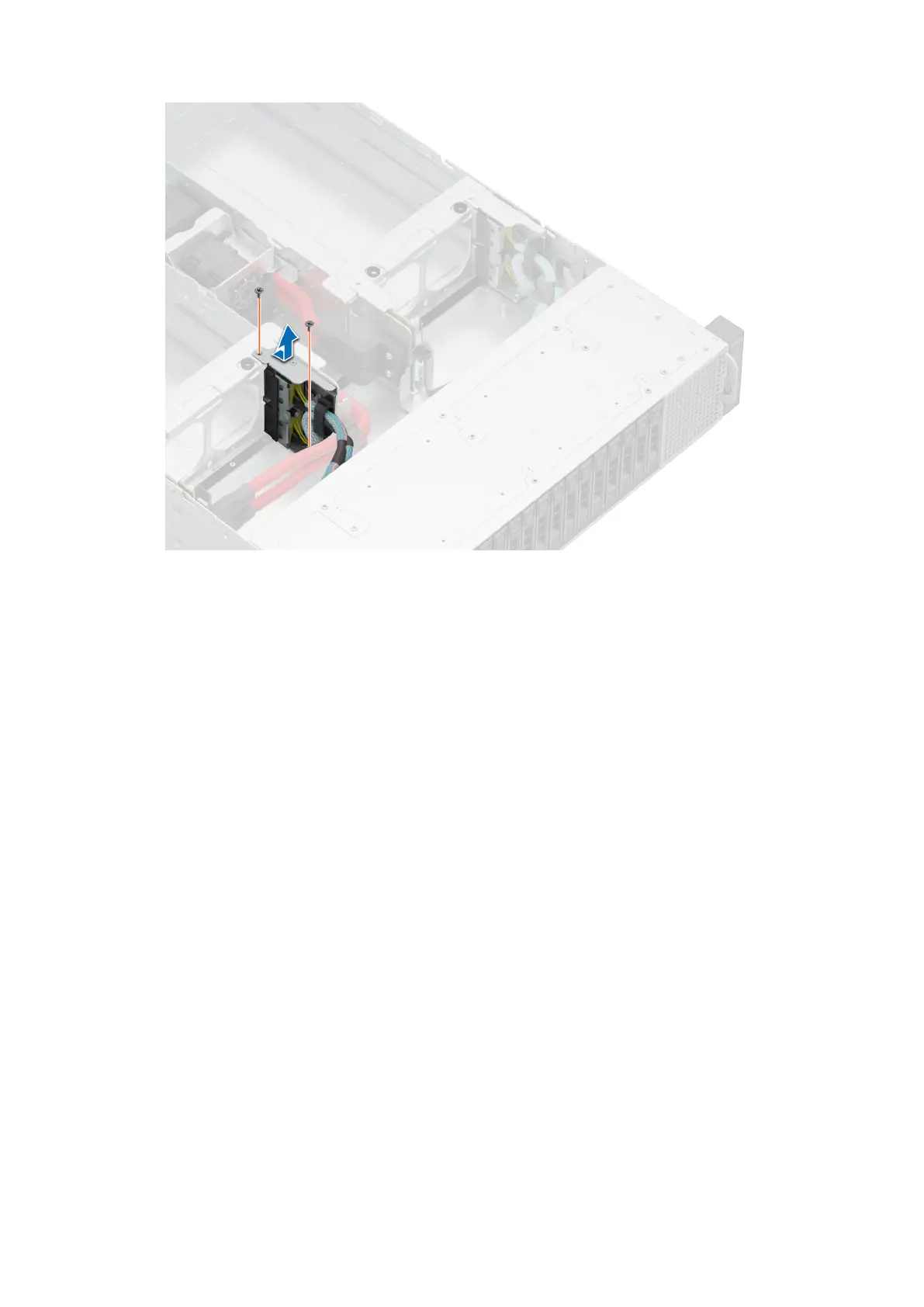

Figure 81. Removing the left examax connector
Next steps
1. Install the left examax connector.
Installing the left examax connector
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system. .
3. Remove all the sleds from the enclosure.
4. Remove the 60 mm cooling fan cage.
Steps
1. Align the examax connector with the standoff on the chassis and slide the connector into place.
2. Using a Phillips 1 screwdriver, tighten the screws on the examax connector to secure it in place.
3. Reconnect all the disconnected cables to the backplane.
