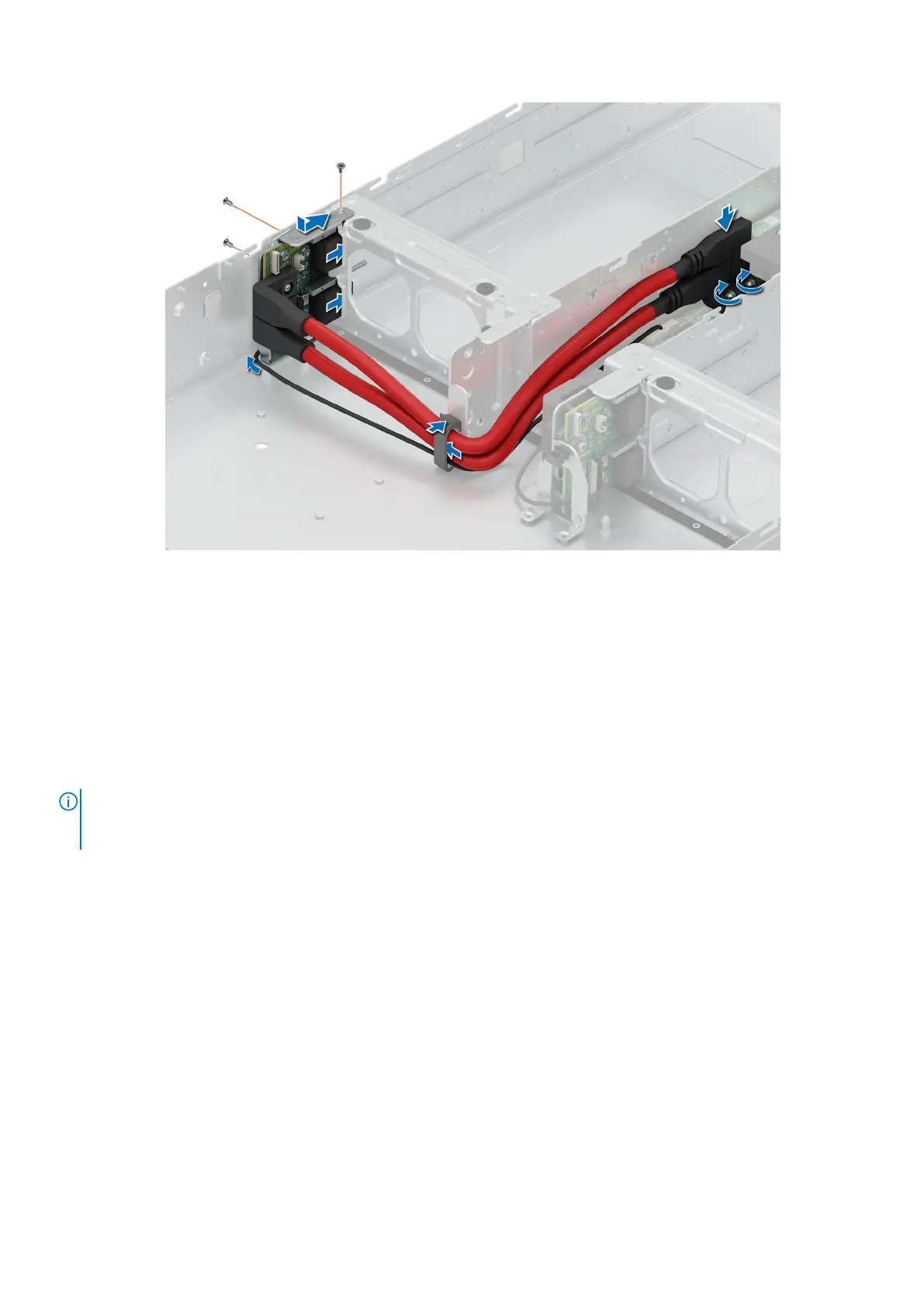

Figure 51. Installing the left midplane
Next steps
1. Reconnect all the disconnected cables.
2. Install the sleds into the enclosure.
3. Follow the procedure listed in After working inside your system.
Power supply unit
NOTE:
While replacing the hot swappable PSU, after next server boot; the new PSU automatically updates to the same
firmware and configuration of the replaced one. For updating to the latest firmware and changing the configuration, see the
Lifecycle Controller User's Guide at https://www.dell.com/idracmanuals.
Removing a power supply unit
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Disconnect the power cable from the power outlet and from the PSU that you intend to remove.
3. Remove the cable from the strap on the PSU handle.
4. Unlatch and lift the optional cable management arm if it interferes with the PSU removal.
For information about the cable management arm, see the system’s rack documentation at https://www.dell.com/
poweredgemanuals.
Steps
Press the orange release latch, and holding the PSU handle slide the PSU out of the PSU bay..
Installing and removing system components
53
