Next steps
Replace the right midplane.
Installing the right midplane
Prerequisites
NOTE: You must route the cables properly on the chassis to prevent them from being pinched or crimped.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove all the sleds from the enclosure.
4. Disconnect all the cables, except the power cables.
Steps
1. Using the Phillips 2 screwdriver, connect and secure the right power cables to the midplane.

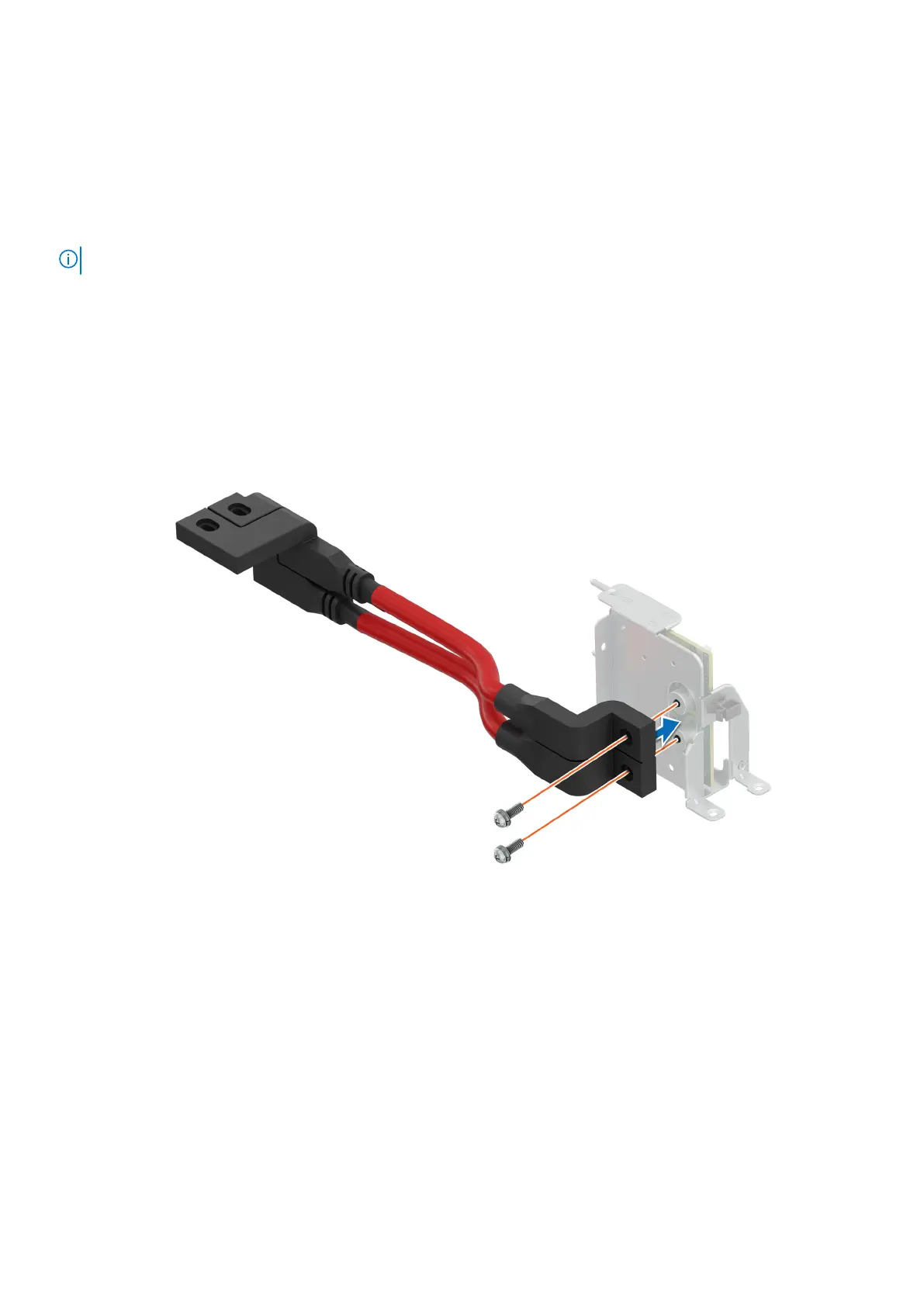

Figure 46. Connect the right midplane power cables to the midplane
2. Align and slide the midplane to the chassis by hooking the right bracket.
3. Using the Phillips 1 screwdriver, install the screws securing the midplane to the chassis.
4. Using the Phillips 2 screwdriver, connect and secure the right power cables to the chassis management board.
Installing and removing system components
49
