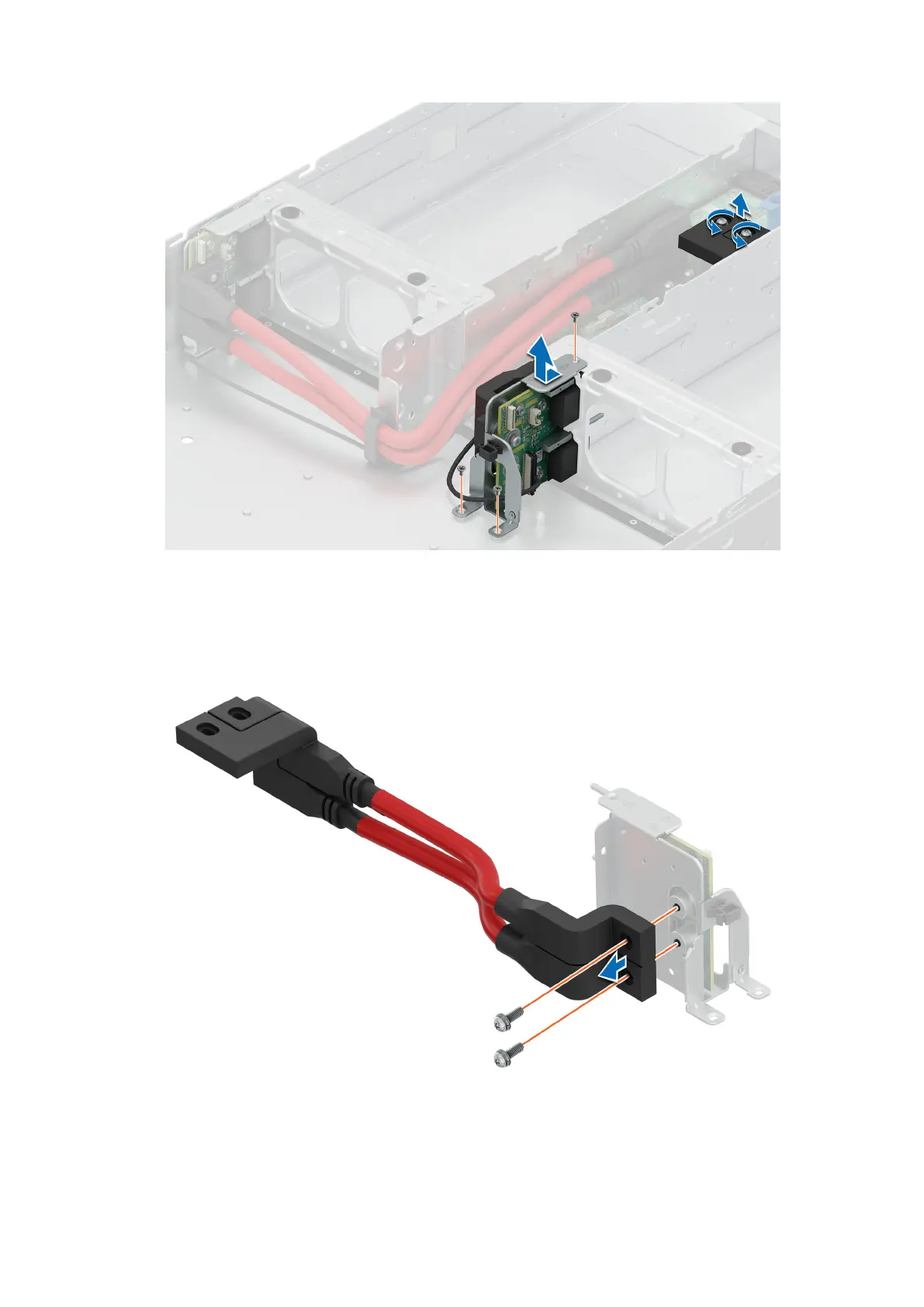

Figure 44. Removing the right midplane
4. Using the Phillips 2 screwdriver, remove the screws securing the right signal cables to the midplane.
Figure 45. Removing the right midplane power cables
48
Installing and removing system components
