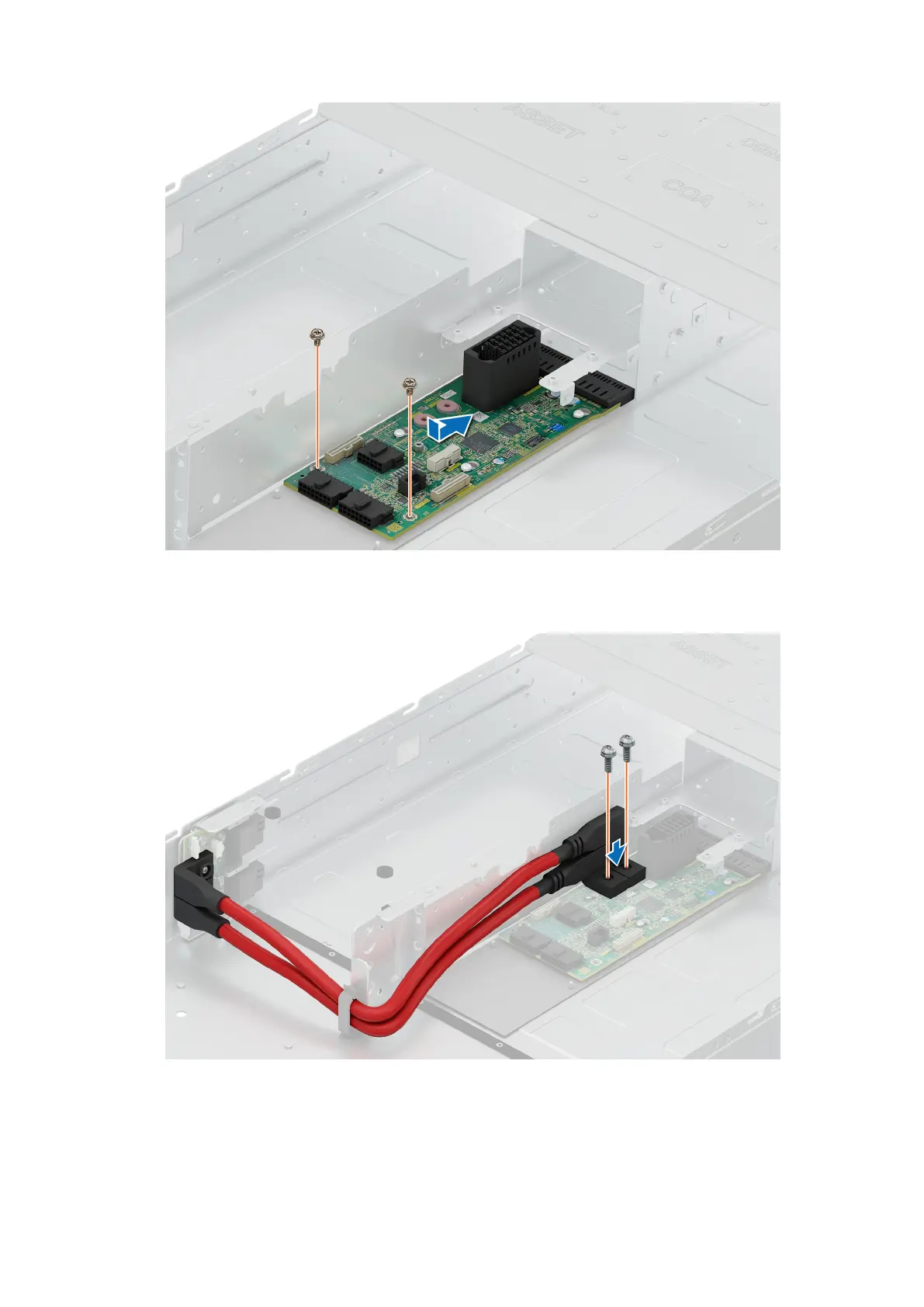

Figure 60. Installing the chassis management board
4. Using the Phillips 2 screwdriver, tighten the screws to secure the midplane power cable to the chassis management board.
Figure 61. Installing the midplane power cables from the chassis management board
Next steps
1. Reconnect all the disconnected cables.
Installing and removing system components
61
