Installation and Operation Manual for RPI M50A
8 Settings
81
Installation and Operation Manual for RPI M50A

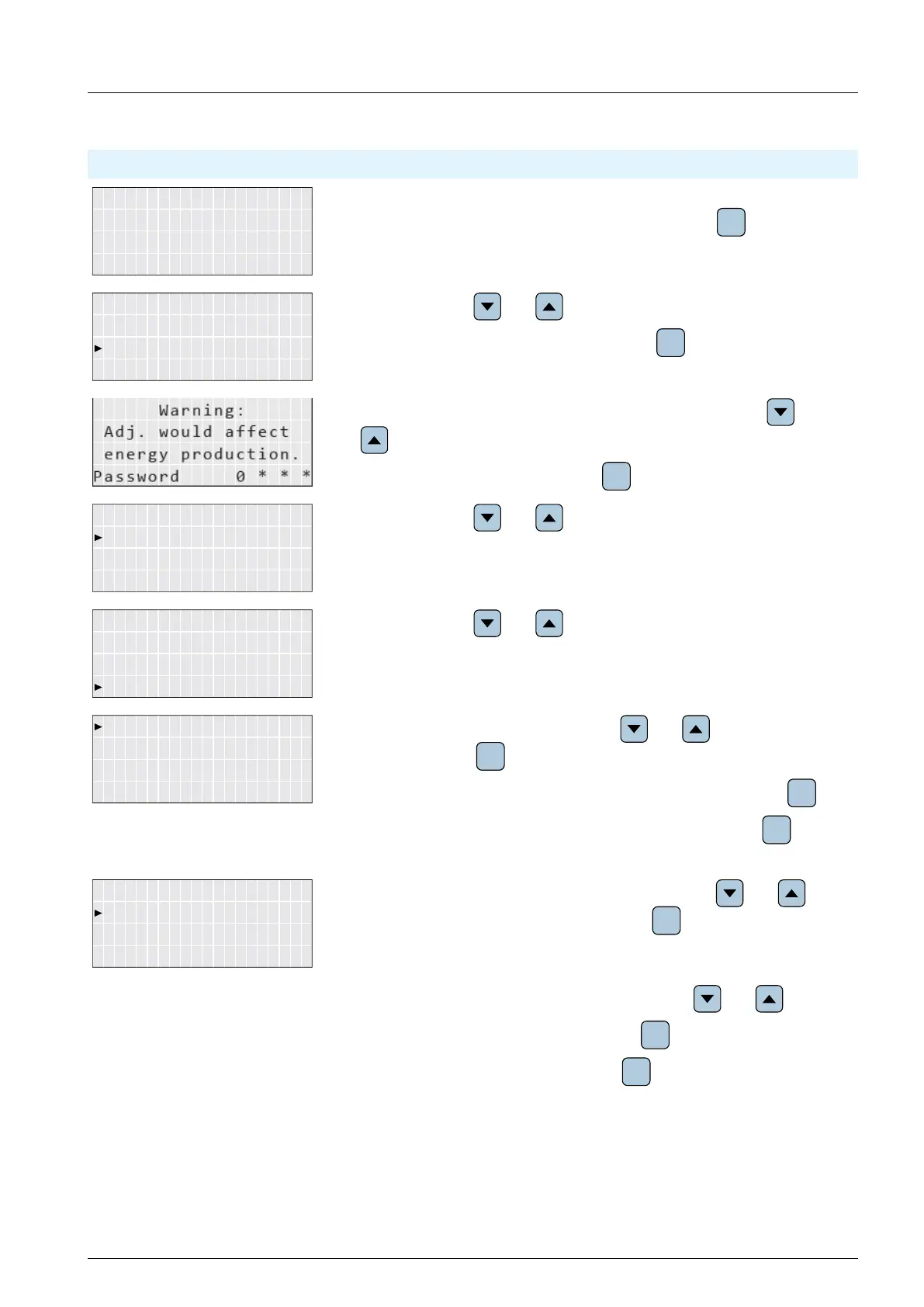

Accessing the menu
Main menu > Active/Reactive Pwr > Active Power Ctrl > Q (V)
E-Today: 0kWh
Power: 0W
Status: On Grid
10.Sep 2014 15:32
1. When the default information is displayed, press any button to open the
main menu. Otherwise, repeatedly press the button
ESC
until the main
menu is displayed.
Inverter Info.
General Settings
Install Settings
Active/Reactive Pwr
FRT
2. Use the buttons and to select Active/Reactive Pwr.
To con rm your selection, press the button
ENT
.
3. The menu is protected by password 5555. Use the buttons and
to set each digit.
To con rm a digit, press the button
ENT
.
Reactive Power Ctrl
Active Power Ctrl
4. Use the buttons and to select Reactive Power Ctrl. The cur-
rent setting is displayed behind the menu entry.
Q(V)
Constant Q
Cos phi (P)
Constant cos phi
5. Use the buttons and to select Q (V). The current setting is
displayed behind the menu entry.
Qs limit: Ind 44%
V2s: 253.0V
V1s: 248.4V
Mode: OFF
6. To change the mode, use the buttons and to select Mode and
press the button
ENT
.
To switch the function on, select a mode and press the button
ENT
.
To switch the function off, select OFF and press the button
ENT
. When
you switch the function off, you can ignore the following steps.
Qs limit: Ind 44%
V2s: 253.0V
V1s: 248.4V
Mode: Curve A
7. If you need to change a parameter, use the buttons and to
select the parameter and press the button
ENT
.
8. To change the parameter value, use the buttons and .
To con rm your setting, press the button
ENT
.
To cancel the action, press the button
ESC
.
9. Repeat steps 7 to 8 for other parameters if you need to change them.
Do not change this setting without prior
consultation with Delta Solar Support.
