MTG2000 Trunk Gateway User Manual V| Dinstar

4.14.5 IP -> PSTN Callee

On the IP -> PSTN Callee interface, you can set rules to change the actual callee number

during IP -> PSTN calling process.

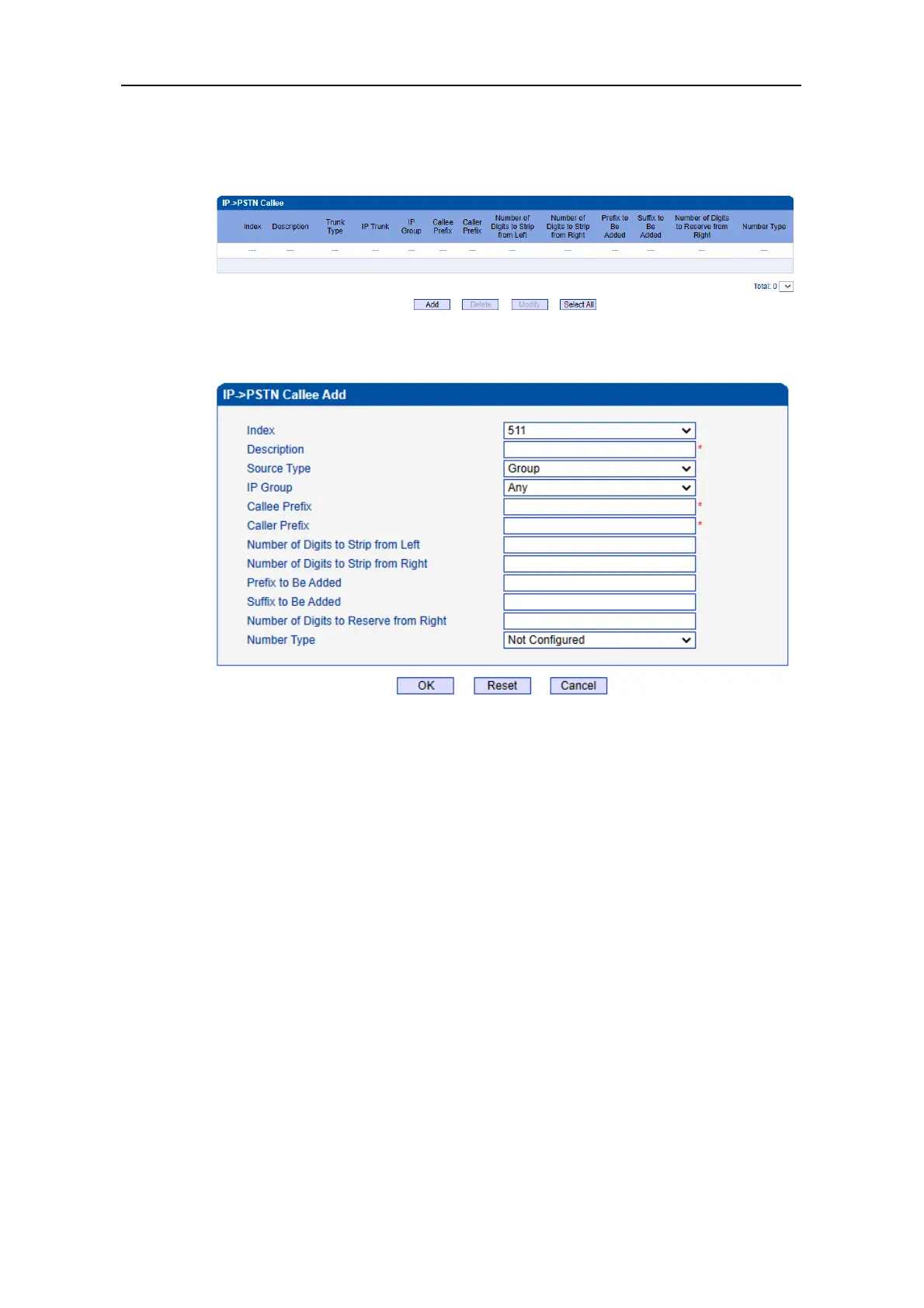

Click Add, and the following interface will be displayed.
