MTG2000 Trunk Gateway User Manual V| Dinstar
8
2.1.3 Installation Tools
⚫ Screwdriver
⚫ Anti-static wrist strap
⚫ Ethernet cables, power wires, telephone wires
⚫ Hub, telephone set, fax, and PBX
⚫ Terminal (can be a PC which is equipped with hyper terminal simulation software)
2.2 Installation of MTG2000
2.2.1 Put MTG2000 into Shelf
1. Use screws to fix a flank on the left and the right of MTG2000 respectively;
2. Put the MTG2000 device into the shelf horizontally;
3. Fix the flanks of MTG2000 on the cabinet by using screws.

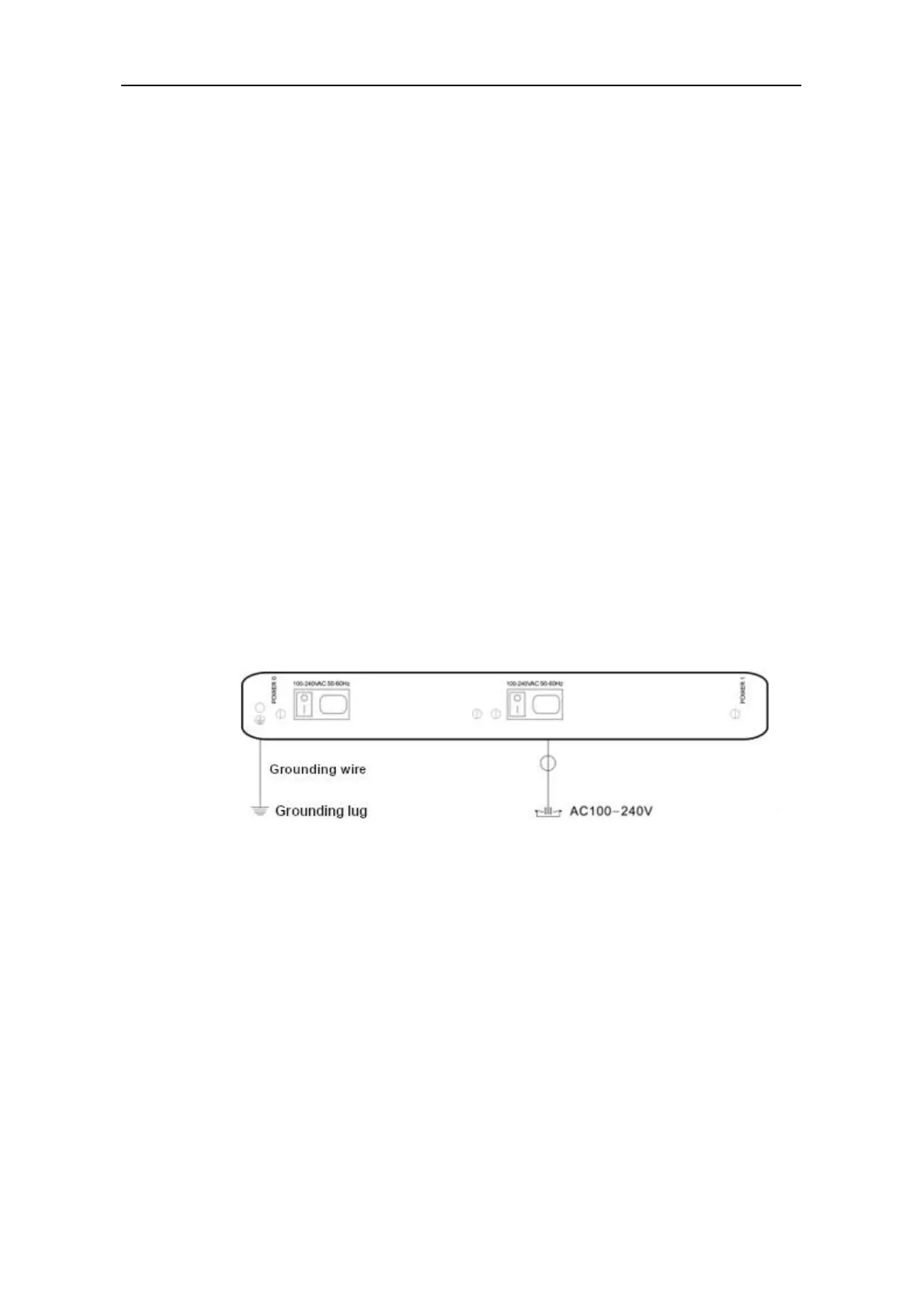

2.2.2 Connect Grounding wire to MTG2000
Connect one end of the Grounding wire to the grounding lug on the back of MTG2000 and
then connect the other end to the grounding bar of the shelf.
2.2.3 Connect MTG2000 to Ethernet
MTG2000 has two network ports, namely the gigabit Ethernet port for services (GE1) and
the gigabit Ethernet port for network management (GE0). It is advised to connect GE1 to
the IP network.
Both GE1 and GE0 can be used to carry out management on MTG2000, but only GE1 is
put in use generally. GE0 is used when there is a need to separate the management on
MTG2000 from the service processing of the MTG2000. As shown below：
