©2014 DJI. All Rights Reserved.
(2) Capacity Display
Displays current battery levels.
(3) Communication
Communicates with main controller about battery voltage, capacity,
current and other relevant information.
(4) Overcharge Protection
Charging stops automatically when battery voltage reaches 12.8V to
prevent overcharge damage.
(5) Over Discharge Protection
Discharging stops automatically when battery voltage reaches 8.4V to
prevent over discharge damage.
(6) Short Circuit Protection
Automatically cuts power supply when a short circuit is detected.
(7) Sleep Protection
Sleep mode is entered after 10 minutes of inactivity to save power.
(8) Charging Temperature
Detection
The battery will charge only when the temperature is between 0
(32°F) and 40 (104°F).
Battery Specifications
Type
LiPo
Capacity
11.1V, 5200mAh
Charging Environment Temperature
0°C~40°C
Discharging Environment Temperature
-20°C~50°C
Charging/Discharging Environment Relative Humidity
80%
Please read the user manual, disclaimer, and battery warnings before use. Users take full responsibility
for all operations and usage.

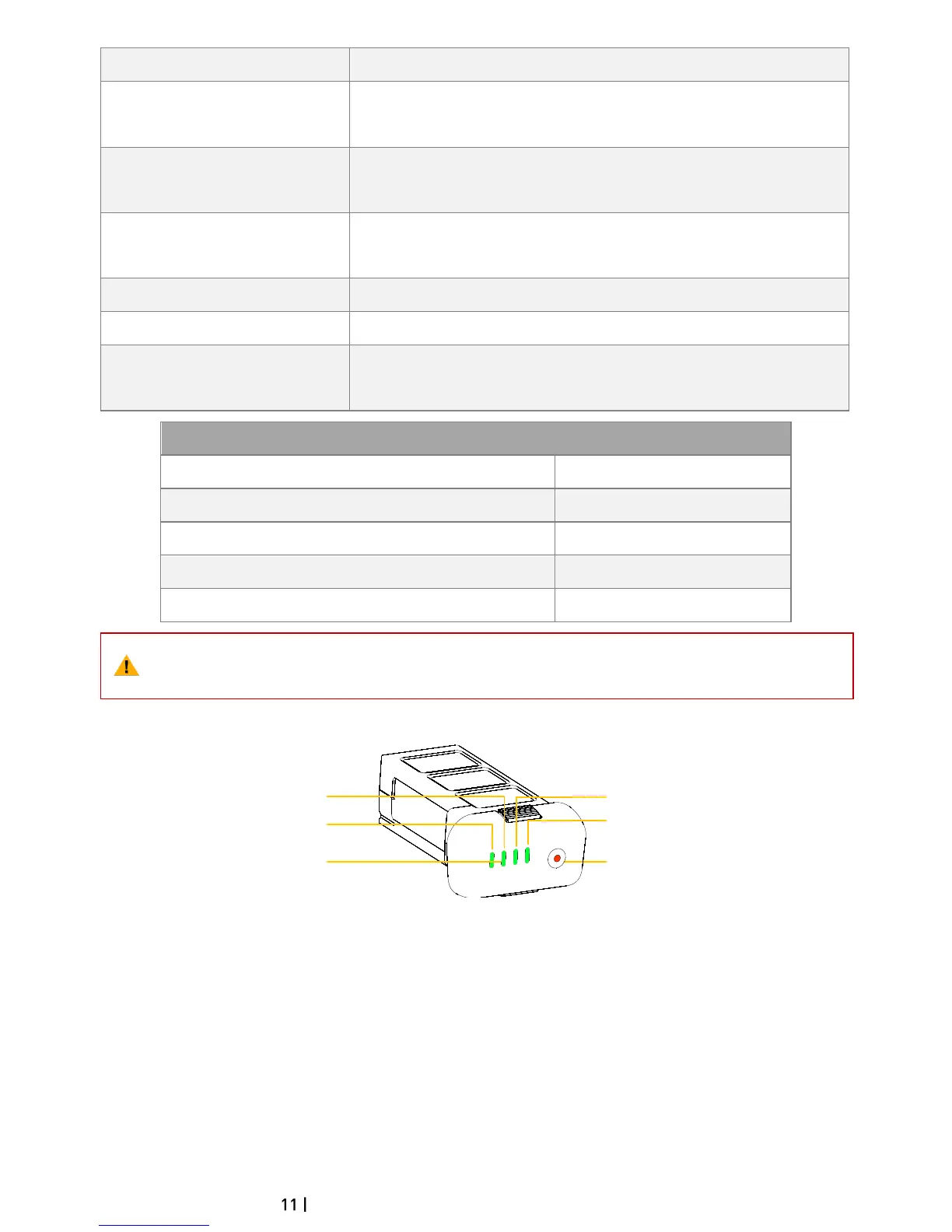

2.2 Usages
Battery Level Indicators
Circular Power Button
( Built-in Power Light)
LED1
LED2
LED3
LED4
Figure 5
Powering on/off
Powering on: Press Circular Power Button once, then press again and hold for 2 seconds to power on. Power Light
will go red and Battery Level Indicators will show the current battery level.
Powering off: Press Circular Power Button once, then press again and hold for 2 seconds to turn off. Battery Level
Indicators will all go out.
Checking the battery level
When the battery is powered off, press the Circular Power Button once. Battery Level Indicators will light up to
