2 Introduction
The Phantom 2 Vision+ package includes: Phantom, Camera, Gimbal, Propulsion System, Flight Control System,
Remote Controller and Wi-Fi Communication System. 5.8 GHz Remote Control Receiver, Flight Control System and
2.4 GHz Wi-Fi Module are inside the Phantom.

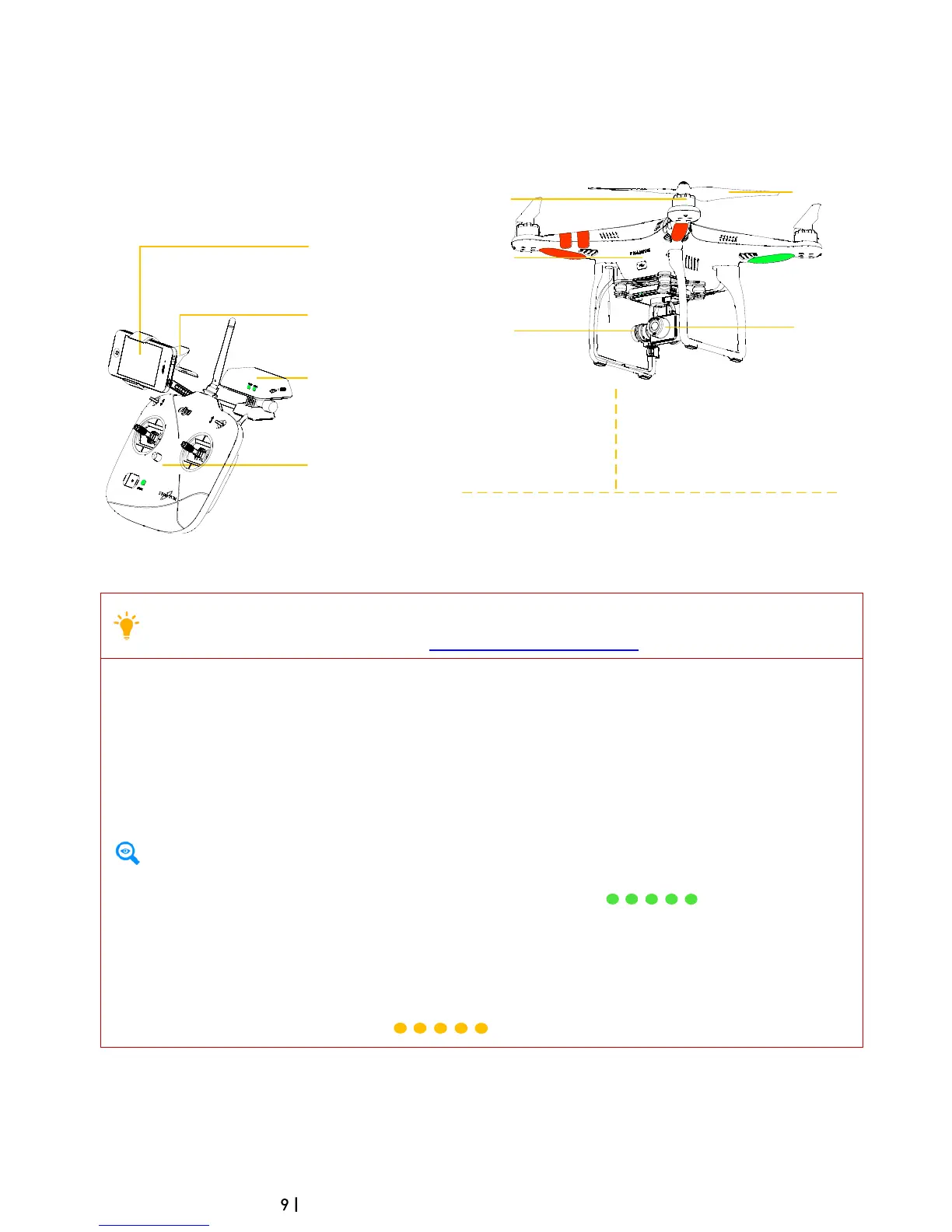

Propeller
Aircraft
Gimbal
Camera
Range Extender
Remote Controller
Phone Holder
Mobile Device,
with DJI VISION App
Inside
·Flight Control System
·2.4GHz Wi-Fi Module
·5.8GHz Receiver
·Electronic Speed Controls (ESCs)
Working Modes
·Phantom - Ready to Fly and Ready to Fly (non-GPS)
·Naza-M - GPS, ATTI., Manual and Failsafe
Remote Controller
·5.8GHz
·2 sticks, 7channels
Outside
·3-axial Stabilized Gimbal
·Camera
·Motors and Props
Motor
Choose between Phantom and Naza-M working modes using Phantom 2 Vision+ Assistant Software. If
using Naza-M mode, please refer to the NAZA-M V2 Quick Start Manual for related instructions.
Phantom: Flight settings will be elected automatically depending on whether 6 or more satellites have
been found. This mode allows users to configure the Remote Controller and gain values, and use Failsafe
and battery level warnings.
Naza-M: Flight settings will be identical to the Naza-M V2. Users can choose between GPS, Attitude, or
Manual mode. They can also access advanced settings including Intelligent Orientation Control (IOC).
Rear LED Flight Indicators will display the flight status according to the Naza-M indicator.
Ready to Fly: When 6 or more GPS satellites have been found, the Flight Control System will lock its
home point and Rear LED Flight Indicators will blink a slow green ( ). This mode is ideal for
beginners.
Ready to Fly (non-GPS): When less than 6 GPS satellites have been found, the Flight Control System will
stabilize itself less than in full Ready to Fly mode and will require more skilled flying. Rear LED Flight
Indicators will blink a slow yellow ( ).
