5 Preparing the Remote Controller
The Phantom 2 Vision+ Remote Controller is a wireless communication device using the 5.8GHz frequency band.
Remote Controller and Phantom are paired before delivery.
The Remote Controller is set to Mode 2 by default. This can be adjusted in the PHANTOM RC Assistant Software.
See Using the PHANTOM RC Assistant Software (Page 69) for details. You can also adjust the power of your
Remote Controller according to national regulations. Please refer to Compliance Version Configuration (Page 27).
Compliance Version: The Phantom 2 Vision+ Remote Controller is compliant with CE and FCC (see the
FCC ID) regulations.
Operating Mode: Mode 1 and Mode 2 refer to different channel mappings.
Mode 1: The right stick controls throttle.
Mode 2: The left stick controls throttle.
The Range Extender and Phone Holder are already mounted on the Remote Controller. Twist the Phone
Holder to face outwards and fix it in position for mobile device installation.
Large smartphones and tablets are not recommended for the Phone Holder as they do not fit.

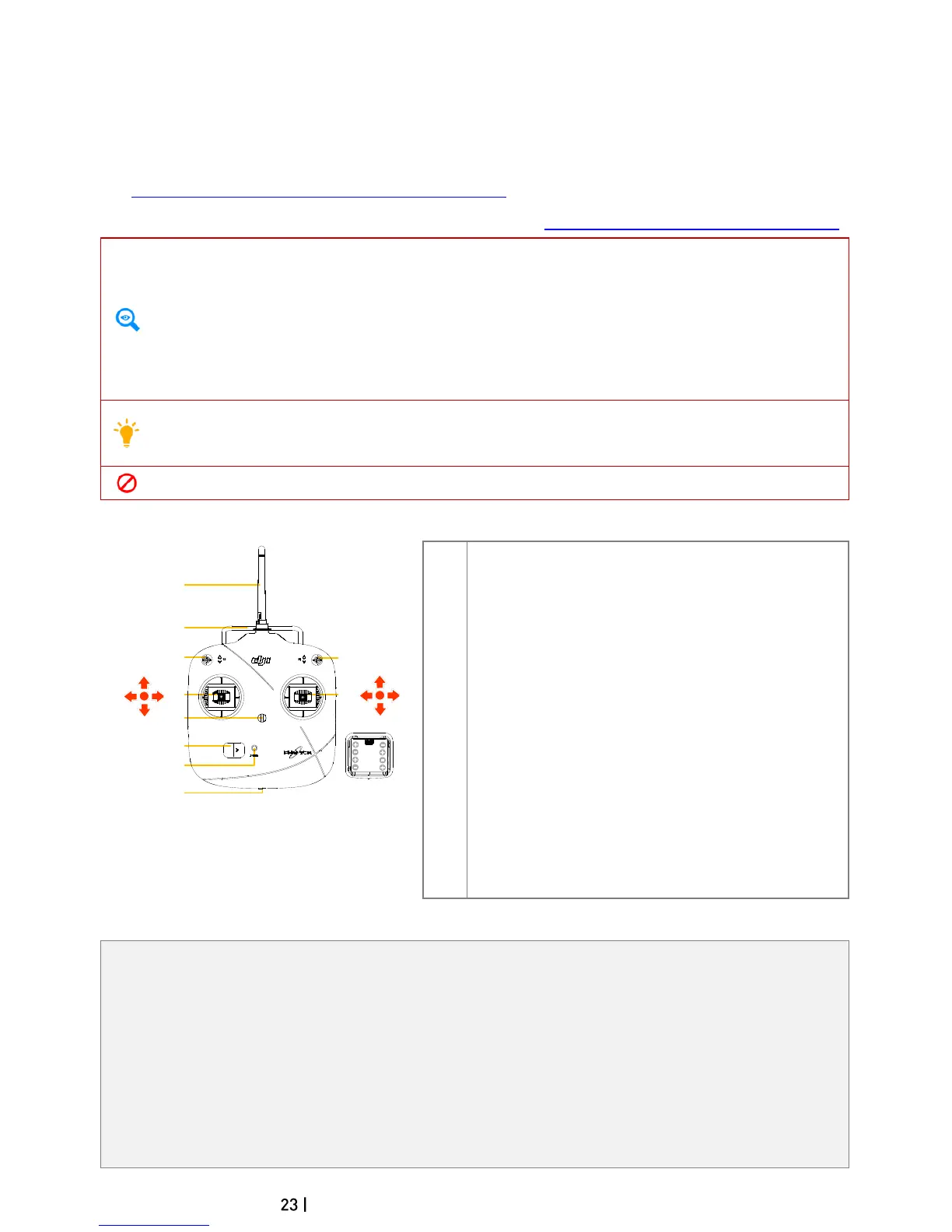

5.1 The Remote Controller
[1]
[2]
[4]
[3]
[8]
[9]
[11]
J2
J1
J3
J4
[6]
[7]
[5]
[10]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
Antenna
Carrying Handle
Switch S1
Switch S2 (Reserved)
Right Stick (J1: Roll [left & right], J2: Pitch [front & back])
Left Stick (J3: Throttle [up & down], J4: Yaw [rotation])
Neck Strap Attachment
Power Switch
Power LED
RC Assistant Port(Micro-USB Port)
Battery Compartment (On the back)
5.2 Power on the Remote Controller
1. Install four AA batteries into the battery compartment on the back of the Remote Controller. Pay
attention to positive and negative.
2. Set S1 and S2 switches to the upper most position and place all sticks in the mid-point.
3. Toggle power switch to the right to switch on.
4. The Remote Controller will then beep. If it is set to CE compliance, then there will be one beep while the
FCC compliant version will beep twice. The Power LED will blink green quickly indicating that the
Remote Controller and receiver are binding. Once binding is completed, the Power LED will change to a
