Accelerometer Sensor Mode
The gimbal pitch movement is controlled by moving your mobile device. Pitch forward to pitch camera down and
backward to pitch camera up.

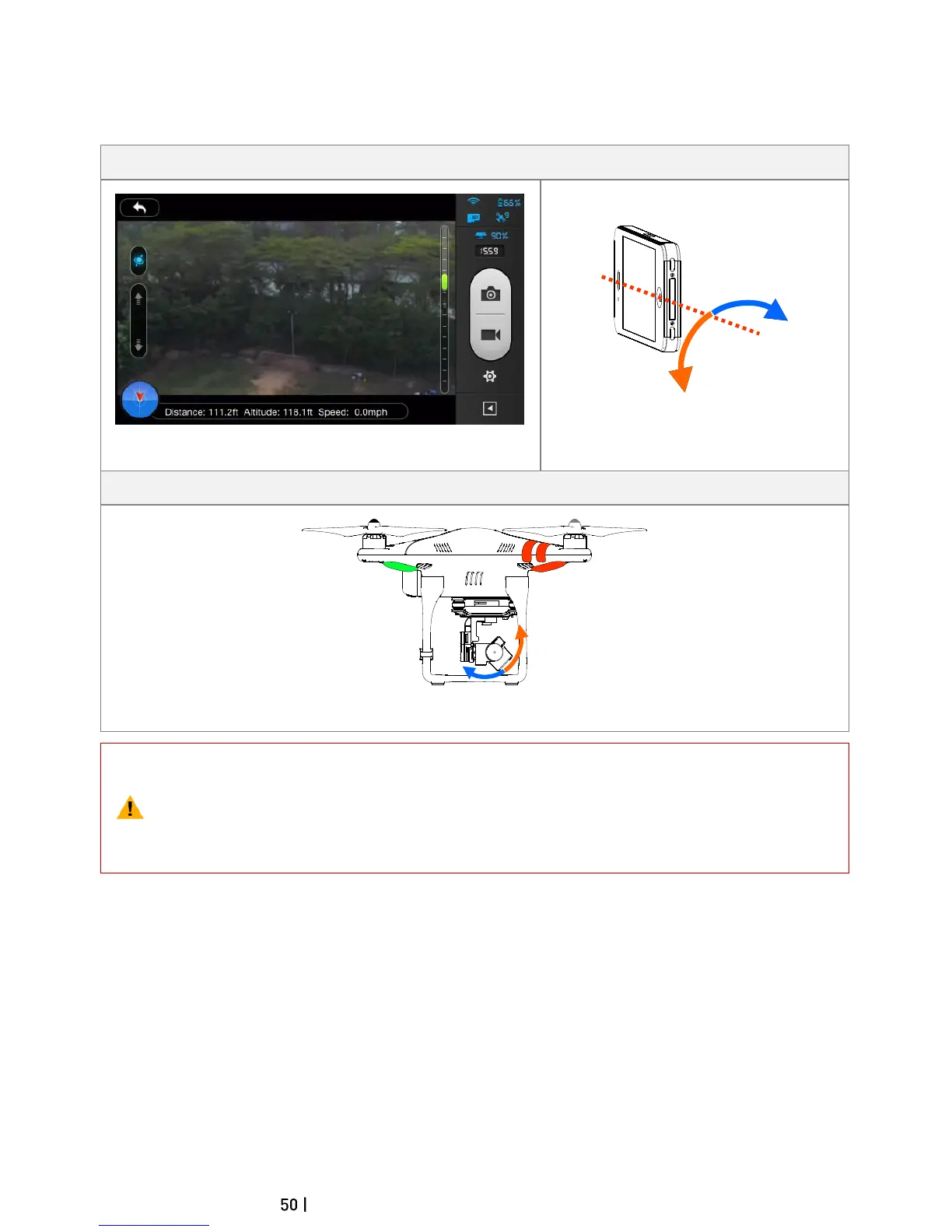

Gimbal pitch control (Accelerometer Sensor Mode)
Figure 65
Figure 66
Gimbal pitch movement
Figure 67
In Accelerometer Sensor Mode, the pitch angle indicator will show a grey area. When the green pitch
indicator is inside the grey area, the camera will move according to pitch gestures. When the indicator
reaches the boundary of the grey area, pitch gestures will control the camera’s pitch speed at a
constant rate.
[3] Flight Attitude and Radar Function
Flight attitude is indicated by the flight attitude icon.
(1) The red arrow shows which direction the Phantom 2 Vision+ is facing.
(2) Light blue and dark blue areas indicate pitch.
(3) Pitching of the boundary between light blue and dark blue area shows roll angle.
