3 Preparing the Phantom 2 Vision+
The Phantom 2 Vision+ is a quadrotor with a built-in Flight Control System with integrated gimbal and camera. It
features an FC Assistant Port, Camera Data Port and a specialized battery compartment for its flight battery. All
these features make the Phantom 2 Vision+ easy to assemble and configure.
3.1 Introduction
[1]
[2]
[7]
[3]
[4]
[5]
[6]
[8]
[10]
[11]
[9]

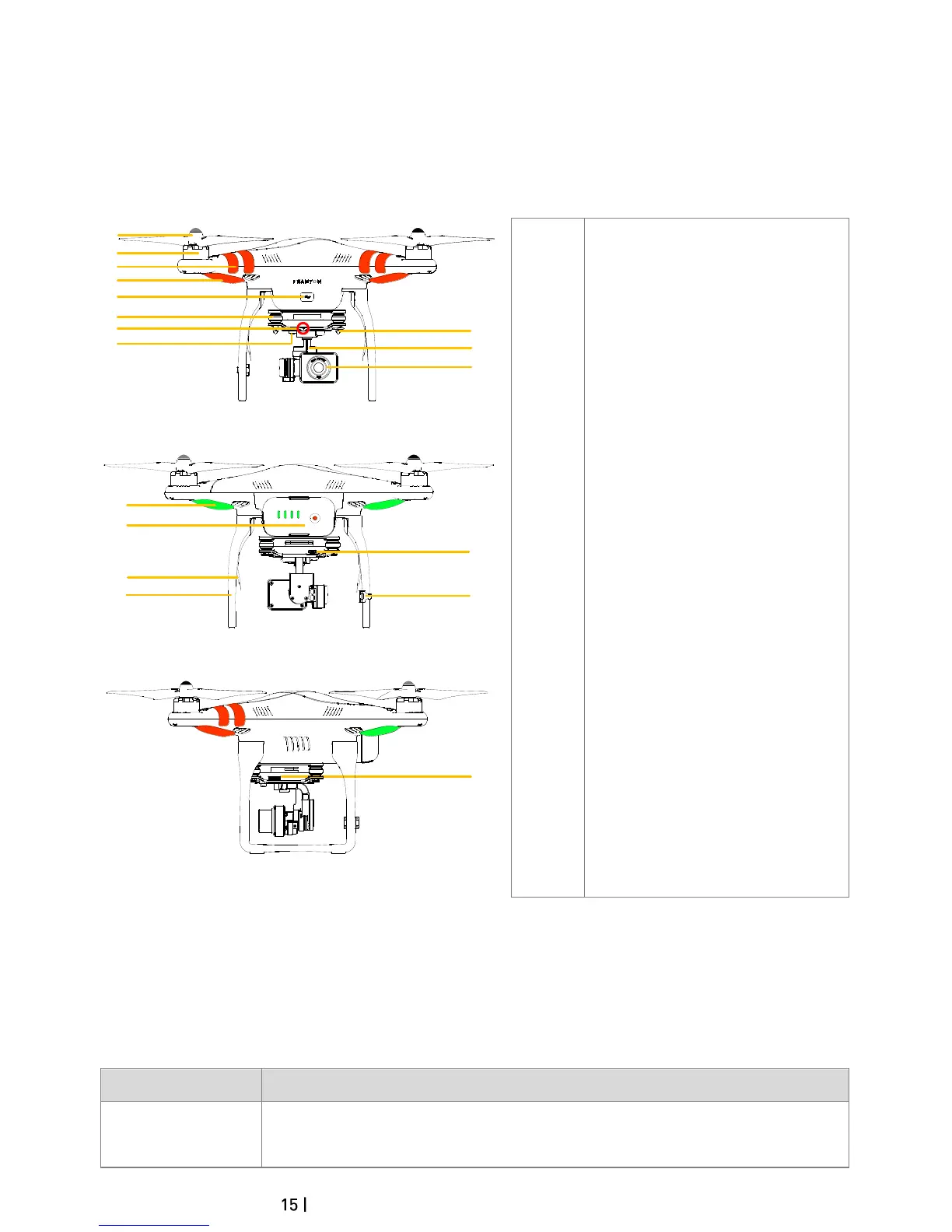

Figure 8
[12]
[13]
[15]
[14]
[16]
[17]
Figure 9
[18]
Figure 10
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
Propeller
Motor
Front Sticker
Front LED
FC Assistant Port (Micro-USB port)
Vibration Absorber
Camera LED Indicator
Camera Function Button
Anti-drop Kit
3-axial Stabilized Gimbal
Camera Lens
Rear LED Flight Indicator
DJI Smart Flight Battery
Receiver Antenna
Landing Gear
Camera Data Port(Micro-USB port)
Compass
Micro-SD Slot
3.2 Built-in Flight Control System
The Phantom 2 Vision+ is equipped with a DJI Naza-M V2 Flight Control System. This provides incredible ease of
use and stability. Pilots can control the Phantom’s movements in many directions, including pitch (forwards and
backwards), roll (left and right), elevator (up and down) and yaw (turn left or right). The flight control system also
can provide IOC, Failsafe and battery level warnings.
Modules
Functions
Main Controller
Acts as the brains of the complete flight control system, responsible for connecting
and controlling all the modules together.

dji PHANTOM 2 VISION+ Specifications

General

Camera	14 MP
Gimbal	3-axis
Flight Time	25 minutes
Battery	5200 mAh LiPo 3S
GPS	Yes
Diagonal Size	350 mm
Max Ascent Speed	6 m/s
Max Descent Speed	2 m/s
Max Speed	15 m/s
Return to Home	Yes
Video Resolution	1080p
Control Range	700 meters
Weight	1242 g
Operating Temperature	-10°C to 50°C
Live View	Yes
