Digital Monitoring Products XR500 Series Installation Guide
22
INSTALLATION
Reset and Tamper Headers
19.1 J16 Reset Header
The reset header is located just above the terminal strip on the right side of the circuit board and is used to reset
the XR500 Series microprocessor. To reset the panel when rst installing the system, install the reset jumper before
applying power to the panel. After connecting the AC and battery, remove the reset jumper.
To reset the panel while the system is operational, for example, prior to reprogramming, install the reset jumper
without powering down the system. Remove the reset jumper after one or two seconds.
After resetting the panel, begin programming within 30 minutes. If you wait longer than 30 minutes, you must reset
the panel again.
J6
Interface
Card
Expansion
Connector
Momentarily place the Reset
jumper over both of the J16
pins to reset the panel.
AC
12345678 10 11 12 13 14 15 16 17 18 19
02122232425262728
+B BELL GND SMK GNDREDYEL GRNBLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+Z9– Z10+ Z10–AC –B GND GND GNDGND
K6 K7
Output 1Output 2
J3
Phone Line
J10
J22
LX-Bus
Battery
Start
J23
J21
RS-232
Power
LED
J8
PROG
J4
Tamper
J16
Reset
Out1Out2
Outputs 3-6
J11
3
4
5
6
J2
J1
Ethernet
R
L
X
OVC
Link LED
Activity LED

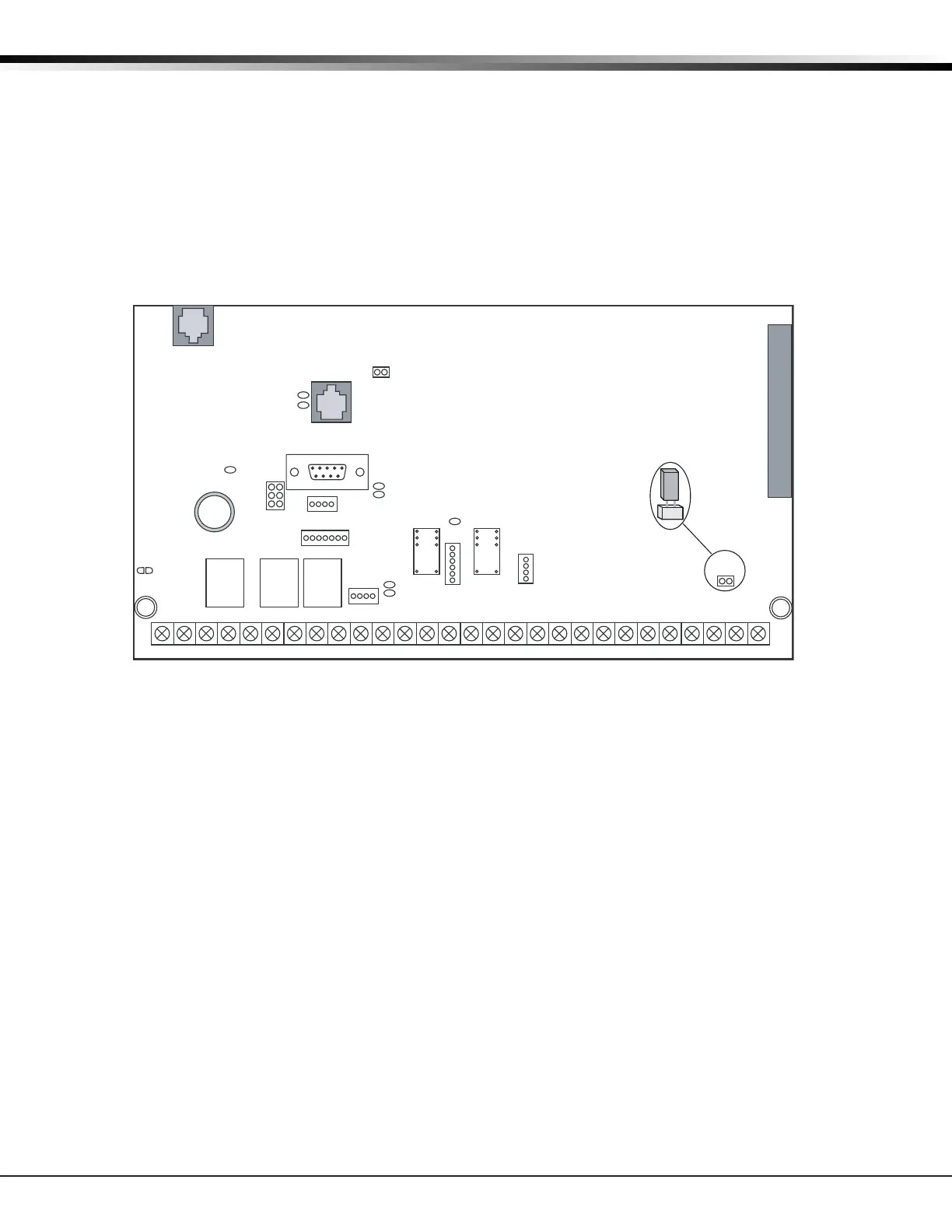

Figure 12: XR500 Series Panel Showing the Reset Jumper
19.2 J4 Tamper Header
The J4 header is for use with the optional DMP 306 Tamper Harness. The harness connects to one or more tamper
switches mounted inside the panel enclosure to supervise against unauthorized enclosure opening or removal. Refer
to the wiring diagram on the enclosure door for correct tamper switch wiring.
How the Tamper Works
If the enclosure is opened or removed while one or more of the system areas are armed, a panel tamper alarm is
indicated. If all areas are disarmed, a panel tamper trouble is indicated.
