WIRING DIAGRAMS

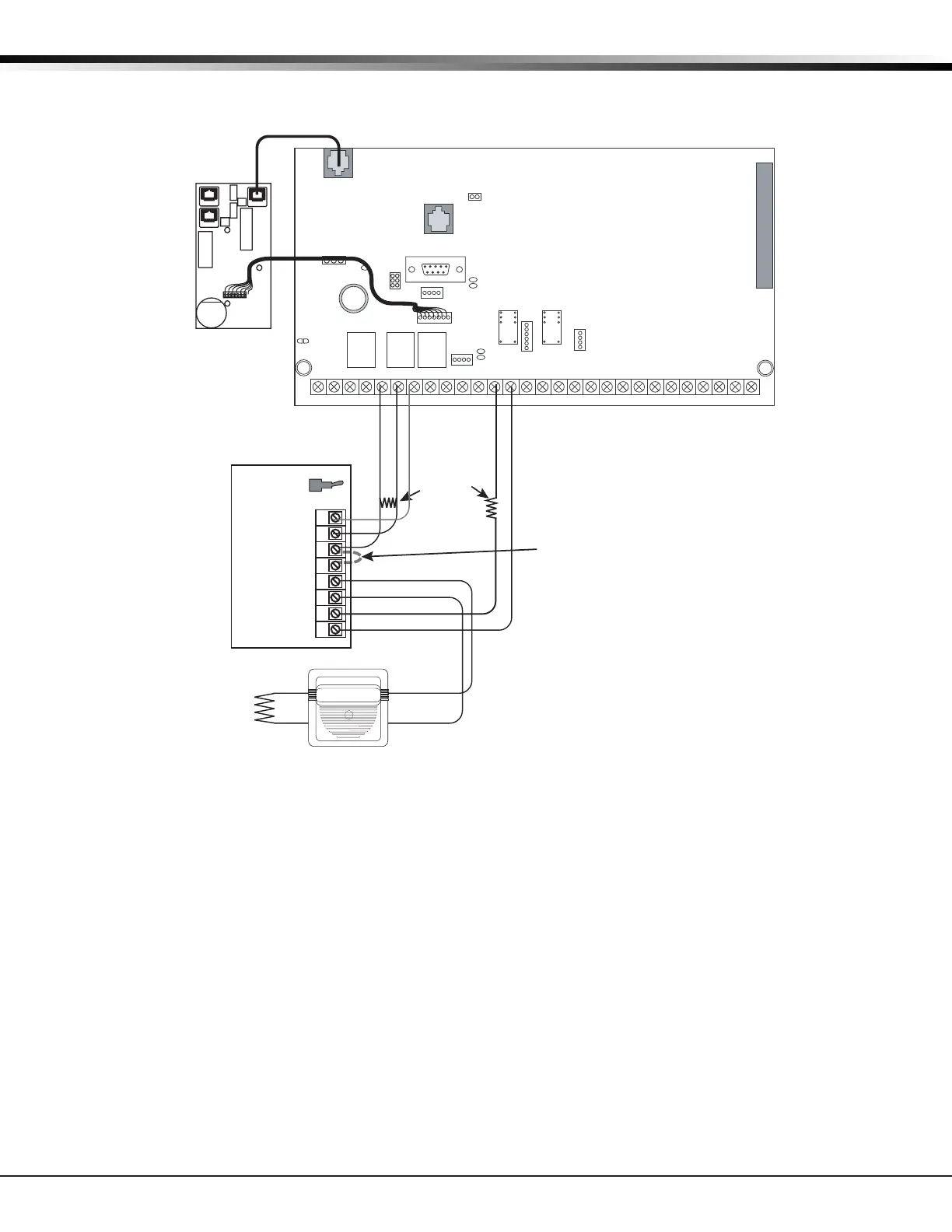

36.2 866 Class B Style W using Single Notication Appliance
AC
1234 5678 10 11 12 13 14 15 16 17 18 199202122232425262728
+B BELL GND SMK GNDRED YEL GRN BLKZ1Z2Z3Z4Z5Z6Z7Z8 Z9+ Z9- Z10+ Z10-AC -B GND GND GNDGND
K6 K7
Output 1
Output 2
J3
Phone Line
J10
J22
LX-Bus
Battery
Start
J21
RS-232
Power LED
J8
PROG
J4
Tamper
Out2
J11
3
4
5
6
J2
J1
Ethernet
XR500 Series Command
Processor™ Panel
PANEL
MAIN BACKUP
P3
J4
J5
K1
J1
F2
F1
J2
K2
P10
DS1
Buzzer
+
–
Model 310
1K EOL
Listed, Polarized
Notification Appliance
1 AUX PWR
2 GND
3 Alarm In
4 Bell PWR In
5 Bell Out +
6 Bell Out -
7 Bell Trouble
8 Bell Trouble
Normal/Silence Switch
Model 308
10K EOL
DMP Model 866
45mA @ 12 VDC
The 866 Notification
Appliance Circuit
Module in alarm draws
up to 31mA through
its Terminal 3 Alarm
Input and 45mA from
its Terminal 1 Aux
Power Input.
The Bell Output programming for Fire type
zones must be set to Temporal.
Note: Terminals 3 and 4 jumper together
to supply Bell Power from the panel
See the Notification Appliance section
for a list of appliances.
The maximum
voltage drop
between the panel
Bell Output and the
Model 308 EOL is 1
VDC when a
separate power
supply is not used.
Only one notification appliance may be used when
not using a sync module.
Regulated
12 VDC
J6 Interface
Card
Expansion
Connector
J23
R
L
X
J12
75VA
50VA
