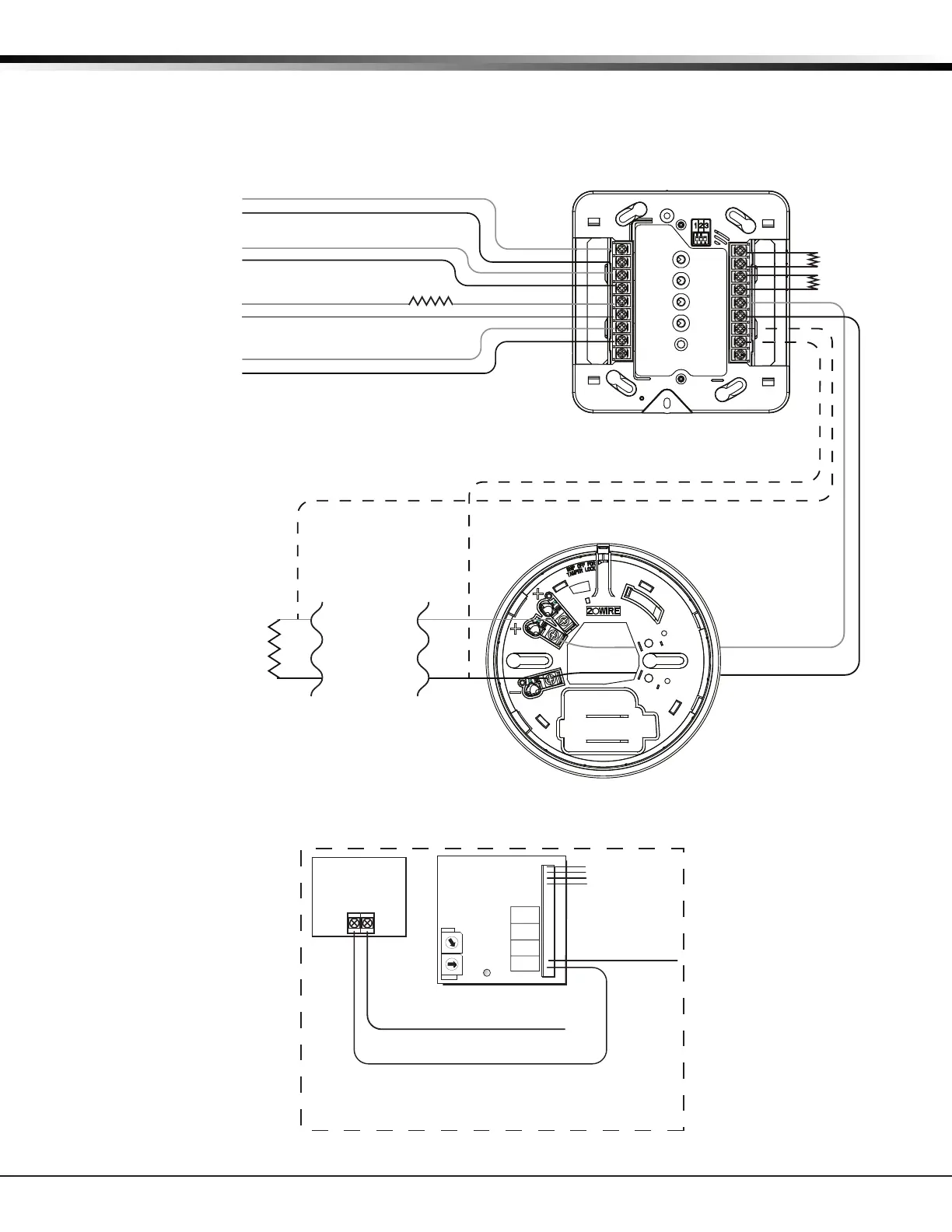

WIRING DIAGRAMS
36.21 System Sensor i4 Series Smoke and CO Detectors
Using A Single COSMOD2W Module
To Panel or Zone Expander Zone
To Panel or Zone Expander GND
Zone EOL
Zone EOL
Zone EOL
IDC +
IDC -
To detector (+)
To detector (-)
To 716 Output Common (Gray)
To COSMOD2W Power In (-)
N/C to COSMOD2W
Power In (+) (Violet)
Install 3.9K EOL Resistor
at last detector
(supplied with
COSMOD2W)
To next
COSMO-2W. Up
to 12 detectors
can be installed
for each
COSMOD2W
COSMOD2W
COSMO-2W
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
J1
K1
K2
K3
K4
TX D
O
N
E S
T
E
N S
Rotary
Switches
716
Output Expander
To Panel
LX-Bus
Power Supply
***
+ DC —
*Optional Power Supply connection
If using optional Power supply, program Output
Options Fire Output for the 716 relay to provide
Sensor Reset capability.
To Panel SMK or Optional Power Supply
*
To GND from Panel or Power Supply
To Panel or Zone Expander
To Panel or Zone Expander GND
To Panel or Zone Expander Zone
To Panel or Zone Expander GND
Program Smoke zone
as type Fire (FI)
Program CO zone as type
Emergency (EM) and
include CO in Zone name.
Program Maintenance zone
as type Auxiliary (AUX)**
** The COSMOD2W sends a smoke maintenance inquiry to the
smoke detectors every 24 hours. If a response indicating a
maintenance condition is received, such as the detector
needs cleaning, the maintenance zone will indicate a
trouble condition.
The CO detector reports any maintenace conditions on the
Emergency zone.
Power In +
Power In -
Smoke +
Smoke -
Maint +
Maint -
CO Alarm +
CO Alarm -
See i4 Series Interface Module Installation and Maintenance Instructions for additional information.
*** Listed for Fire Applications, output limited power, regulated
Loop Style D wiring
To silence detectors
perform a Sensor Reset
