DMP Electronics XR500N SERIES User Manual

XR500 Series Installation Guide Digital Monitoring Products
39
WIRING DIAGRAMS
Wiring Diagrams

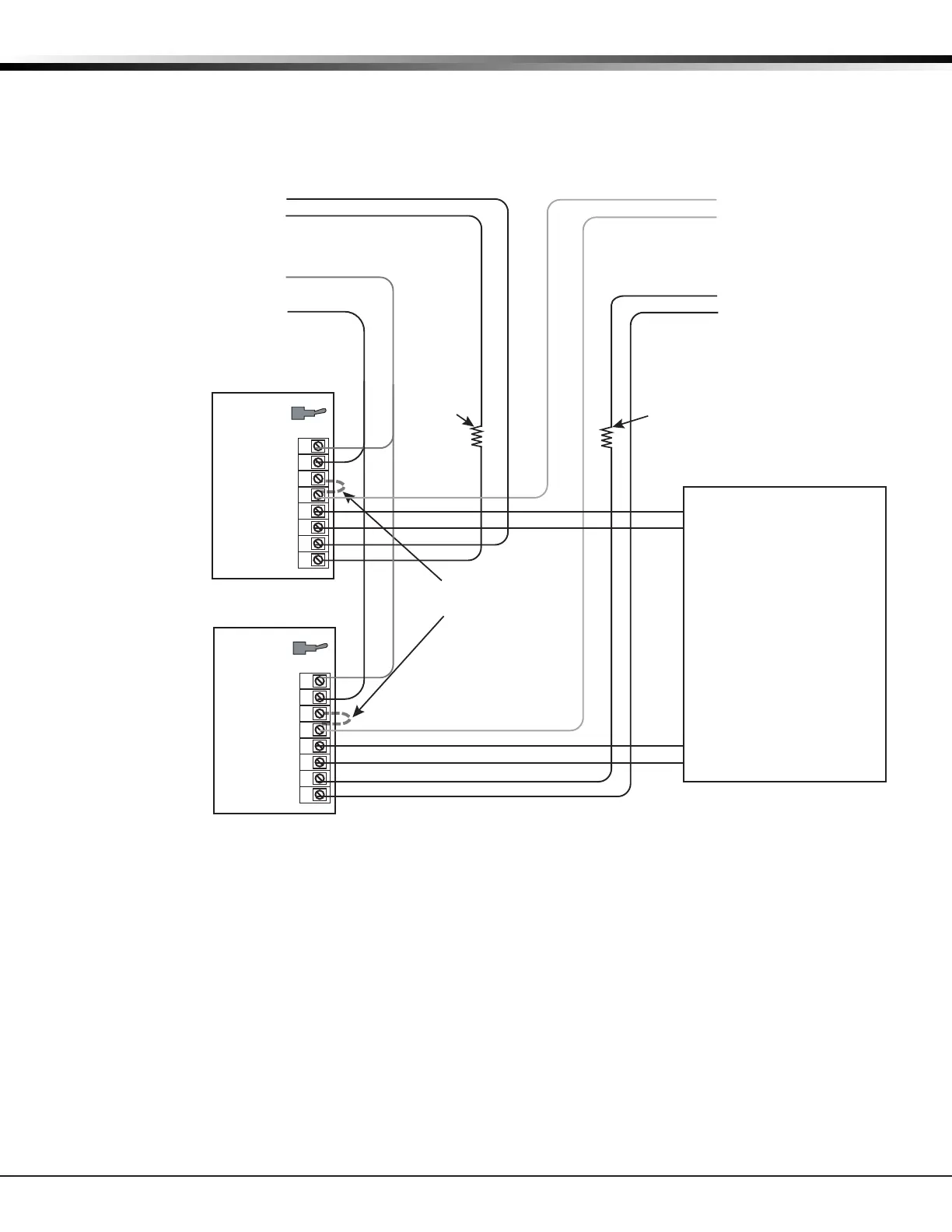

36.1 866 with NAC Extender
Model 310
1K EOL
Model 310
1K EOL
1 AUX PWR
2 GND
3 Alarm In
4 Bell PWR In
5 Bell Out +
6 Bell Out -
7 Bell Trouble
8 Bell Trouble
Normal/Silence Switch
1 AUX PWR
2 GND
3 Alarm In
4 Bell PWR In
5 Bell Out +
6 Bell Out -
7 Bell Trouble
8 Bell Trouble
Normal/Silence Switch
DMP Model 866
45mA @ 12 VDC
The 866 Notification
Appliance Circuit
Module in alarm draws
up to 31mA through
its Terminal 3 Alarm
Input and 45mA from
its Terminal 1 Aux
Power Input.
See the 866
Installation (LT-0059)
To panel terminal 7
To panel zone
To panel terminal 10
To panel zone
To panel alarm output
The Bell Output programming for Fire type zones must be set to Steady
PowerPath NAC Extender
Models
PS-8
PS-8E
PS-6
PS-6E
See PowerPath installation for
detailed connection
instructions
Note: Terminals 3
and 4 jumper together
to supply Bell Power
from the panel
