WIRING DIAGRAMS
36.22 System Sensor i4 Series Smoke and CO Detectors

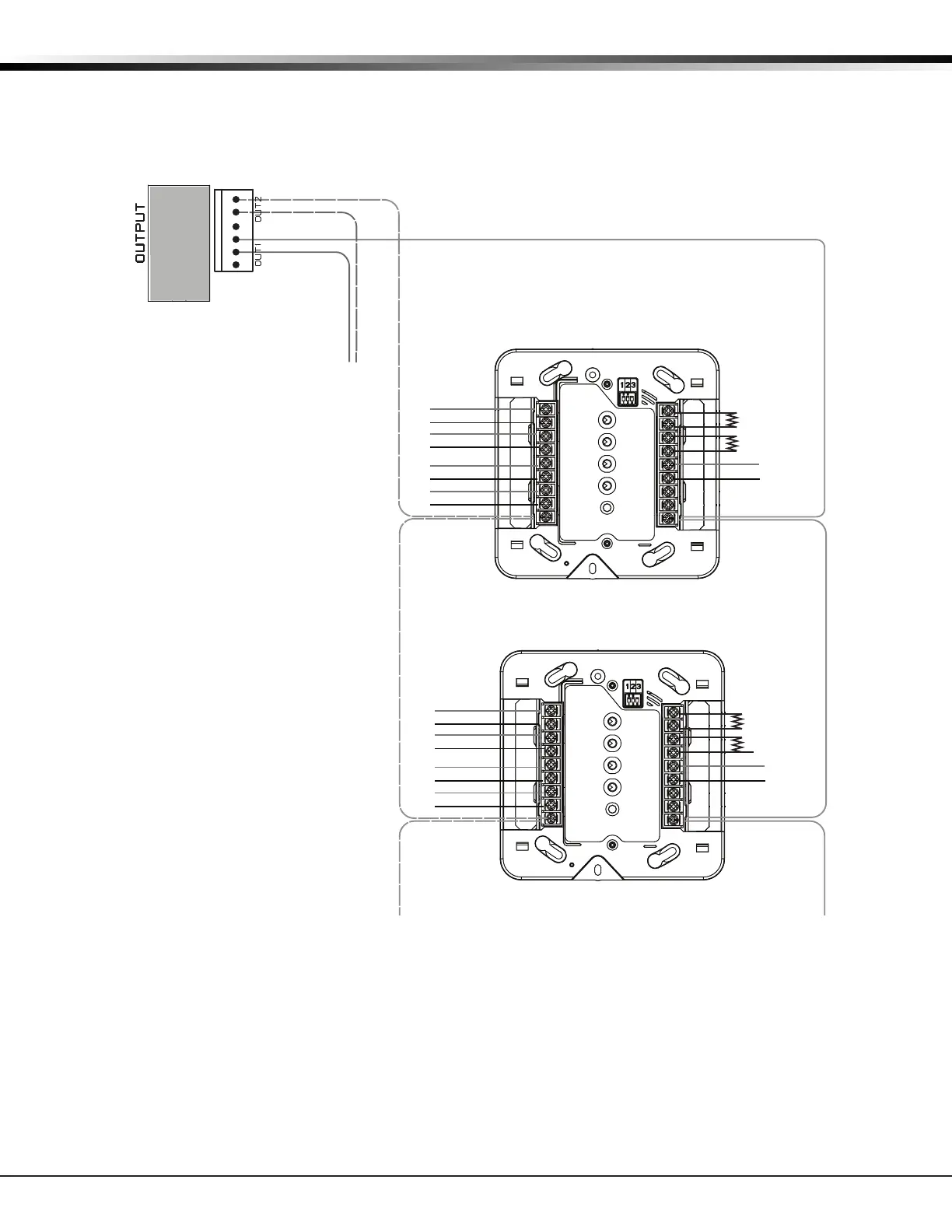

Using Multiple COSMOD2W Modules
Zone EOL
Zone EOL
IDC +
IDC -
COSMOD2W
Power In +
Power In -
Smoke +
Smoke -
Maint +
Maint -
CO Alarm +
CO Alarm -
Zone EOL
Zone EOL
IDC +
IDC -
COSMOD2W
Power In +
Power In -
Smoke +
Smoke -
Maint +
Maint -
CO Alarm +
CO Alarm -
If installing multiple COSMOD2W Interface
modules, connect the Bell In terminal to a N/O
relay output to turn on ALL COSMOD2W smoke
detector sounders during a fire alarm. Connect
the Output Common to the panel SMK or
optional Power Supply positive terminal (+). In
Bell Options, program Bell Output for the relay
output number. Program the Bell Output Bell
Action as Temporal (T).
To turn on ALL CO detector sounders installed
on multiple COSMOD2W modules during a CO
alarm, connect the CO Trigger to a N/O relay
output. Connect the Output Common to the
panel SMK or optional Power Supply positive
terminal (+). In Zone Information Alarm Action,
program each COSMOD2W Emergency Zone
(CO Alarm) for the COSMO-2W to turn on the
relay output Steady (STD) when the zone is in a
shorted condition.
To Panel power SMK terminal
or Optional Power Supply
CO Trigger
N/O to CO Trigger
Common
Common
N/O to Bell In
Bell In
CO Trigger
Bell In
Connect the Bell In
terminal in parallel
with a all COSMOD2W
Interface Modules.
Connect the CO Trigger
terminal in parallel with
a all COSMOD2W
Interface Modules.
See i4 Series Interface Module Installation and Maintenance Instructions for additional information.
RELAY
