INTRODUCTION
Installation
4.1 Mounting the Enclosure
The metal enclosure for the XR500 Series must be mounted in a secure, dry place to protect the panel from damage
due to tampering or the elements. It is not necessary to remove the XR500 Series PCB when installing the enclosure.
Figure 2 shows the mounting hole locations for the Model 350/350A Enclosures. Figure 3 shows the Model 341 Kiosk
Enclosure. Figure 4 shows the Model 352X panel cabinet and 352S shelf cabinet for multiple batteries.
The 350A Attack Resistant enclosure is factory shipped with one knockout on the top left of the enclosure. As
needed, additional knockouts or antenna exits may be added at the time of installation. See Figure 2 for the
positions on the enclosure that can be added. Each additional knockout must be lled with conduit.
Note: When using the XR500 Series panel for listed applications, use the Model 350, 349, 341, or 352S enclosure for
standby batteries. When using the 352X or 352S in listed applications, the enclosure must be surface mounted
on the wall.
Enclosure Mounting Holes
3-Hole
Pattern for
Accessory
Modules
Front and
Rear Tamper
Switches for
350A Attack
Resistant
Enclosure
Dual 1 3/4" and 1 3/8" Conduit Knockouts
Battery Shelf holds up to three 7 Ah Batteries
* 350A Optional Knockout
*
*
*
*
*
R
L
X
OVC
Link LED
Activity LED
J6
Interface
Card
Expansion
Connector
XR500 Series Panel
AC
12345678 10 11 12 13 14 15 16 17 18 199202122232425262728
+B BELL GND SMK GNDRED YEL GRN BLKZ1Z2Z3Z4Z5Z6Z7Z8 Z9+ Z9– Z10+ Z10–AC –B GND GND GNDGND
K6 K7
Output 1Output 2
J3
Phone Line
J10
J22
LX-Bus
Battery
Start
J23
J21
RS-232
Power
LED
J8
PROG
J4
Tamper
J16
Reset
Out1 Out2
Outputs 3-6
J11
3
4
5
6
J2
J1
Ethernet

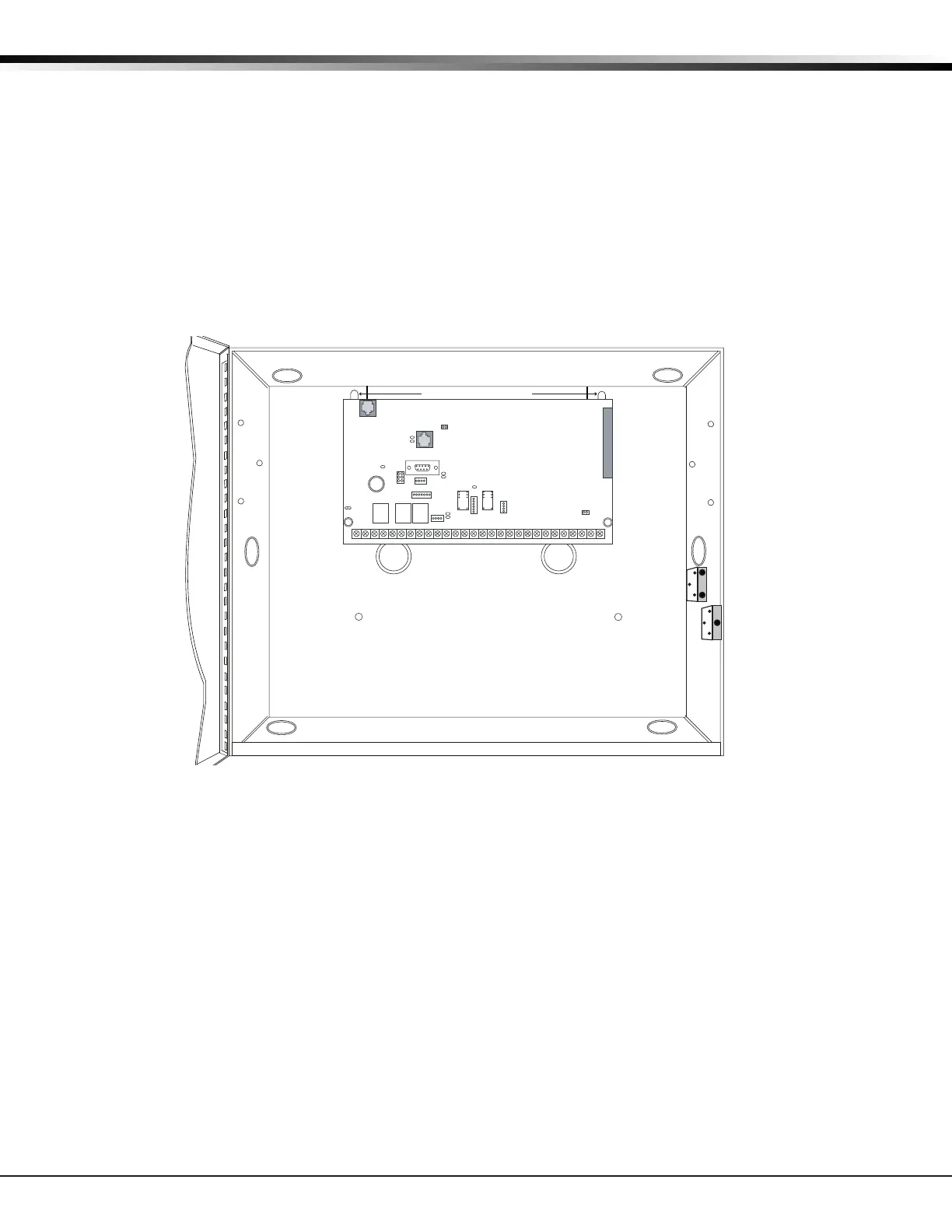

Figure 2: XR500 Series in Model 350 or 350A Enclosure
