XR500 Series Installation Guide Digital Monitoring Products
51
WIRING DIAGRAMS

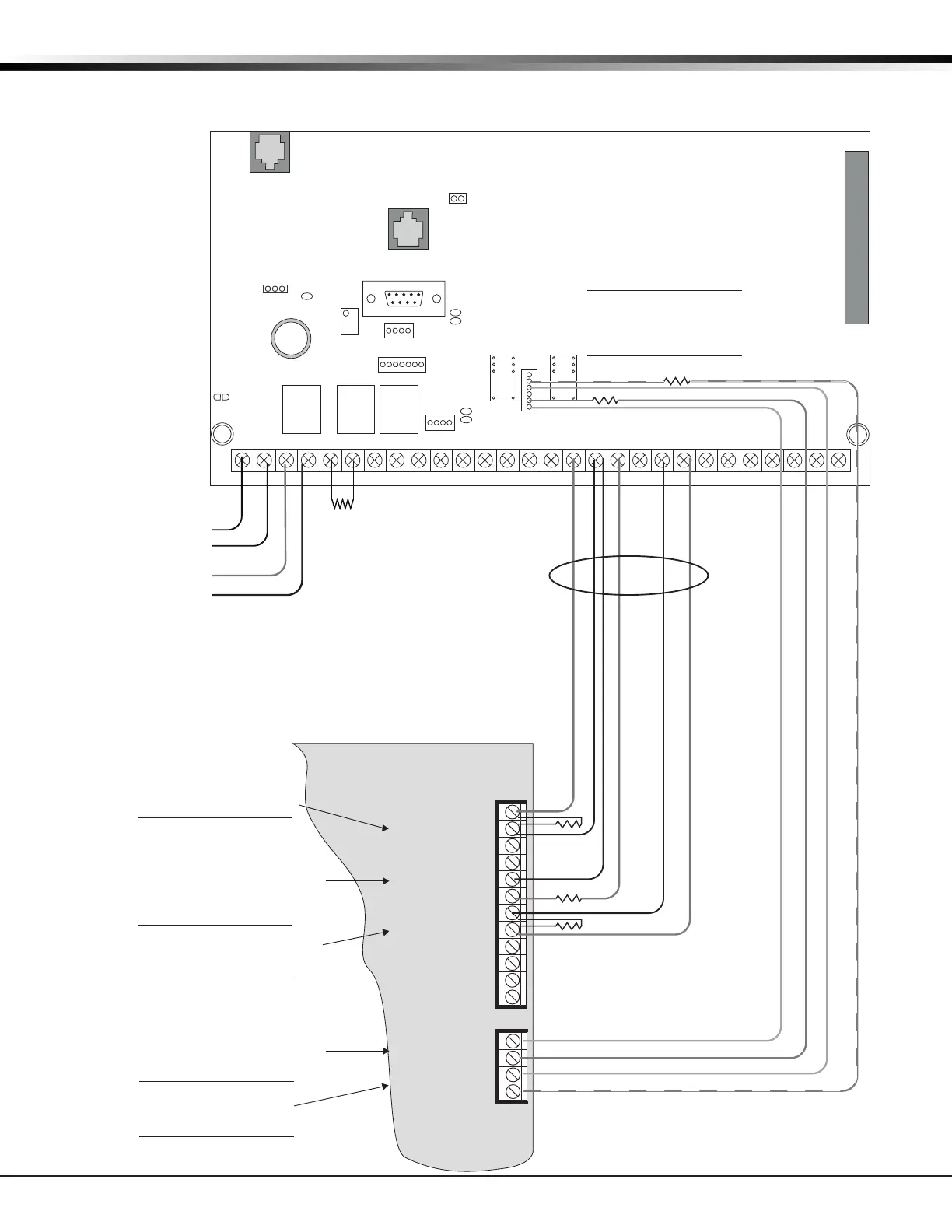

36.13 Panel Slave Communicator for FACP using Outputs
Main Fire Alarm
Control Panel (FACP)
{
{
{
{
{
Normally Open
Common
Normally Closed
Normally Open
Normally Open
Common
Common
Normally Closed
Normally Closed
Normally Open
Common
Normally Closed
FACP Zone Input
FACP Zone Input
Fire Alarm
Form C alarm contacts activate
short on General Fire Alarm.
General Trouble
Form C trouble contacts activate
open on General Trouble.
General Trouble must not be
used to indicate AC power fail
unless it can be delayed at least
1 hour.
Supervisory
Form C contacts activate short on
Supervisory condition.
Communication Fail
Output 1 must be programmed
as a Comm Fail output in Output
Options.
Fire Trouble
Output 2 must be programmed
as a Fire Trouble output in
Output Options.
Communication Fail
Program FACP Zone Input to
indicate a communication trouble
locally.
Fire Trouble
Program FACP Zone Input to
indicate a trouble locally.
AC
12345678 10 11 12 13 14 15 16 17 18 19
02122232425262728
+B BELL GND SMK GNDRED YEL GRN BLKZ1Z2Z3Z4Z5Z6Z7Z8 Z9+ Z9- Z10+ Z10-AC -B GND GND GNDGND
K6 K7
Output 1
Output 2
J3
Phone Line
J10
J22
LX-Bus
Battery
Start
J23
J21
RS-232
Power LED
J8
PROG
J4
Tamper
Out2Out1
J2
J1
Ethernet
Standy
Batteries
XR500 Series
Command Processor™ Panel
Model 311
1K EOL
Program at least one Device in Device Setup as a Fire Type although a keypad is
not actually connected.
Program for Fire Protective Signaling communication to the Central Station.
Program Fire Alarm zone as type FI and set Fire Panel Slave Input option as YES.
Program General Trouble zone as type FI.
Program Supervisory zone as type SV and set the Latch Supervisory option in
System Options as NO.
FACP EOL
FACP EOL
To 322/323/324/324P
transformer
Must be connected
to same circuit
as FACP
1.0k Ohm
1k Ohm EOL
1.0k Ohm
Zone 3
Zone 4
Zone 6
Slave Communication Trouble
Slave General Fire Trouble
Program Bell Options
fire type as None.
Must be
installed
in conduit
and located
within 20 feet.
J12
75VA
50VA
To Next Page
