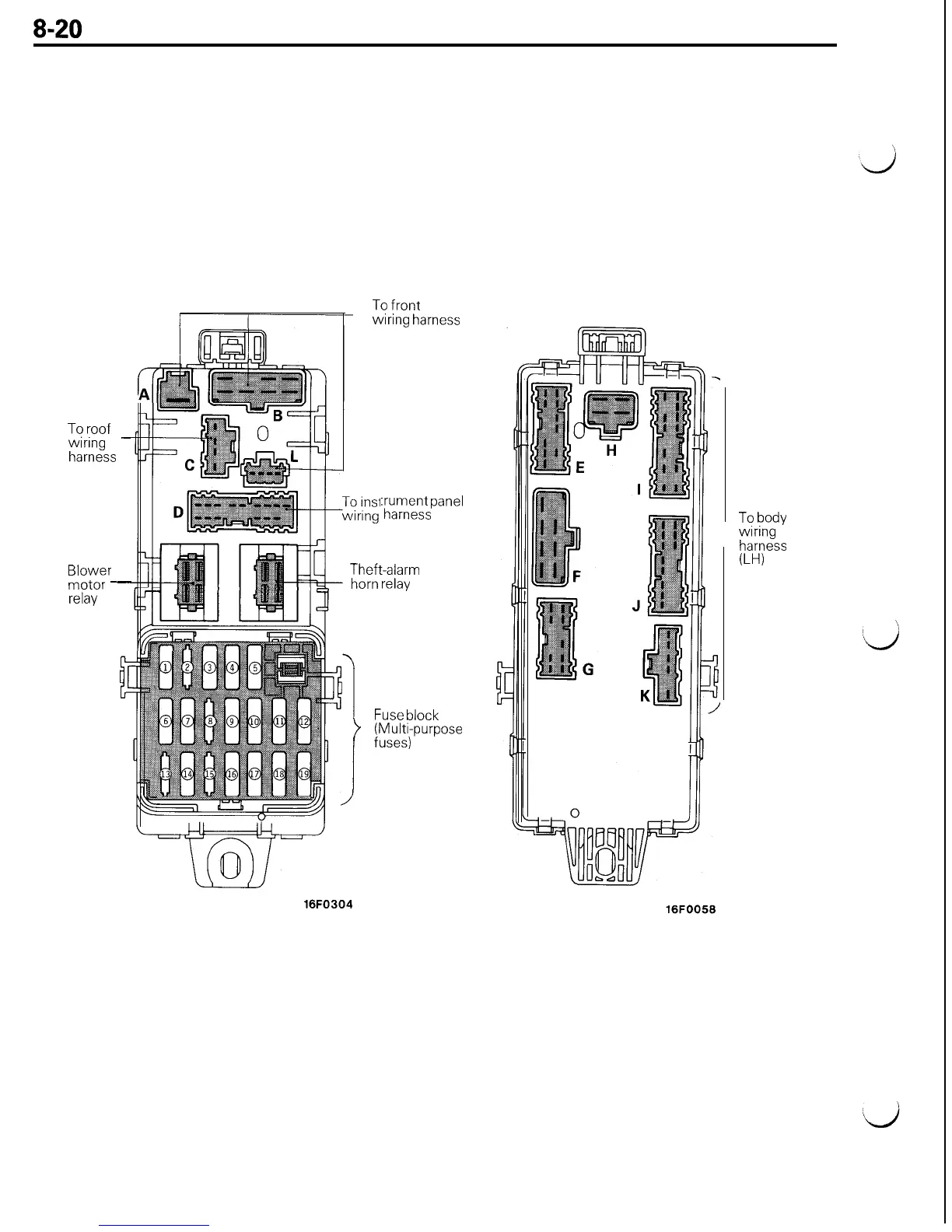

JUNCTION BLOCK

To

roof

wiring

-

harness

Blower

motor

-

relay

Front

Back

To

front

wiring

harness

:rument

panel

harness

Theft-alarm

horn

relay

Fuse

block

(Multi-purpose

fuses)

To

body

wiring

harness

(LHI

16FO304

Table of Contents

Safety Notice2
Table of Contents3
Fusible Link, Fuse and IOD or Storage Connector Location4
Inspection Terminal Location5
Grounding Location6
Relay Location9
Sensor Location12
Control Unit Location17
Solenoid, Solenoid Valve Location19
Diode Location20
Junction Block21
Centralized Junction23
Fusible Link (Relay Box in Engine Compartment)23
Dedicated Fuse24
Multi-Purpose Fuse (in Junction Block)25
Centralized Junction25
Centralized Relay26
Harness Connector Inspection27
Connector Continuity and Voltage Test27
Terminal Engagement Check27
Connector Terminal Engagement and Disengagement27
Round Waterproof Connector28
Rectangular Waterproof Connector29
Injector Connector29
How to Diagnose30
Troubleshooting Steps30
Information for Diagnosis30
Inspection31
Checking Switches32
Checking Relays33
Switch Connection33
Checking Fuses34
Cautions in Event of Blown Fuse34
Checking Cables and Wires35
Handling On-Vehicle Battery35
General Electrical System Checks36
Voltage Check36
Short Circuit Check37
Continuity Check38
Table of Contents39
Configuration Diagrams39
Overall Connection Diagram40
Dash Panel41
How to Read Configuration Diagram41
- Engine Compartment Diagram42
- Engine Hood43
- Engine and Transaxle (SOHC)44
- Front View44
- Engine and Transaxle (DOHC-M/T)46
Engine and Transaxle <DOHC-,VT46
- Engine and Transaxle (DOHC-A/T)48
- Dash Panel50
Instrument Panel and Floor Console52
Interior54
Luggage Compartment56
- Circuit Diagrams57
- Component Location92
- Cooling Circuit120
- Engine Electrical221
- Charging System Specifications222
- Engine Electrical222
- Generator222
  - Charging System Troubleshooting223
  - Circuit Diagram223
  - When Engine Is Stopped225
- Charging System Inspection226
  - Charging System Service Adjustment Procedures226
  - Generator Output Line Voltage Drop Test226
  - Output Current Test227
  - Regulator Voltage Test229
  - Regulator Voltage Table231
  - Generator (DOHC) Removal and Installation232
  - Generator (SOHC) Removal and Installation233
  - Generator Disassembly and Reassembly234
  - Rotor Inspection235
  - Stator Inspection235
  - Brush Replacement236
  - Diode Trio Test236
  - Positive Rectifier Test/Negative Rectifier Test236
  - Recitifiers Inspection236
- General Specifications238
- Service Specifications238
  - Starting System Specifications238
  - Starting System Troubleshooting239
  - Hold-In Test of Magnetic Switch242
  - Pinion Gap Adjustment242
  - Pull-In Test of Magnetic Switch242
  - Starter Motor Removal and Installation242
  - Free Running Test243
  - Return Test of Magnetic Switch243
  - Starter Relay243
  - Starter Motor Disassembly and Reassembly244
  - Checking the Commutator246
  - Cleaning Starter Motor Parts246
  - Starter Motor Inspection246
  - Brush Holder Check247
  - Overrunning Clutch Check247
  - Replacement of Brushes and Springs247
  - Testing Armator for Grounding248
  - Testing Armature for Short-Circuit248
  - Ignition System Specifications249
  - Ignition System Troubleshooting251
  - High Tension Cable Spark Test254
  - Ignition System Service Adjustment Procedures254
  - Spark Plug Cable Test254
  - Spark Plug Test254
  - Ignition System Removal and Installation255
  - Ignition Coil Check256
  - Ignition Power Transistor256
  - Spark Plug Inspection256
  - Ignition Power Transistor Inspection260
  - Ignition Coil Inspection261
  - Distributor Disassembly and Reassembly264
  - Chassis Electrical265
  - Battery Specifications267
  - Battery Visual Inspection267
- Service Adjustment Procedures267
  - Battery Charging268
  - Chassis Electrical268
  - Battery Test269
  - Ignition Switch Removal and Installation270
  - Removal of Steering Wheel270
  - Ignition Switch Inspection271
  - Installation of Column Switch and Clock Spring Assembly272
- General Specifications273
- Meters and Gauges Specifications273
- Service Specifications275
  - Engine Coolant Temperature Gauge276
  - Fuel Gauge276
  - Meters and Gauges Troubleshooting276
  - Oil Pressure Gauge276
  - Meter and Gauges Circuit277
  - Warning Light Circuit279
  - Speedometer Inspection281
  - Fuel Gauge Simple Inspection282
  - Tachometer Inspection282
  - Fuel Gauge Unit Inspection283
  - Fuel Sensor Inspection283
  - Egnine Coolant Temperature Gauge Unit Inspection284
  - Engine Coolant Temperature Gauge Simple Inspection284
  - Oil Pressure Gauge Simple Inspection285
  - Voltage Gauge Simple Test285
  - Combination Meters Removal and Inspection286
  - Combination Meters Disassembly and Reassembly287
  - Fuel Gauge Inspection287
  - Speed Sensor Inspection287
  - Combination Gauges Removal and Installation288
  - Engine Coolant Temperature Gauge Inspection288
  - Oil Pressure Gauge Inspection288
  - Pressure Gauge Inspection288
  - Lighting System Specifications290
  - Lighting System Troubleshooting291
  - Lighting System Components Location305
  - Headlights on Operation306
  - High-Beam Indicator Light306
  - Light Automatic Shut-Off System306
  - Input Signal308
  - Fog Light Circuit309
  - Fog Light Operation311
  - Fog Light Component Location312
  - Fog Light Troubleshooting312
  - Tail Light, Parking/Side Marker Light and License Plate Light Circuit313
  - Tail Light, Parking/Side Marker Light/License Light Troubleshooting317
  - Dome Light, Foot Light and Ignition Key Cylinder Illumination318
  - Door Light and Luggage Compartment Light Circuit321
  - Glove Box Light, Vanity Mirror Light and Inspection Light Circuit322
  - Back-Up Light Circuit323
  - Turn-Signal Light and Hazard Light Circuit324
  - Turn-Signal Light and Hazard Lights Troubleshooting326
  - Hazard-Warning Lights Troubleshooting329
  - Turn-Signal Light, Hazard Light and Stop Light Circuit330
  - Stop Light Circuit333
  - Headlight Aiming334
- Service Adjustment Procedures334
  - Luminous Intensity Measurement335
  - Visual Headlight Adjustment335
  - Bulb Replacement336
  - Fog Light Aiming336
  - Fog Light Removal and Installation337
  - Headlight Removal and Installation337
  - Front Combination Light Removal and Installation338
  - Rear Combination Light Removal and Installation339
  - High Mounted Stop Light Removal and Installation340
  - Relay Inspection340
  - Light Automatic Shut-Off Unit341
  - Upper Beam Relay341
  - Fog Light Switch Removal and Installation342
  - Hazard Switch Inspection343
  - Rheostat Inspection343
  - Column Switch Specifications344
- General Specifications344
  - Column Switch Removal and Installation345
  - Installation of Steering Wheel347
  - Wiper and Washer System Specifications348
- Service Specifications349
  - Windshield Wiper and Washer Circuit Troubleshooting350
  - Data Link Connector351
  - Rear Wiper and Washer Circuit Troubleshooting354
  - Rear Wiper and Washer Circuit Diagram355
  - Windshield Wiper and Washer Removal and Istallation356
  - Column Switch Inspection357
  - Wiper Motor Inspection357
  - Wiper Motor Removal357
  - Inspection of Wiper Relay (Built-In Column Switch)358
  - Washer Fluid Level Sensor Inspection358
  - Washer Motor Inspection358
  - Wiper Arm Installation358
  - Rear Wiper and Washer Removal and Installation359
  - Intermittent Wiper Relay361
  - Horn Specifications362
  - Horn Troubleshooting362
  - Horn Circuit Diagram363
  - Horn Switch Removal and Installation364
  - Horn Relay Inspection365
  - Cigarette Lighter Specifications366
  - Cigarette Lighter Troubleshooting366
  - Cigarette Lighter Removal and Installation367
  - Radio and Tape Player Troubleshooting368
- Amplifier370
  - Tape Player Troubleshooting377
  - Troubleshooting Chart377
  - Noise Appears at Certain Places When Traveling (AM)378
  - Noise Appears at Certain Places When Traveling (FM)379
- Radio and Tape Player379
  - Mixed with Noise, Only at Night (AM)380
  - Broadcasts Can be Heard but both am and FM Have a Lot of Noise381
  - There Is more Noise Either on am or on FM382
  - There Is Noise When Starting the Engine383
  - Noise Suppression Parts Mounting Positions384
  - Some Noise Appears When There Is Vibration or Shocks During Traveling385
  - Noise Sometimes Appears on FM During Traveling386
  - Ever-Present Noise387
  - No Power Is Supplied When the Switch Is Set to on (Radio)387
  - No Sound from One Speaker387
  - Radio Troubleshooting387
  - Insufficient Sensitivity389
  - Distortion on am or on both am and FM390
  - Insufficient Memory (Preset Stations Are Erased)391
  - Too few Automatic Select Stations391
  - Cassette Tape will Not be Inserted392
  - No Sound (Even after a Tape Has Been Inserted)392
  - Cassette Tape will Not Eject394
  - Sound Quality Is Poor, or Sound Is Weak394
  - Automatic Search Does Not Work395
  - Uneven Revolution. Tape Speed Is Fast or Slow395
- Faulty Auto Reverse396
- Tape Gets Caught in Mechanism396
  - CD Player Troubleshooting397
  - CD will Not be Accepted397
- CD Sound Skips398
- No Sound398
- CD will Not be Ejected399
- No Sound from One Speaker399
  - Sound Quality Is Poor (CD)399
  - Motor Antenna Troubleshooting400
  - Motor Antenna Won’t Extend or Retract400
- Motor Antenna Extends and Retracts but Does Not Receive401
  - Radio and Tape Player Removal and Installation402
  - Radio Remote Control Removal and Installation402
  - Door Speaker Removal and Installation403
  - Rear Speaker Removal and Isntallation403
  - Motor Antenna, Antenna Feeder Cable, Amplifier Removal/Installation404
  - Rear Seat Cushion Removal and Installation405
- Whip Antenna . Antenna Feeder Cable405
  - CD Auto Changer Removal and Installation407
  - Rear Window Defogger408
  - Rear Window Defogger Troubleshooting409
- Rear Window Defogger Switch412
  - The Printed-Heater Lines Check and Repair412
  - Defogger Relay Inspection413
- Special Tool413
- System (Srs)413
- Theft-Alarm System413
- Theft-Alarm System Troubleshooting414
- Theft-Alarm System Component Location418
- Theft-Alarm System - Checking the Input420
- ETACS Power-Supply and Ground Circuits423
- Key-Reminder Switch Input Circuit423
- Hood Switch Input Circuit424
- Door Switch Input Circuit424
- Door Lock Actuator Switch Input Circuit425
- Door Key Cylinder Unlock and Liftgate Cylinder Circuit426
- Liftgate Switch Input Circuit427
- Security Light Activation Circuit428
- Horn Relay Power-Supply Circuit428
- Horn Activation Circuit429
- Theft Alarm Horn Relay Power-Supply Circuit429
- Theft Alarm Horn Activation Circuit430
- Headlight Power-Supply Circuit430
- Headlight Activation Circuit431
- Starter Relay Activation Circuit431

Related product manuals

Dodge 2005 Stratus Coupe

Dodge 18693 Stratus Coupe

Preview: Dodge Ram SRT10

Dodge Ram SRT10

Preview: Dodge SRT Hellcat

Dodge SRT Hellcat

Preview: Dodge Sprinter 2009

Dodge Sprinter 2009

Preview: Dodge 2007 Sprinter

Dodge 2007 Sprinter

Preview: Dodge Sprinter 2500

Dodge Sprinter 2500

Preview: Dodge Sprinter 2006

Dodge Sprinter 2006

Preview: Dodge 2006 Sprinter

Dodge 2006 Sprinter

Preview: Dodge 2005 Sprinter

Dodge 2005 Sprinter

Preview: Dodge 2015 Viper SRT

Dodge 2015 Viper SRT

Dodge 2013 SRT Viper
