CHASSIS ELECTRICAL
-
Lighting System

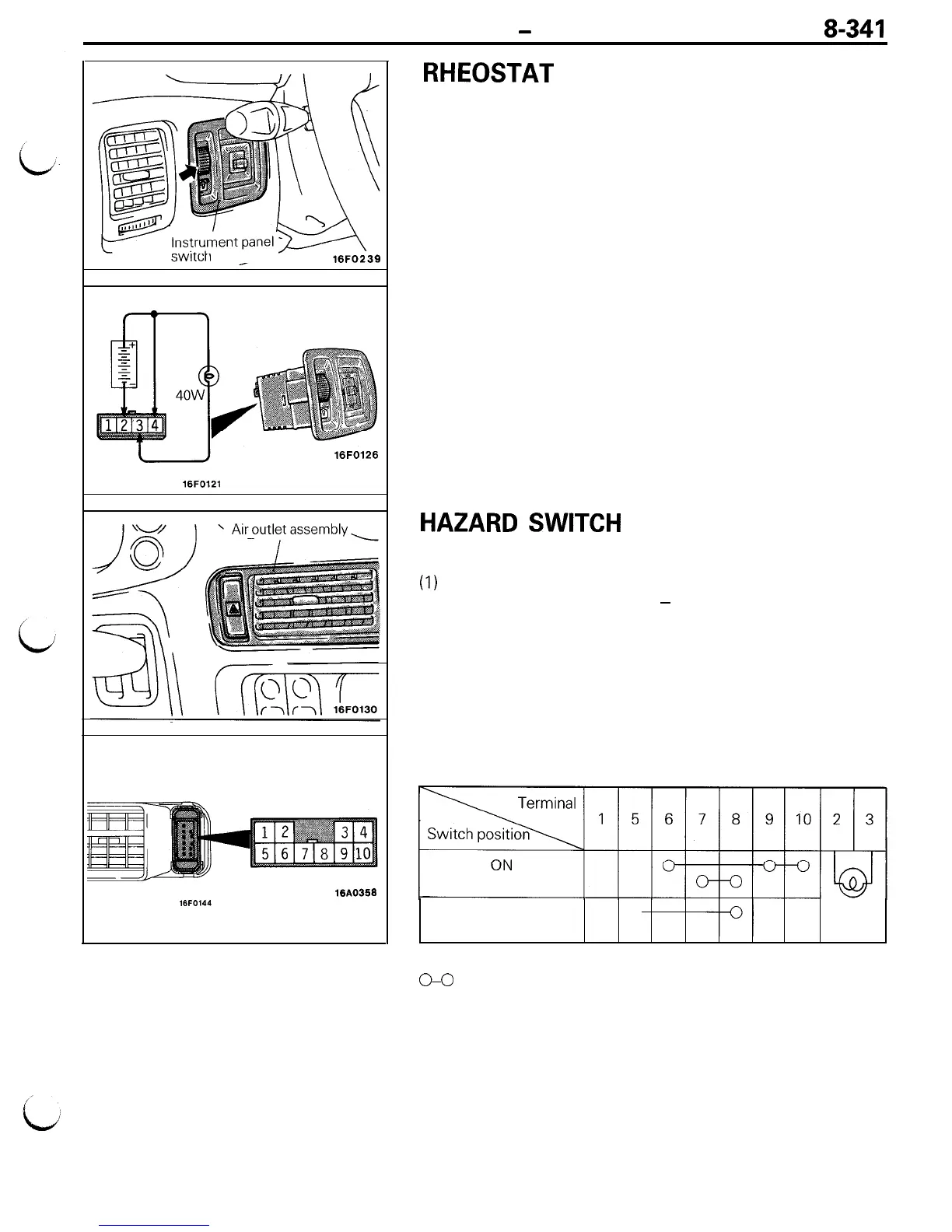

RHEOSTAT
8-341
16FO239
16FO126
16FO121
16A0358
lSFO144
INSPECTION
(1) Remove the instrument panel switch from the knee
protector.
(2) Connect the battery and a test bulb (40W) as shown in the
figure.
(3) The function of the rheostat is normal if the intensity of
illumination changes smoothly, without flashing or flicker-
ing, when the rheostat is operated.
HAZARD
SWITCH
INSPECTION
(1)
Remove the center air outlet assembly from instrument
panel. [Refer to GROUP 24
-
VENTILATORS (Instrument
Panel).]
(2) Operate the switch to check for continuity between
terminals.
OFF
0
Illumina-
tion light
NOTE
0-O
indicates that there is continuity between the terminals.
